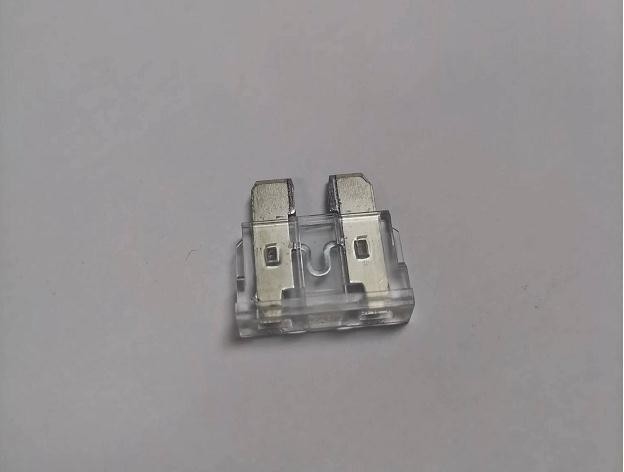

Product Details:
|
| Rated Voltage: | 32VDC | Rated Cirrent: | 25A |
|---|---|---|---|
| Characteristic: | Fast Acting Fuse | Breaking Capacity: | DC1000A |
| Meet The Requirement: | UL248 | Color: | Clear |
| High Light: | Clear Automotive Blade Fuses,Automotive Blade Fuses 25A,UL248 Fast Acting Fuses |
||
Rated voltage: DC32V
Rated current: 25A
Breaking capacity: DC1000A
Characteristic:Fast-acting
The executive standard is UL248, UL certification number: E343461
Conform to EU and China RoHS directives
|
Model
|
Product code
|
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment
|
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
Notice:Choose the right product code according to the Rated Current.
