Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Voltage: | 1000VDC | Rated Current: | 80A |
| Breaking Capacity: | AC100KA、DC20KA | Meet The Requirements: | IEC60269、JASO-D622、UL248、RoHS |
| High Light: | 80amp Ceramic Fuse,1000VDC Ceramic Fuse,HEV Protection Automotive Blade Fuses |
||

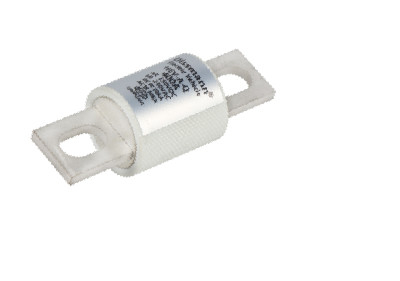

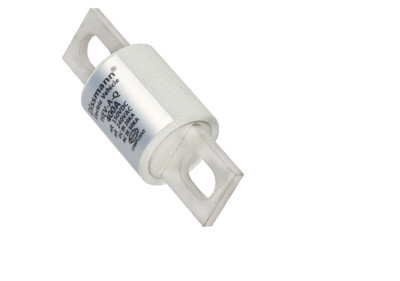

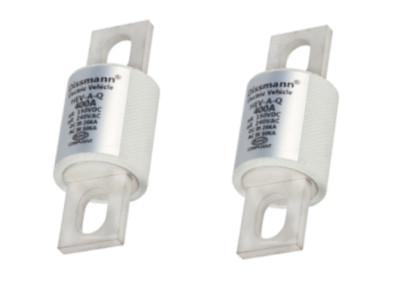

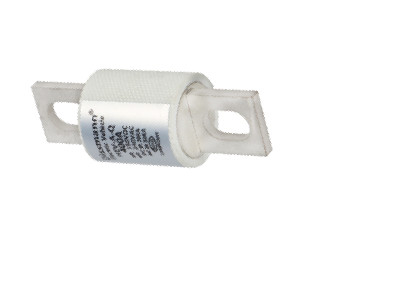

80amp fuse main use for EV battery protection
1.Application of EV battery fuse
This series of fuses are suitable for rated voltage of 1000VDC,rated current of 10A-800A,and breaking capacity of AC100KA/DC20KA with small size,high breaking capacity, temperature shock resistance, current shock, mechanical vibration and shock, chemical load resistance and other characteristics.It is suitable for car battery, high-voltage circuit, on-board charger, and auxiliary equipment,EV,PHEV,Manual service disconnect,HEV,FCV,Battery circuit for motor,drive,Automotive,Security,Industrial,Lighting,Medical,Home Appliance,Information Communication.
2.Structure of EV series fuse
The melting tube of this HRC fuse is composed of high temperature resistant ceramic material,with high flame retardant performance and strong hardness.The melt is sealed in the melting tube with a varible cross-section melt made of 99.99% pure silver.The melting tube is filled with chemically treated high-purity quartz sand and specially treated chemical materials as arc extinguishing medium.The contact surface is silver plated to ensure reliable electrical performance,greetly reducing temperature rise and power consumption;Both ends of the melt are firmly connected with the contact by spot welding,which greatly enhance the safety and reliability of breaking short circuit fault current.
3.Dimension of the EV series fuse,Choose the fuse size according to the rated current.
| Model | Dimension code | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-J-Q | VJ1 | 116 | 30.4 | 75.5 | 97 | 9 | 25 | 4 | 13 |
| VJ2 | 139.75 | 37.3 | 75.75 | 108.75 | 11 | 25 | 6 | 15 | |
| VJ3-1 | 148 | 53.5 | 90.1 | 117.9 | 12.5 | 40 | 8 | 20 | |
| VJ3-2 | 173 | 53.5 | 114.7 | 143 | 12.5 | 40 | 6 | 20 |
Advantage
With an extremely short trip time, a low l2t value, and voltage rating reaching up to 800 V, Conquer's power fuses offer optimal protection against overload and short-circuit events in high power AC and DC circuits. Each fuse is composed of an ultra-strong ceramic tube filled with high purity silica sand, increasing reliability and enhancing electric arc quenching capabilities. Conquer's fast-acting, highly durable power fuses are ideal for use in applications with sensitive internal components, including PV systems and electric vehicle battery chargers.
