Product Details:
|
| Rated Voltage: | 32VDC | Rated Cirrent: | 15A |
|---|---|---|---|
| Characteristic: | Fast Acting Fuse | Breaking Capacity: | DC1000A |
| Meet The Requirement: | UL248、ISO8820、RoHS | Application: | Applicable To The Internal Branch Protection Of Automobile Electrical Appliances |
| High Light: | ISO8820 Approved Automotive Blade Fuses,DC32V Fast Acting Fuses,15A Fast Acting Fuses |
||

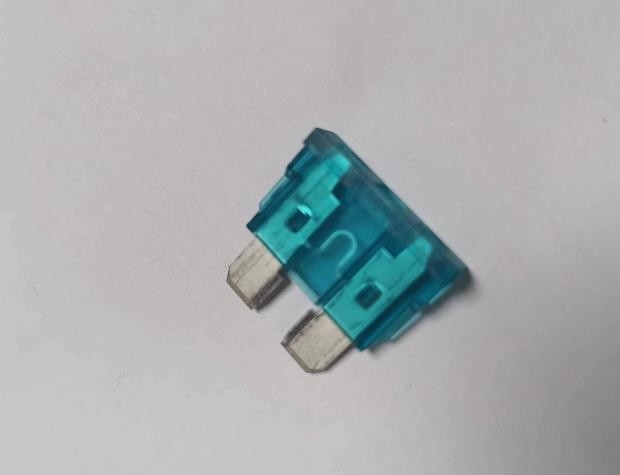

Product basic information Medium plug-in automobile fuse
Rated voltage: 32VDC
Rated current: 1~40A
Breaking capacity: DC1000A
Conform to EU and China RoHS directives
The executive standard is UL248, UL certification number: E343461
|
Model 型号 |
Product code 产品代码 |
Rated current 额定电流 A |
I²t (A²Sec) |
Voltage drop 电压降 mV |
Pigment 颜色 |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | 黑色(Black) |
| DFN-A-2 | 2 | 1.5 | 140 | 灰色(Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | 浅紫色(Violet) | |
| DFN-A-4 | 4 | 13 | 135 | 粉红色(Pink) | |
| DFN-A-5 | 5 | 25 | 125 | 浅棕色(Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | 棕色(Brown) | |
| DFN-A-10 | 10 | 110 | 110 | 红色(Red) | |
| DFN-A-15 | 15 | 295 | 102 | 蓝色(Blue) | |
| DFN-A-20 | 20 | 480 | 96 | 黄色(Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | 透明色(Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | 绿色(Green) | |
| DFN-A-35 | 35 | 2205 | 88 | 深绿色(Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | 橙色(Orange) |
