Product Details:
|
| Rated Voltage: | 32VDC | Rated Cirrent: | 40A |
|---|---|---|---|
| Characteristic: | Time-lag | Breaking Capacity: | DC2700A |
| Meet The Requirement: | UL248-13、ISO8820、JAS0-D622、RoHS | Color: | Black |
| High Light: | JAS0-D622 Automotive Blade Fuse,Flat Plug Automotive Blade Fuse,40A Time Lag Fuse |
||

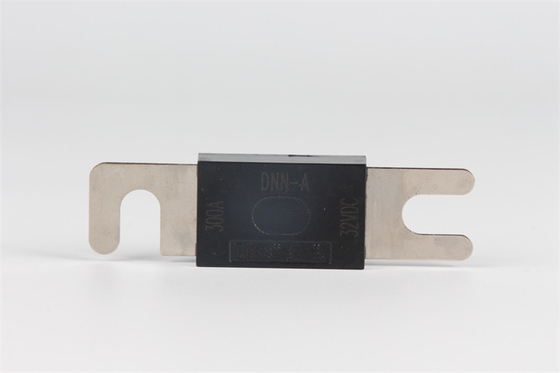

Flat plug type automobile fuse
Rated voltage: 32VDC
Rated current: 35A-500A
Body material: PBT
Conformity certification: UL
Reference drawing for ampere size less than or equal to 275A
Reference diagram of ampere size greater than or equal to 300A
|
Model |
Product code |
Rated current A |
Installation requirement |
| DNN-A | DNN-A-35 | 35 |
Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-A-40 | 40 | ||
| DNN-A-50 | 50 | ||
| DNN-A-60 | 60 | ||
| DNN-A-80 | 80 | ||
| DNN-A-100 | 100 | ||
| DNN-A-125 | 125 | ||
| DNN-A-130 | 130 | ||
| DNN-A-150 | 150 | ||
| DNN-A-175 | 175 | ||
| DNN-A-200 | 200 | ||
| DNN-A-225 | 225 | ||
| DNN-A-250 | 250 | ||
| DNN-A-275 | 275 | ||
| DNN-A-300 | 300 | ||
| DNN-A-325 | 325 | ||
| DNN-A-350 | 350 | ||
| DNN-A-400 | 400 | ||
| DNN-A-425 | 425 | ||
| DNN-A-450 | 450 | ||
| DNN-A-500 | 500 |
| Load(测试电流) | Opening time(熔断时间) | |
| 35A～500A | ||
| 最小时间 min | 最大时间 max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(200A及以下) | 0 | 100 |
| 200%(200A以上) | 0 | 300 |
| 250%(200A及以下) | 0 | 60 |
| 250%(200A以上) | 0.8 | 120 |
| 600% | 0.02 | 10 |
