Product Details:
|
| Rated Voltage: | DC 32V | Rated Cirrent: | 3A |
|---|---|---|---|
| Characteristic: | Fast Acting Fuse | Breaking Capacity: | DC1000A |
| Meet The Requirement: | UL248、ISO8820、RoHS | Advantages: | High Breaking Capacity & Low Power Consumption |
| High Light: | DC 32V Automotive Blade Fuse,Automotive Blade Fuse 3A,Automotive Blade High Breaking Capacity Fuse |
||
Medium plug-in automobile fuse, size and performance conform to UL248
Rated voltage: 32VDC
Rated current: 1~40A
Breaking capacity: DC1000A
Conform to EU and China RoHS directives
The executive standard is UL248, UL certification number: E343461

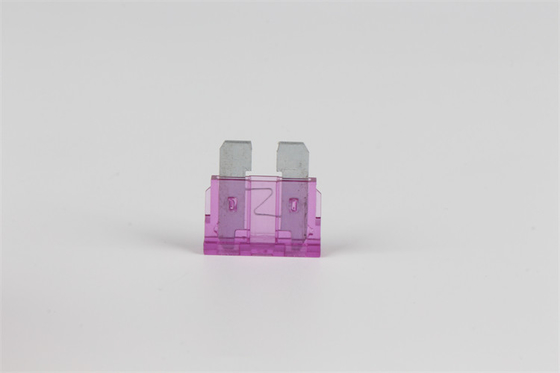

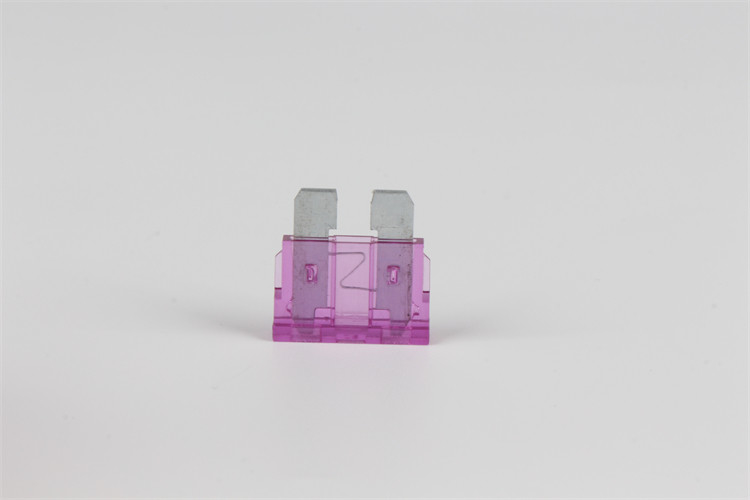

DFN-A Series Automotive Blade Fuses are automotive plug-in fuses with small size, low power consumption and high breaking capacity. It is applicable to the internal branch protection of automobile electrical appliances, UPS, communication power supply short circuit and backup protection. This product has good vibration resistance and flame retardancy.
|
Model
|
Product code
|
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment
|
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
