Product Details:
|
| Rated Voltage: | 32VDC | Rated Cirrent: | 2A |
|---|---|---|---|
| Characteristic: | Fast Acting Fuse | Breaking Capacity: | DC1000A |
| Meet The Requirement: | UL248、ISO8820、RoHS | Application: | Applicable To Short Circuit And Backup Protection Of Communication Power Supply |
| High Light: | UPS Automotive Blade Fuses,2A Automotive Blade Fuses,DC32V Fast Acting fuse |
||
Medium plug-in automobile fuse, size and performance conform to UL248
Rated voltage: 32VDC
Rated current: 1~40A
Breaking capacity: DC1000A
Conform to EU and China RoHS directives
The executive standard is UL248, UL certification number: E343461

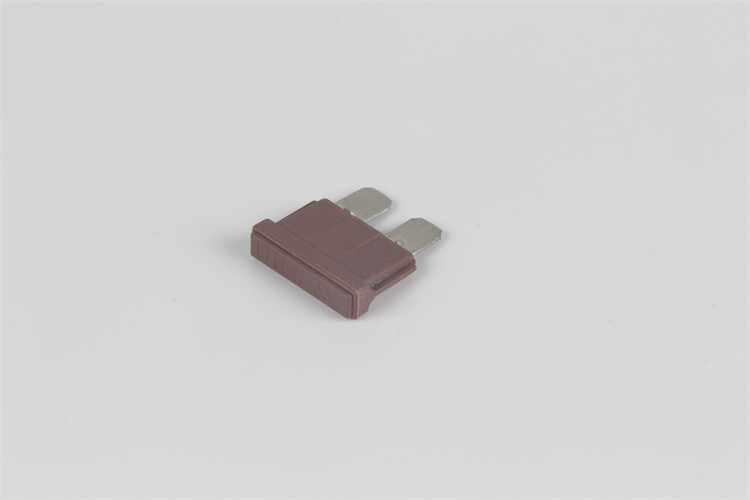

DFN-A Series Automotive Blade Fuses are automotive plug-in fuses with small size, low power consumption and high breaking capacity. It is applicable to the internal branch protection of automobile electrical appliances, UPS, communication power supply short circuit and backup protection. This product has good vibration resistance and flame retardancy.
|
Model
|
Product code
|
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment
|
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
