Product Details:
|
| Material: | Copper Tin Plating,PBT | Rated Current: | 1A-40A |
|---|---|---|---|
| Rated Voltage: | 32VDC | Breaking Capacity: | DC1000A |
| Related Standard: | UL | Characteristic: | F |
| High Light: | Copper Tin Plating Car Blade Fuse,PBT Car Blade Fuse,Copper Tin Plating Automotive Blade Fuses |
||

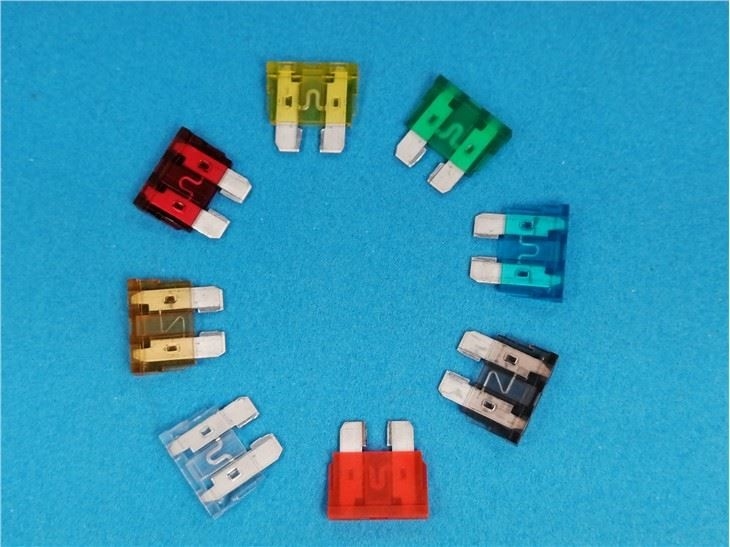

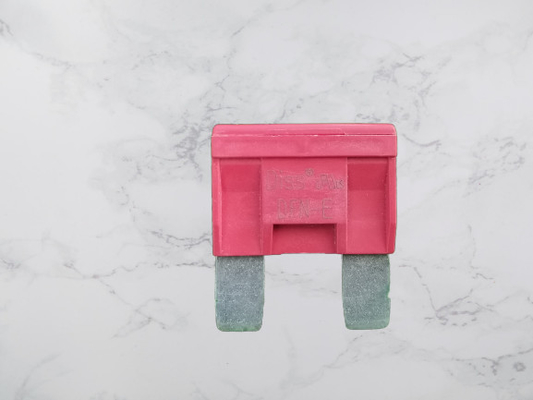

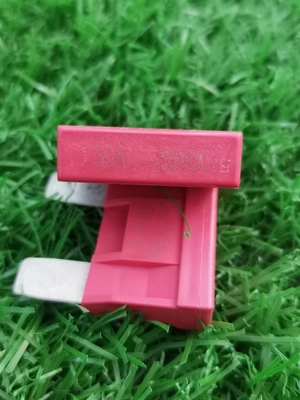

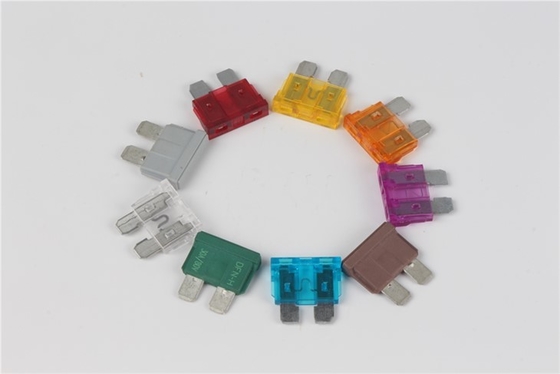

Mini car blade fuse equal to Littelfuse supply in Shenzhen China
Application of the mini car blade fuse
The Mini style automotive blade fuse provides similar electrical characteristics in a smaller package, which is smaller. Micro fuses are used in a variety of low voltage, automotive and electronic applications. An alternative mini-blade fuse design with a three-part construction is provided and can be seen through a blown fuse indicating window. Also available are other mini automatic fuse designs that are available for direct hole PCB soldering and lower configuration designs. They are color coded for amperage recognition. The car Mini fuse performs quickly and offers 32 Volt DC ratings. The mini blade fuse amp rating ranges from 1 to 40 amps. The standard 32-volt Mini car fuse is built according to the UL 248-13 special purpose fuse standard.
Product feature of the mini car blade fuse
Model: DFN
Material: Zin alloy and plastic
Fuse Dimension: 19L × 5.1W × 19H mm.
Related standard:UL
Characteristic:F
Dimension fo the mini car blade fuse
Product type of the car blade fuse,Choose the suitable model according to the rated current
|
Model
|
Product code
|
Rated current
|
I²t (A²Sec) |
Voltage drop
|
Pigment |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
Certificate number of car blade fuse
JDYX2.E343461/
JDYX8.E343461
FAQ
Q1:Are fuses also uesd in foreign-made automobiles?
A:The fuse is used by automakers around the world. Automatic fuse, mini fuse and low -key fuses are under international standards and used in vehicles around the world. Our automatic fuse, mini fuse and configuration fuse are used in vehicles made in Japan and South Korea and other parts of Asia.
