Product Details:
|
| Material: | Fiber Tube | Colour: | White |
|---|---|---|---|
| Breaking Capacity: | DC10KA | Protection Type: | AR |
| Advantage: | Factory Direct Supply Automotive HEV Fuse | Rated Voltage: | 1000VDC |
| Rated Current: | 400A | ||
| High Light: | Fiber Tube High Voltage Automotive Fuses,HEV High Voltage Automotive Fuses,Hybrid Electric Vehicle Fuses |
||

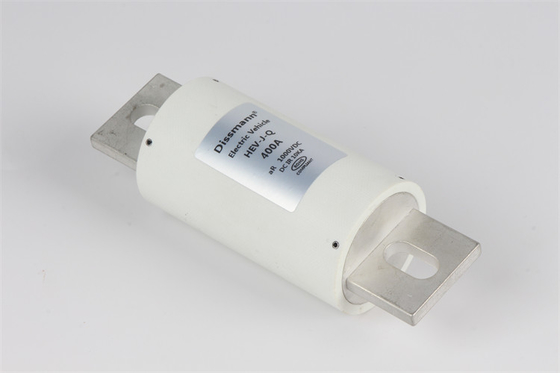

HEV-J-Q-400 Automotive fuse offers rated current 400 A, rated voltage DC1000V, And this high voltage fuse is designed to protect high-voltage accessory circuits in electric and hybrid electric vehicles.
HEV-A-Q Module series fuses offers rated current 5A- 800 A, rated voltage AC/DC1000V. Hybrid Electric Vehicle (HEV) fuses have been tested to automotive quality standards for environmental reliability, transient current cycling, and device electrical and fusing characteristics. They are RoHS compliant and halogen free,and certified UL248-20,ISO8820,JAS0-D622.
Product introduction of the HEV automotive fuse
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HF1 | 124 | 25 | 78 | 100 | 109 | 9 | 18 | 4 | 13.5 |
| HF2 | 117 | 33 | 78 | 93 | 100 | 9 | 22 | 5 | 12.5 |
| HF3 | 139.5 | 38 | 83.5 | 99.5 | 120 | 10.5 | 25 | 6 | 20.7 |
| HF4 | 146.5 | 50 | 89.5 | 106 | 126.5 | 10.5 | 38 | 6 | 20.7 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 33 |
|
Model |
Rated Current A |
I2t(A2s) |
Power dissipation W |
Size code |
Install |
|
| 弧前 | 总 | |||||
| HEV-J-Q-5 | 5A | 20 | 115 | 1.8 | HF1 |
Mounting Bolt M8 recommended torque 11N·m |
| HEV-J-Q-10 | 10A | 30 | 170 | 2.2 | ||
| HEV-J-Q-15 | 15A | 48 | 220 | 3.1 | ||
| HEV-J-Q-20 | 20A | 72 | 360 | 3.6 | ||
| HEV-J-Q-25 | 25A | 85 | 510 | 4.2 | ||
| HEV-J-Q-30 | 30A | 110 | 830 | 5.1 | ||
| HEV-J-Q-35 | 35A | 180 | 1250 | 6.3 | ||
| HEV-J-Q-40 | 40A | 290 | 1650 | 7.8 | ||
| HEV-J-Q-45 | 45A | 350 | 1900 | 8.5 | ||
| HEV-J-Q-50 | 50A | 440 | 2450 | 10.0 | ||
| HEV-J-Q-60 | 60A | 600 | 3500 | 12.5 | ||
| HEV-J-Q-70 | 70A | 820 | 5500 | 14 | ||
| HEV-J-Q-80 | 80A | 1050 | 6500 | 16 | ||
| HEV-J-Q-90 | 90A | 1800 | 10500 | 17 | HF2 | |
| HEV-J-Q-100 | 100A | 2300 | 12000 | 18 | ||
| HEV-J-Q-125 | 125A | 3400 | 21000 | 20 | ||
| HEV-J-Q-150 | 150A | 4900 | 25500 | 27 | ||
| HEV-J-Q-175 | 175A | 9200 | 40000 | 30 | HF3 |
Mounting Bolt M10 recommended torque 20N·m |
| HEV-J-Q-200 | 200A | 15000 | 60000 | 32 | ||
| HEV-J-Q-225 | 225A | 19000 | 105000 | 40 | ||
| HEV-J-Q-250 | 250A | 24000 | 113000 | 47 | ||
| HEV-J-Q-275 | 275A | 25000 | 130000 | 49 | ||
| HEV-J-Q-300 | 300A | 26000 | 160000 | 52 | ||
| HEV-J-Q-325 | 325A | 33000 | 180000 | 55 | ||
| HEV-J-Q-350 | 350A | 42000 | 230000 | 60 | HF4 | |
| HEV-J-Q-400 | 400A | 71000 | 320000 | 65 | ||
| HEV-J-Q-450 | 450A | 78000 | 300000 | 80 | ||
| HEV-J-Q-500 | 500A | 105000 | 350000 | 95 | ||
| HEV-J-Q-600 | 600A | 163000 | 530000 | 105 | HF5 |
Mounting bolt M12 recommended torque 28N·m |
| HEV-J-Q-700 | 700A | 320000 | 680000 | 155 | ||
| HEV-J-Q-800 | 800A | 420000 | 870000 | 185 | ||
