Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Voltage: | 80VDC | Rated Current: | 100A |
| Breaking Capacity: | DC2700A | Meet The Requirements: | IEC60269、JASO-D622、UL248、RoHS |
| Installation: | Available In Bolt | Application: | EV Battery Protection |
| High Light: | Car Battery Fuse,Car Blade Fuse |
||

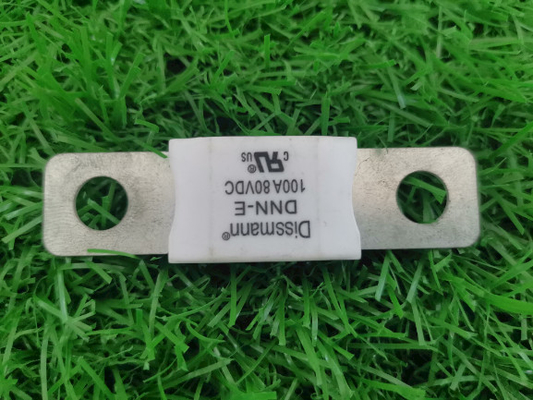

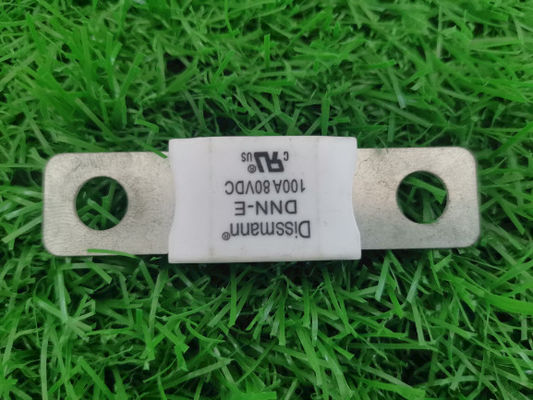

80VDC Car Battery Fuse Equivalent to Bussmann
1.Product features
The Dissmann ceramic car battery fuse has a voltage rating of DC80V,current rating of 100A,and breaking capacity of DC2700A,which have the characteristics of small size, and high reliability.It has a non-transparent ceramic tube body that does not allow breaking or deformation.The copper cap should be firmly riveted to ensure that the copper cap cannot be removed when the fuse link is not damaged. After the sample is immersed in water at 15℃-35℃ for 24 hours and taken out, on each end cap, evenly apply a pulling force to 5N, keep it for 1 minute, the copper cap should not fall off.
2.Electric performances of 80VDC car fuse
| Load | Opening time | |
| 20A/50A/100A | ||
| minimum time | Max time | |
| 100% | 14400s | - |
| 200% | 0 | 100s |
| 600% | 0 | 1s |
3.Dimension of the 80VDC car fuse
FAQ
Question:1.Are fuses also uesd in foreign-made automobiles?
The fuse is used by automakers around the world. Automatic fuse, mini fuse and low -key fuses are under international standards and used in vehicles around the world. Our automatic fuse, mini fuse and configuration fuse are used in vehicles made in Japan and South Korea and other parts of Asia.
