Product Details:
|
| Material: | Fiber Tube | Colour: | White |
|---|---|---|---|
| Breaking Capacity: | DC20KA | Protection Type: | AR |
| Advantage: | High Breaking Capacity And Fast Acting Fuse | Application: | Short Circuit Protection Fuse For Pure Electric Vehicles And Hybrid Electric Vehicles |
| High Light: | AC250V Automotive Fuse,DC150V High Current Automotive Fuses,400A High Current Automotive Fuses |
||

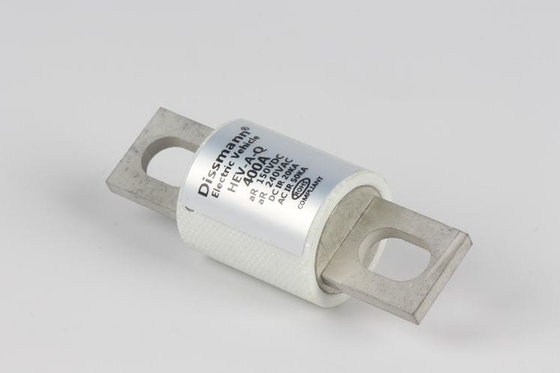

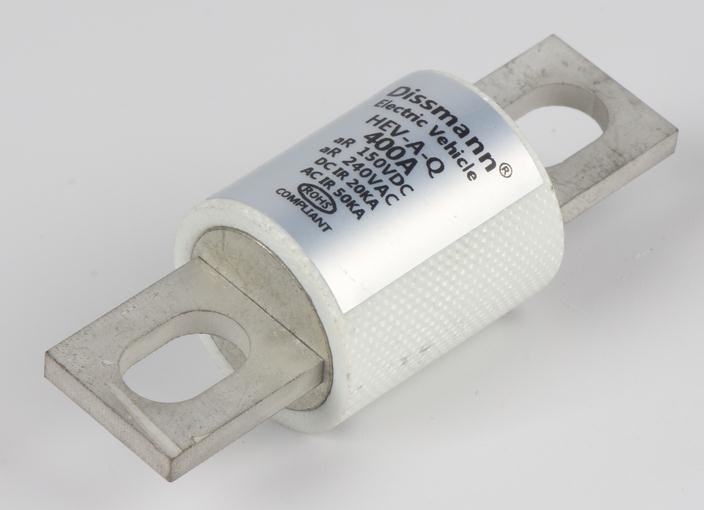

HEV-A-Q-400 Rated current 400A,rated voltage:DC150V AC250V,high breaking capacity is DC20KA
HEV-A-Q Series Automotive fuses are designed to protect high-voltage accessory circuits in electric and hybrid electric vehicles. Offers rated current 5A - 800A, rated voltage AC250V/DC150V.The latest HEV fuses have been tested to automotive quality standards for environmental reliability, transient current cycling, and device electrical and fusing characteristics. They are RoHS compliant and halogen free, and certified UL248-20,ISO8820,JAS0-D622.
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HW1 | 68.2 | 25 | 29 | 44 | 53 | 9 | 18 | 3.3 | 13.5 |
| HW2 | 94 | 38 | 38 | 54 | 74.5 | 10.5 | 25 | 6 | 20.7 |
|
Model |
Rated Current A |
I2t(A2s) |
Power dissipation W |
Size code |
Install |
|
| 弧前 | 总 | |||||
| HEV-A-Q-70 | 70A | 460 | 3920 | 6.8 | HW1 |
Mounting Bolt M8 recommended torque 11N·m |
| HEV-A-Q-80 | 80A | 665 | 5850 | 7.5 | ||
| HEV-A-Q-100 | 100A | 1120 | 11100 | 8.8 | ||
| HEV-A-Q-125 | 125A | 1840 | 17600 | 11.0 | ||
| HEV-A-Q-150 | 150A | 2650 | 25400 | 12.8 | ||
| HEV-A-Q-200 | 200A | 4750 | 44000 | 17.5 | ||
| HEV-A-Q-250 | 250A | 7420 | 68500 | 22.5 | ||
| HEV-A-Q-300 | 300A | 11000 | 99000 | 26.5 | ||
| HEV-A-Q-350 | 350A | 14800 | 139000 | 30.4 | ||
| HEV-A-Q-400 | 400A | 18800 | 180000 | 34.8 | ||
| HEV-A-Q-500 | 500A | 36000 | 110000 | 34.5 | HW2 |
Mounting Bolt M10 recommended torque 20N·m |
| HEV-A-Q-600 | 600A | 43500 | 125000 | 45.6 | ||
| HEV-A-Q-700 | 700A | 68000 | 198000 | 48.5 | ||
| HEV-A-Q-800 | 800A | 86000 | 255000 | 57.0 | ||
| HEV-A-Q-1000 | 1000A | 152000 | 470000 | 59.5 | ||
