Product Details:
|
| Material: | Fiber Tube | Colour: | White |
|---|---|---|---|
| Breaking Capacity: | DC50KA AC100KA | Protection Type: | AR |
| Advantage: | High Breaking Capacity And Fast Acting Fuse | Application: | Short Circuit Protection Fuse For Pure Electric Vehicles And Hybrid Electric Vehicles |
| High Light: | AR Protection High Breaking Capacity Fuse,DC500V High Breaking Capacity Fuse,SCP High Current Automotive Fuses |
||

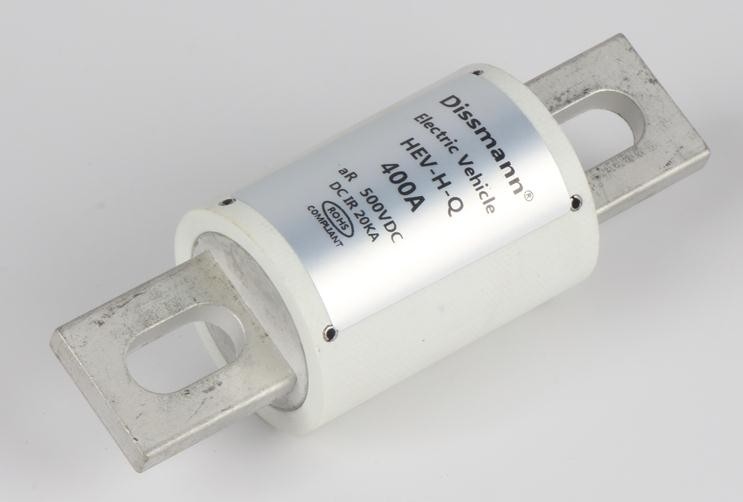

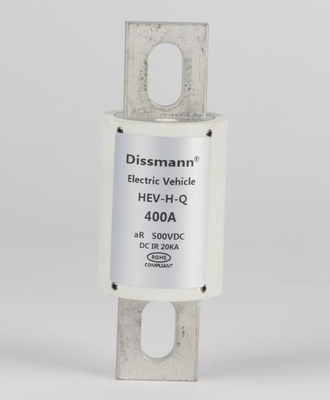

HEV-H-Q-400 Rated current 400A,rated voltage:DC500V,high breaking capacity is DC50KA
HEV-H-Q Series car fuses are designed to protect high-voltage accessory circuits in electric and hybrid electric vehicles. Offers rated current 5A - 800A, rated voltage AC/DC500V.The latest HEV fuses have been tested to automotive quality standards for environmental reliability, transient current cycling, and device electrical and fusing characteristics. They are RoHS compliant and halogen free, and certified UL248-20,ISO8820,JAS0-D622.
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HZ1 | 81 | 22 | 40 | 55 | 66.5 | 9 | 15 | 3.3 | 14.75 |
| HZ2 | 92.2 | 25 | 53 | 68 | 77 | 9 | 18 | 3.2 | 13.5 |
| HZ3 | 92.2 | 33 | 53 | 68 | 75 | 9 | 22 | 5 | 12.5 |
| HZ4 | 109 | 38 | 53 | 69 | 89.5 | 10.5 | 25 | 6 | 20.7 |
| HZ5 | 110 | 50 | 53 | 70.5 | 90 | 10.5 | 38 | 6 | 20.7 |
| HZ6 | 161 | 63 | 53 | 87 | 126 | 13.5 | 50 | 10 | 34 |
| HZ7 | 177 | 76 | 81.5 | 113.5 | 139 | 16 | 60 | 10 | 28.4 |
|
Model |
Rated Current A |
I2t(A2s) |
Power dissipation W |
Size code |
Install |
|
| 弧前 | 总 | |||||
| HEV-H-Q-35 | 35A | 33 | 145 | 8.5 | HZ1 |
Mounting Bolt M8 recommended torque 11N·m |
| HEV-H-Q-40 | 40A | 74 | 315 | 8 | ||
| HEV-H-Q-45 | 45A | 100 | 430 | 8 | ||
| HEV-H-Q-50 | 50A | 130 | 650 | 8.5 | ||
| HEV-H-Q-60 | 60A | 200 | 880 | 10 | ||
| HEV-H-Q-70 | 70A | 210 | 900 | 10.5 | HZ2 | |
| HEV-H-Q-80 | 80A | 300 | 1360 | 12.5 | ||
| HEV-H-Q-90 | 90A | 350 | 1500 | 15.5 | ||
| HEV-H-Q-100 | 100A | 460 | 1950 | 17.5 | ||
| HEV-H-Q-125 | 125A | 750 | 3430 | 26 | HZ3 | |
| HEV-H-Q-150 | 150A | 1000 | 4450 | 31 | ||
| HEV-H-Q-175 | 175A | 1400 | 6100 | 36 | ||
| HEV-H-Q-200 | 200A | 1800 | 8300 | 41 | ||
| HEV-H-Q-225 | 225A | 4600 | 23000 | 39 | HZ4 |
Mounting Bolt M10 recommended torque 20N·m |
| HEV-H-Q-250 | 250A | 6250 | 32100 | 41 | ||
| HEV-H-Q-275 | 275A | 7800 | 40000 | 46 | ||
| HEV-H-Q-300 | 300A | 9600 | 49000 | 52 | ||
| HEV-H-Q-325 | 325A | 13500 | 63000 | 54 | ||
| HEV-H-Q-350 | 350A | 14000 | 72000 | 59 | ||
| HEV-H-Q-400 | 400A | 18500 | 95500 | 66 | ||
| HEV-H-Q-450 | 450A | 24000 | 125000 | 75 | HZ5 | |
| HEV-H-Q-500 | 500A | 28500 | 147000 | 84 | ||
| HEV-H-Q-600 | 600A | 40500 | 203000 | 108 | ||
| HEV-H-Q-700 | 700A | 54000 | 295000 | 122 | HZ6 |
Mounting bolt M12 recommended torque 28N·m |
| HEV-H-Q-800 | 800A | 75000 | 406000 | 130 | ||
| HEV-H-Q-1000 | 1000A | 90000 | 430000 | 146 | HZ7 | |
| HEV-H-Q-1200 | 1200A | 120000 | 590000 | 180 | ||
