Product Details:
|
| Rated Voltage: | 80VDC | Rated Current: | 40A |
|---|---|---|---|
| Type Protection: | Fast-acting | Breaking Capacity: | DC1000A |
| Advantage: | Good Vibration Resistance And Flame Retardancy | Application: | Applicable To The Internal Branch Protection Of Automobile Electrical Appliances |
| High Light: | ISO8820 Fast Acting Fuse,80VDC Automotive Blade Fuse,40A Automotive Blade Fuse |
||

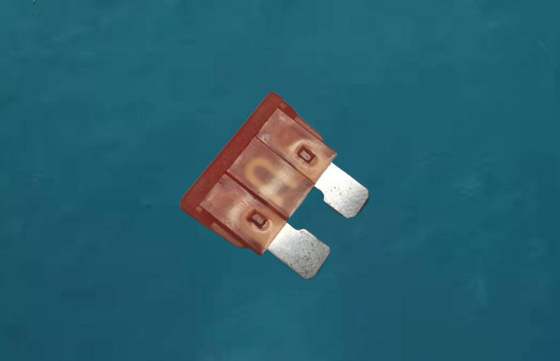

Dissmann® Large Automotive blade fuse DFN-E-40, rated voltage: DC80V, rated current: 40A, breaking capacity: DC1000A.
DFN-E Series Automotive blade fuses rated voltage: 80VDC, rated current: 20A-60A, dimensions and performance conforming to UL248-13, ISO8820, environmental protection conforming to European Union and China RoHS directives, and features small size, low power consumption, and high breaking capacity, have good vibration resistance and flame retardancy. These automotive blade fuses are applicable to the internal branch protection, UPS, communication power short circuit and backup protection of automobile electrical appliances.
|
Test current item(A) |
Current |
Minimum time(s) |
Maximum time(s) |
| 110% | 20A-60A | 360000s | - |
| 150% | 20A-60A | - | 1800s |
| 200% | 20A-60A | 2s | 60s |
| 350% | 20A-60A | 0.20s | 7s |
| 600% | 20A-60A | 0.040s | 1s |
|
Model |
Product code
|
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment |
| DFN-E | DFN-E-20 | 20 | 3500 | 100 | 黄色(Yellow) |
| DFN-E-30 | 30 | 8200 | 97 | 绿色(Green) | |
| DFN-E-40 | 40 | 14200 | 93 | 橙色(Orange) | |
| DFN-E-50 | 50 | 22500 | 90 | 红色(red) | |
| DFN-E-60 | 60 | 23000 | 95 | 蓝色(Blue) |
You can choose the right automotive blade fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
