Product Details:
|
| Rated Voltage: | 32VDC | Rated Current: | 3A |
|---|---|---|---|
| Type Protection: | Fast-acting | Breaking Capacity: | DC1000A |
| Advantage: | Good Vibration Resistance And Flame Retardancy | Application: | Applicable To The Internal Branch Protection Of Automobile Electrical Appliances |
| High Light: | 3A Automotive Blade Fuse,DC32V Automotive Blade Fuse,UL248 Fast Acting Fuse |
||

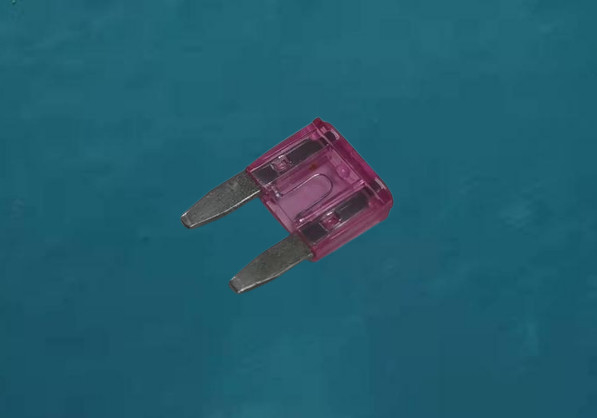

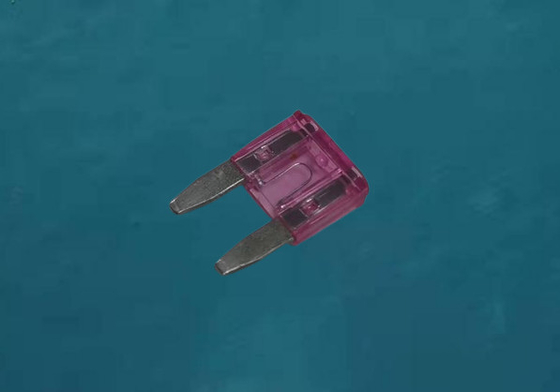

Dissmann® Automotive blade fuse DKN-A-3, rated voltage: DC32V, rated current: 3A, breaking capacity: DC1000A.

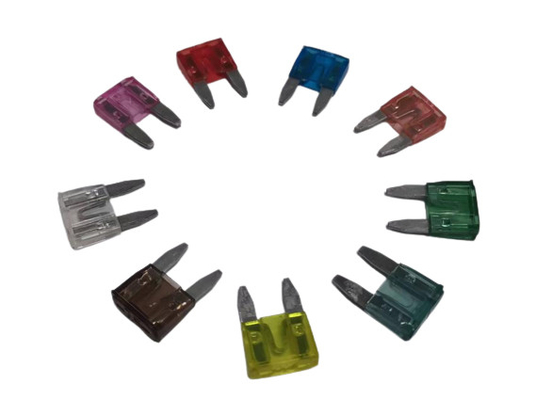

DKN-A Series Mini automotive blade fuses rated voltage: 32VDC, rated current: 2A-30A, dimensions and performance conforming to UL248, ISO8820, environmental protection conforming to European Union and China RoHS directives, and features small size, low power consumption, and high breaking capacity, have good vibration resistance and flame retardancy. These automotive blade fuses are applicable to the internal branch protection, UPS, communication power short circuit and backup protection of automobile electrical appliances.
|
Test current item(A) |
Current |
Minimum time(s) |
Maximum time(s) |
| 110% | 2A-30A | 360000 | ∞ |
| 135% | 2A-30A | 0.75 | 600 |
| 200% | 2A-30A | 0.15 | 5.0 |
| 350% | 2A-30A | 0.08 | 0.5 |
| 600% | 2A-30A | 0.03 | 0.1 |
|
Model |
Product code |
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment 颜色 |
| DKN-A | DKN-A-2 | 2 | 2.8 | 170 | 灰色(Gray) |
| DKN-A-3 | 3 | 9.3 | 152 | 浅紫色(Violet) | |
| DKN-A-4 | 4 | 17 | 120 | 粉红色(Pink) | |
| DKN-A-5 | 5 | 24 | 128 | 浅棕色(Tan) | |
| DKN-A-7.5 | 7.5 | 66 | 135 | 棕色(Brown) | |
| DKN-A-10 | 10 | 92 | 108 | 红色(Red) | |
| DKN-A-15 | 15 | 270 | 98 | 蓝色(Blue) | |
| DKN-A-20 | 20 | 380 | 96 | 黄色(Yellow) | |
| DKN-A-25 | 25 | 620 | 85 | 透明色(Clear) | |
| DKN-A-30 | 30 | 1120 | 86 | 绿色(Green) |
You can choose the right automotive blade fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
