Product Details:
|
| Material: | Ceramic | Rated Voltage: | 1000VDC |
|---|---|---|---|
| Rated Current: | 10A-800A | Breaking Capacity: | AC100KA、DC20KA |
| Delivery Time: | 2-3 Weeks | Color: | White |
| Application: | EV Charger、Charging Pile Module、 | Related Standard: | UL248-20、ISO8820、JASO-D622 |
| High Light: | UL Ceramic Automotive Fuses,DC20KA Ceramic Automotive Fuses,AC100KA High Voltage Automotive Fuse |
||
120 Amp EV Series Fuse For EV Charger Protection Made in China
1.Feature of EV Series

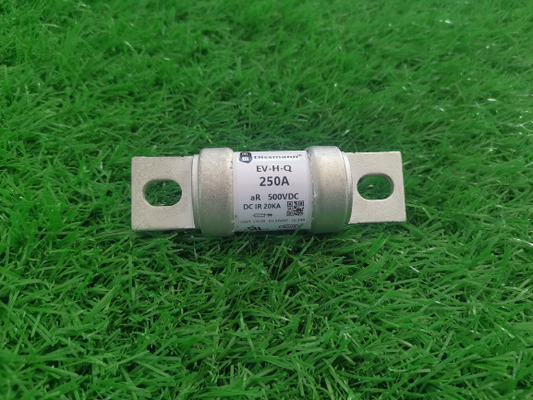

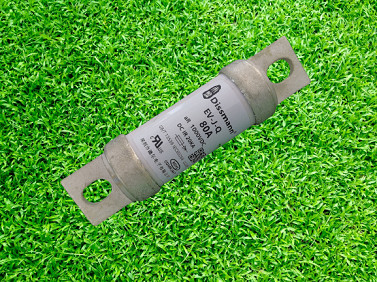

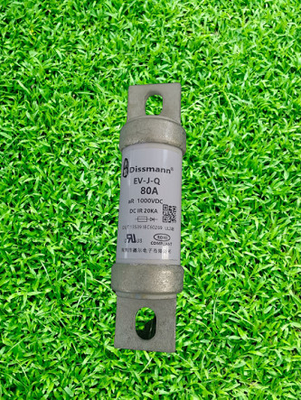

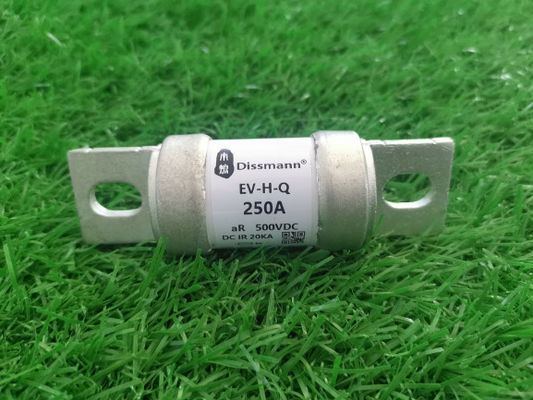

The appearance structure of this EV series fuse is composed of two end caps and a tube. The material of the end cap is Copper Alloy Tin Plating, and the tube is ceramic.This series fuse is available for the rated DC voltage of 1000VDC,the rated current range is10A-800A line,the breaking capacity is AC100KA or DC 20KA.Applicable for road vehicle. with small size, high breaking capacity, temperature shock resistance,current surge, mechanical vibration and shock, and strong chemical load.
2.Scope of EV ceramic fuse
This EV ceramic fuse is our Dissmann Fuse brand hot -selling product. At present, many customers mainly choose to use for charging piles, charging pile modules, low -speed cars, and battery fields.
3.Related standard
This EV series fuse approve by UL248-20,ISO8820,JASO-D622,EU and RoHs Detectives.
4.Electrical Parameter
| Model | Rated Current(A) | 100% voltage drop (mv) | Installation |
| EV-J-Q-120 | 120 | 145 |
Install Bolt M8, Recommend Torque: 11N.m |
5.Dimension in milimeter of EV Fuse
| Model | Dimension Code | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-J-Q | VJ1 | 116 | 30.4 | 75.5 | 97 | 9 | 25 | 4 | 13 |
| VJ2 | 139.75 | 37.3 | 75.75 | 108.75 | 11 | 25 | 6 | 15 | |
| VJ3-1 | 148 | 53.5 | 90.1 | 117.9 | 12.5 | 40 | 8 | 20 | |
| VJ3-2 | 173 | 53.5 | 114.7 | 143 | 12.5 | 40 | 6 | 20 |
6.FAQ
1.what is your company's main product?
We're company main product are fuse and fuse holder.We have high voltage automotive fuse,low voltage automotive fuse,energy storage battery fuse,power fuse,solar PV fuse,charging pile fuse etc.
2.Are you the manufacturer or the trader?
We are company belong to manufacturer.
