Product Details:
|
| Material: | Ceramic | Rated Voltage: | AC/DC1000V |
|---|---|---|---|
| Rated Current: | 10A-800A | Breaking Capacity: | DC20KA/AC100KA |
| Related Certificate: | UL | Installation: | Available In Bolt |
| Keyword: | Charging Pile Fuse | Application: | Electric Vehicles (EVs) And Hybrid Electric Vehicles (HEVs) |
| High Light: | DC1000V Bolt Type Fuse,EV Bolt Type Fuse,CCC 120 Amp Fuse |
||

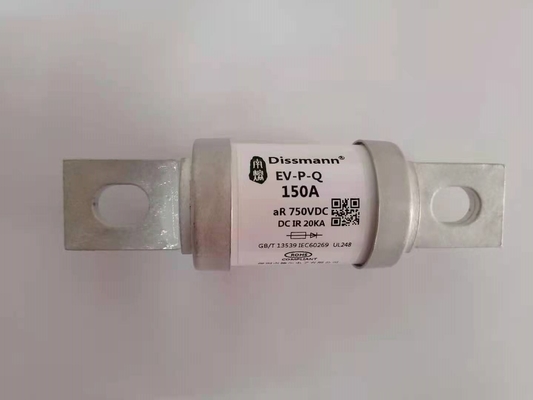

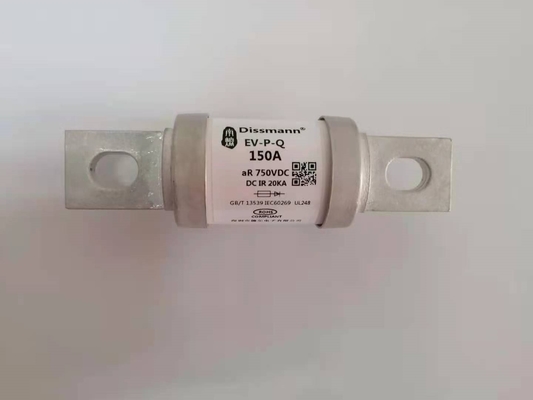

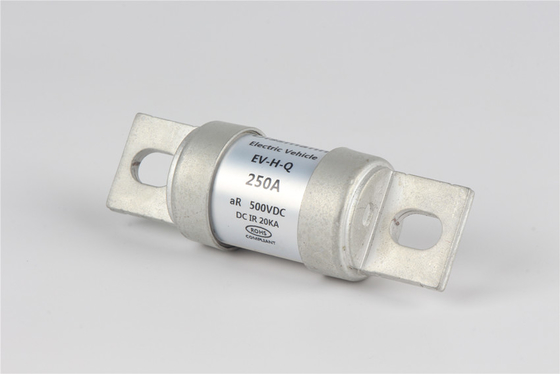

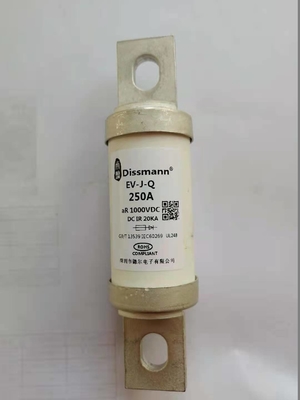

1000VDC Ceramic EV Charger Fuse Made in China
1.Application scope of EV charger fuse
This ceramic EV series fuse is high voltage ceramic tube fuse from Dissmann&supplier in China,is suitable to the rated DC voltage of 1000VDC,in the rated current of 10A-800A line,the breaking is AC100KA/DC20KA,widely use in the EV chager,charging pile module,vehicle-mounted battery,solar inverter.
2.Related standard of EV fuse
This EV series fuse products comply with ISO8820,JASOD622 and UL248-20 standards.
3.Electrical Characteristics
| Model | Rated Current(A) | 100% voltage drop (mv) | Installation |
| EV-J-Q-120 | 120 | 145 |
Install Bolt M8, Recommend Torque: 11N.m |
4.Materials
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
5.EV fuse dimension in milimeter
