Product Details:
|
| Rated Voltage: | AC250V/DC150V | Rated Current: | 10A-500A |
|---|---|---|---|
| Type Protection: | Time-lag | Breaking Capacity: | DC2700A |
| Advantage: | Small Size, Low Power Consumption And High Breaking Capacity | Application: | Applicable To Low-speed Electric Vehicles, Motors And Charging Modules. |
| High Light: | 500A Automotive Fuse Links,DC150V Automotive Fuse Links,UL248 Standard Electric Vehicle Fuse |
||

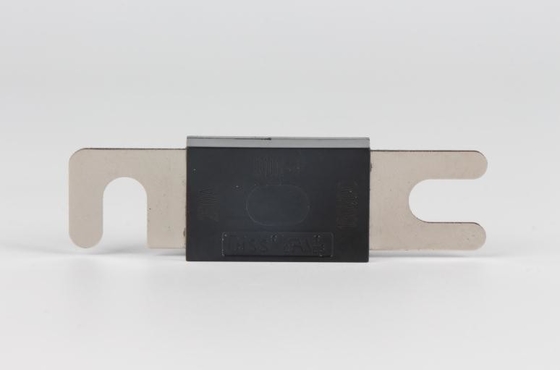

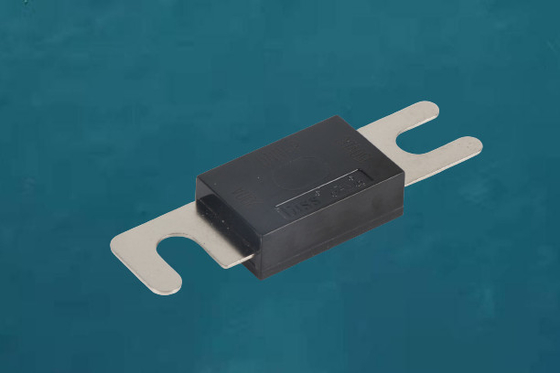

Dissmann® Low voltage automotive fuse DNN-P Series, rated voltage: DC150V / AC250V, rated current: 10A-500A, breaking capacity: DC2700A.
DNN-P Series automotive fuses are flat plug type automobile fuse (bolt type installation), their dimensions and performance conforming to UL248-20, ISO8820, JAS0-D622, environmental protection conforming to European Union and China RoHS directives.
DNN-P Series automotive fuses feature small size, low power consumption, and high breaking capacity, have good vibration resistance and flame retardancy. These automotive fuses are applicable to low-speed electric vehicles, motors and charging modules.
Reference Drawing of Amps Size greater than or equal to 250A
Amp size less than or equal to 225A reference drawing
| Load | Opening time | |
| 10A～500A | ||
| min | max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(≤200A) | 0 | 100 |
| 200%(＞200A) | 0 | 300 |
| 250%(≤200A) | 0 | 60 |
| 250%(＞200A) | 0.8 | 120 |
| 600% | 0.02 | 10 |
|
Model |
Product code |
Rated current (A) |
Voltage drop (mV) |
Installation requirement |
| DNN-H | DNN-P-35 | 35 | 130 |
Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-P-40 | 40 | 125 | ||
| DNN-P-50 | 50 | 120 | ||
| DNN-P-60 | 60 | 116 | ||
| DNN-P-80 | 80 | 112 | ||
| DNN-P-100 | 100 | 110 | ||
| DNN-P-125 | 125 | 105 | ||
| DNN-P-130 | 130 | 100 | ||
| DNN-P-150 | 150 | 96 | ||
| DNN-P-175 | 175 | 90 | ||
| DNN-P-200 | 200 | 86 | ||
| DNN-P-225 | 225 | 83 | ||
| DNN-P-250 | 250 | 80 | ||
| DNN-P-275 | 275 | 77 | ||
| DNN-P-300 | 300 | 75 | ||
| DNN-P-325 | 325 | 83 | ||
| DNN-P-350 | 350 | 81 | ||
| DNN-P-400 | 400 | 80 | ||
| DNN-P-425 | 425 | 78 | ||
| DNN-P-450 | 450 | 78 | ||
| DNN-P-500 | 500 | 76 |
You can choose the right automotive fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
