Product Details:
|
| Rated Voltage: | 80VDC | Rated Current: | 50A |
|---|---|---|---|
| Type Protection: | Fast-acting | Breaking Capacity: | DC1000A |
| Advantage: | Good Vibration Resistance And Flame Retardancy | Application: | Applicable To The Internal Branch Protection, UPS, Communication Power Short Circuit And Backup Protection Of Automobile Electrical Appliances |
| High Light: | Spade Automotive Blade Fuse,DC80V Plug In Fuses,50A Automotive Blade Fuse |
||

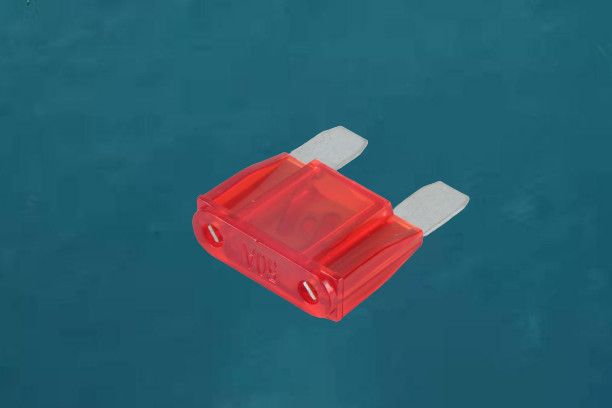

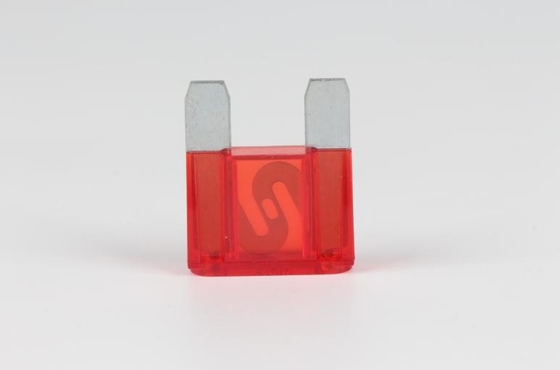

Dissmann® Automotive blade fuse DFN-E-50, rated voltage: DC80V, rated current: 50A, breaking capacity: DC1000A.
DFN-E Series blade fuses rated voltage: DC80V, rated current: 20A-60A, breaking capacity: DC1000A, dimensions and performance conforming to UL248-13, ISO8820, environmental protection conforming to European Union and China RoHS directives, and features small size, low power consumption, and high breaking capacity, have good vibration resistance and flame retardancy. These automotive blade fuses are applicable to the internal branch protection, UPS, communication power short circuit and backup protection of automobile electrical appliances.
1.Shape and mounting dimensions of the fuse:
2.Fuse model classification according to rated current :
|
Model |
Product code |
Rated current (A) |
I²t (A²Sec) |
Voltage drop (mV) |
Pigment |
| DFN-E | DFN-E-20 | 20 | 3500 | 100 | Yellow |
| DFN-E-30 | 30 | 8200 | 97 | Green | |
| DFN-E-40 | 40 | 14200 | 93 | Orange | |
| DFN-E-50 | 50 | 22500 | 90 | red | |
| DFN-E-60 | 60 | 23000 | 95 | Blue |
3.Performance criteria of the fuse:
|
Test current item(A) |
Current |
Minimum time(s) |
Maximum time(s) |
| 110% | 20A-60A | 360000s | - |
| 150% | 20A-60A | - | 1800s |
| 200% | 20A-60A | 2s | 60s |
| 350% | 20A-60A | 0.20s | 7s |
| 600% | 20A-60A | 0.040s | 1s |
You can choose the right automotive blade Fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
