Product Details:
|
| Material: | Fiber Pipe | Colour: | White |
|---|---|---|---|
| Breaking Capacity: | AC100KA / DC20KA | Protection Type: | AR |
| Advantage: | Factory Direct Supply Automotive HEV Fuse | Customize: | Support |
| High Light: | 550A High Current Automotive Fuses,DC500V High Voltage Automotive Fuse,UL248 High Current Automotive Fuses |
||

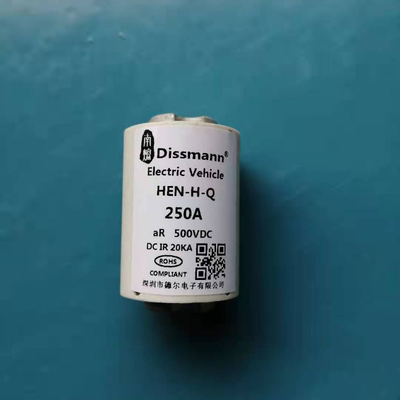

White fiber pipe high voltage automotive fuse——HEV-H-Q Module series
Dissmann Automotive Fuses HEV-H-Q Module series are designed to protect high-voltage accessory circuits in electric and hybrid electric vehicles.
Dissmann HEV-H-Q Module series fuses offers rated current 200 - 630 A, rated voltage AC / DC500V.
The latest HEV fuses have been tested to automotive quality standards for environmental reliability, transient current cycling, and device electrical and fusing characteristics. They are RoHS compliant and halogen free,and certified UL248-20,ISO8820,JAS0-D622.
Product introduction
1.Shape and mounting dimensions of the HEV-H-Q Module series automotive fuses:
| Size code | A±0.3 | B±0.5 | C±0.5 | D±0.3 | E±0.5 | M |
| HN1 | 53 | 45 | 31 | 20 | 7 | M6 |
| HM1 | 53 | 45 | 31 | 20 | 7 | M8 |
| HN2 | 53 | 45 | 37 | 24 | 7 | M6 |
| HM2 | 53 | 45 | 37 | 24 | 7 | M8 |
2.Model classification according to automotive fuses rated current:
|
Model |
Rated Current (A) |
I2t(A2s) |
Power dissipation (W) |
Size code |
Install |
|
| 弧前 | 总 | |||||
| HEN-H-Q-N200 | 200A | 6000 | 20400 | 23 | HN1 |
Mounting Bolt M6 recommended torque 6N·m |
| HEN-H-Q-N225 | 225A | 9200 | 30500 | 25 | ||
| HEN-H-Q-N250 | 250A | 11500 | 40000 | 27 | ||
| HEN-H-Q-N275 | 275A | 14800 | 50000 | 29 | ||
| HEN-H-Q-N300 | 300A | 17000 | 60000 | 30 | ||
| HEN-H-Q-N325 | 325A | 19200 | 73500 | 32 | ||
| HEN-H-Q-N350 | 350A | 22000 | 86500 | 34 | ||
| HEN-H-Q-N375 | 375A | 25200 | 102000 | 36 | ||
| HEN-H-Q-N400 | 400A | 30000 | 117000 | 37 | ||
| HEN-H-Q-N450 | 450A | 56500 | 322000 | 40 |
HN2 |
|
| HEN-H-Q-N500 | 500A | 87000 | 365000 | 44 | ||
| HEN-H-Q-N550 | 550A | 115000 | 410000 | 47 | ||
| HEN-H-Q-N630 | 630A | 150000 | 512000 | 50 | ||
| HEN-H-Q-M200 | 200A | 6000 | 20400 | 23 |
HM1 |
Mounting Bolt M8 recommended torque 12N·m |
| HEN-H-Q-M225 | 225A | 9200 | 30500 | 25 | ||
| HEN-H-Q-M250 | 250A | 11500 | 40000 | 27 | ||
| HEN-H-Q-M275 | 275A | 14800 | 50000 | 29 | ||
| HEN-H-Q-M300 | 300A | 17000 | 60000 | 30 | ||
| HEN-H-Q-M325 | 325A | 19200 | 73500 | 32 | ||
| HEN-H-Q-M350 | 350A | 22000 | 86500 | 34 |
HM2 |
|
| HEN-H-Q-M375 | 375A | 25200 | 102000 | 36 | ||
| HEN-H-Q-M400 | 400A | 30000 | 117000 | 37 | ||
| HEN-H-Q-M450 | 450A | 56500 | 322000 | 40 | ||
| HEN-H-Q-M500 | 500A | 87000 | 365000 | 44 | ||
| HEN-H-Q-M550 | 550A | 115000 | 410000 | 47 | ||
| HEN-H-Q-M630 | 630A | 150000 | 512000 | 50 | ||
Welcome you to get more information of the Fiber Pipe High Voltage Automotive Fuse,We will provide you with fast and efficient services and high-quality fuse products.
