Product Details:
|
| Material: | Fiber Tube | Colour: | White |
|---|---|---|---|
| Breaking Capacity: | DC20KA | Protection Type: | AR |
| Advantage: | Factory Direct Supply Automotive HEV Fuse | Customize: | Support |
| High Light: | UL248-20 High Current Automotive Fuses,800A High Current Automotive Fuses,HEV High Current Automotive Fuses |
||
High Current Automotive Fuses UL248-20 Stantdard 70A-1000A HEV Fuse——Made in China

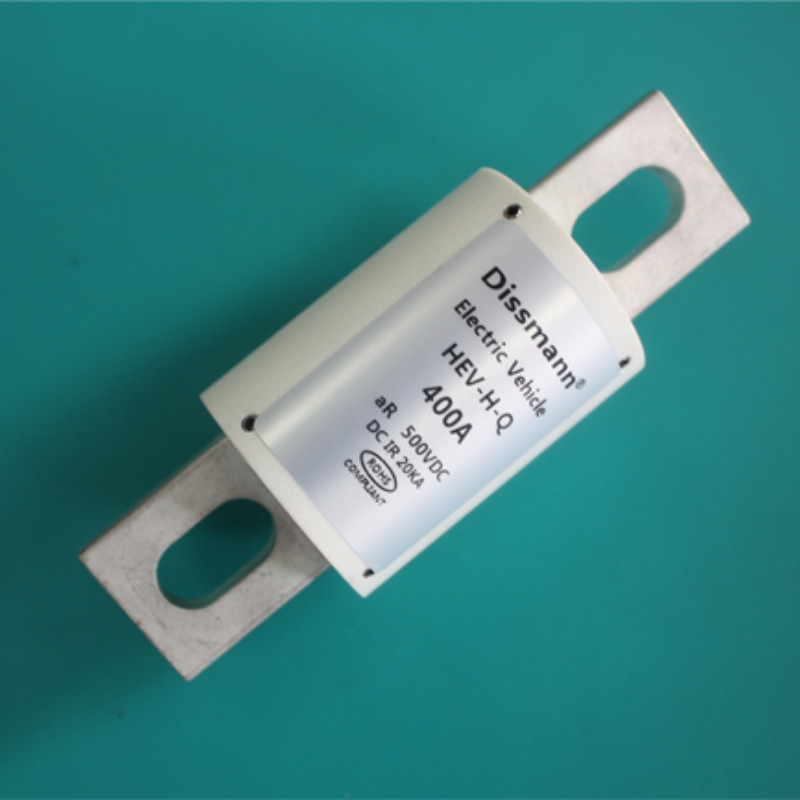

Dissmann Automotive Fuses HEV-A-Q Module series are designed to protect high-voltage accessory circuits in electric and hybrid electric vehicles.
Dissmann HEV-A-Q Module series fuses offers rated current 70 - 1000 A, rated voltage AC250V / DC150V.
The latest HEV fuses have been tested to automotive quality standards for environmental reliability, transient current cycling, and device electrical and fusing characteristics. They are RoHS compliant and halogen free,and certified UL248-20,ISO8820,JAS0-D622.
Product introduction
1.Shape and mounting dimensions of the HEV-A-Q Module series automotive fuses:
| Size Code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HW1 | 68.2 | 25 | 29 | 44 | 53 | 9 | 18 | 3.3 | 13.5 |
| HW2 | 94 | 38 | 38 | 54 | 74.5 | 10.5 | 25 | 6 | 20.7 |
2.Model classification according to automotive fuses rated current:
|
Model |
Rated Current (A) |
I2t(A2s) |
Power dissipation (W) |
Size code |
Install |
|
| 弧前 | 总 | |||||
| HEV-A-Q-70 | 70A | 460 | 3920 | 6.8 | HW1 |
Mounting Bolt M8 recommended torque 11N·m
|
| HEV-A-Q-80 | 80A | 665 | 5850 | 7.5 | ||
| HEV-A-Q-100 | 100A | 1120 | 11100 | 8.8 | ||
| HEV-A-Q-125 | 125A | 1840 | 17600 | 11.0 | ||
| HEV-A-Q-150 | 150A | 2650 | 25400 | 12.8 | ||
| HEV-A-Q-200 | 200A | 4750 | 44000 | 17.5 | ||
| HEV-A-Q-250 | 250A | 7420 | 68500 | 22.5 | ||
| HEV-A-Q-300 | 300A | 11000 | 99000 | 26.5 | ||
| HEV-A-Q-350 | 350A | 14800 | 139000 | 30.4 | ||
| HEV-A-Q-400 | 400A | 18800 | 180000 | 34.8 | ||
| HEV-A-Q-500 | 500A | 36000 | 110000 | 34.5 | HW2 |
Mounting Bolt M10 recommended torque 20N·m
|
| HEV-A-Q-600 | 600A | 43500 | 125000 | 45.6 | ||
| HEV-A-Q-700 | 700A | 68000 | 198000 | 48.5 | ||
| HEV-A-Q-800 | 800A | 86000 | 255000 | 57.0 | ||
| HEV-A-Q-1000 | 1000A | 152000 | 470000 | 59.5 | ||
