Product Details:
|
| Keyword: | Low Voltage Fuse | Application: | For Most Auto Cars Trucks SUVs Boat Ect. |
|---|---|---|---|
| Rated Voltage: | 32VDC | Rated Current: | 1A—40A |
| Breaking Capacity: | DC1000A | Characteristic: | Quick-Acting F |
| High Light: | DC32V Automotive Blade Fuses,UL-248 Standard Automotive Blade Fuses,40A Automotive Blade Fuses |
||

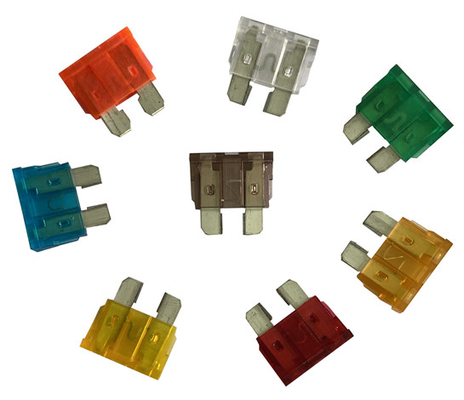

Blade-type automotive fuses share the similar design, characterised by a coloured plastic body and two prongs that slot into the socket. Dissmann DFN-A Module series fuses offers rated current 1A - 40A, rated voltage 32VDC, According to the different rated current, our plastic shell body has 13 colors, you can know the color of the specific model according to the product introduction.These automotive blade fuses can be mounted in fuse blocks, fuse clips, or fuse holders, depending on the application.
Product introduction
1.Basic Specification of the DFN-A Module Series Blade Fuse:
|
Rated Voltage |
32VDC |
Type Protection |
Fast |
| Rated Current | 1A-40A |
Breaking Capacity |
DC1000A |
|
Meet the Requirement |
UL248,ISO8820, RoHS |
Material |
Zinc alloy tin plating/PC |
2.Overall dimensions of the DFN-A Module Series Blade Fuse(mm):
3.Standard Regular Model of the DFN-A Module Series Blade Fuse:
|
Model |
Fuse code |
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | Black |
| DFN-A-2 | 2 | 1.5 | 140 | Gray | |
| DFN-A-3 | 3 | 6.3 | 137 | Violet | |

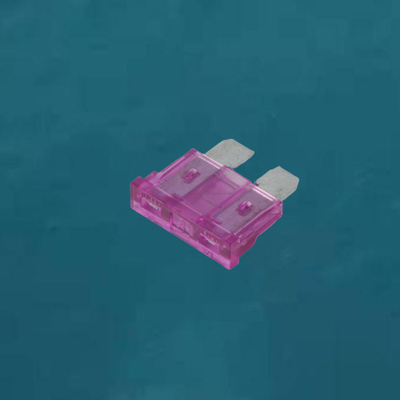

| DFN-A-4 | 4 | 13 | 135 | Pink | |
| DFN-A-5 | 5 | 25 | 125 | Tan | |
| DFN-A-7.5 | 7.5 | 56 | 115 | Brown | |
| DFN-A-10 | 10 | 110 | 110 | Red | |
| DFN-A-15 | 15 | 295 | 102 | Blue | |
| DFN-A-20 | 20 | 480 | 96 | Yellow | |
| DFN-A-25 | 25 | 1000 | 90 | Clear | |
| DFN-A-30 | 30 | 1460 | 86 | Green | |
| DFN-A-35 | 35 | 2205 | 88 | Dark green | |
| DFNA-40 | 40 | 3200 | 95 | Orange |
4.Current characteristic curve of the DFN-A Module Series Blade Fuse:
Warm tips:You can choose the right Blade fuse for your project based on the model, so you will get a quote within one business day. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within three working days.
Welcome you to get more information of the Blade-Type Automotive Fuses, We will provide you with fast and efficient services and high-quality fuse products.
