Product Details:
|
| Material: | PC | Colour: | White |
|---|---|---|---|
| Rated Current: | 1A-40A | Rated Voltage: | 32VDC |
| Breaking Capacity: | DC1000A | Characteristic: | F |
| Certificate Number: | E496054 | Application: | Electric Vehicle Drive Power System, Energy Storage And Power Battery |
| High Light: | high voltage mini auto blade fuses,40 amp mini auto blade fuses,32vdc 40 amp car fuse |
||

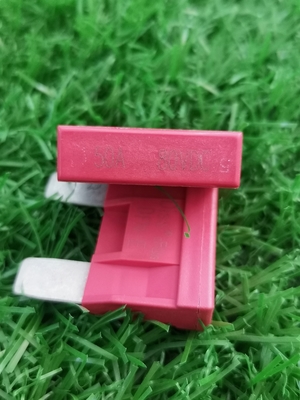

High Voltage 32VDC Automotive Mini Blade Fuse
1.Product Basic Information:
| Rated Voltage | 32VDC | Characteristic | F |
| Rated Current | 1A-40A | Breaking Capacity | DC1000A |
| Meet the Requirement | UL248,ISO8820,EU and ROHS Detective | Remark | UL |
2.Product Type:
|
Model |
Product code |
Rated current |
I²t (A²Sec) |
Voltage drop |
Pigment |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
3.Product Application:
This DFN series fuse suitable for road vehicle industry applications, and can be used as electric vehicle drive power system, power conversion system, energy storage and power battery, energy storage Short-circuit and backup protection of capacitors, inverter controllers, chargers, MSDs, wires and other automotive devices and equipment.
4.Manufacturing materials:
| Part name | Material |
| Meltable | Zinc Alloy Tin Plating |
| noumenon |
PC |
5.Mark:
5.1 The specification (rated current, rated voltage) of the plug-in fuse is printed on the body, and its font cannot disappear and is clear and easy to see.

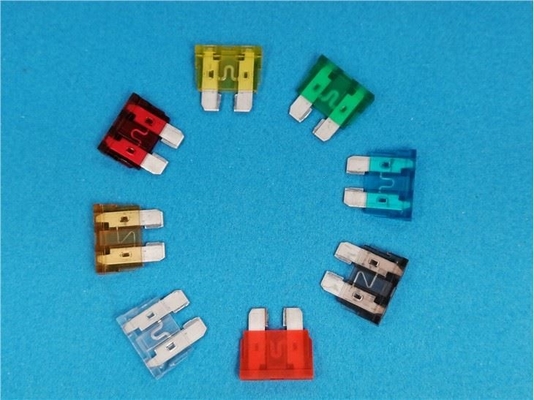

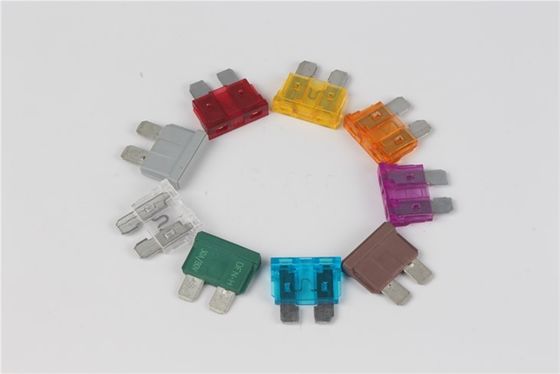

5.2 The rated current is as follows:
| Model | Color | Rated Current(A) |
| DFN-A-5A | Light Brown | 5A |
| DFN-A-10A | Red | 10A |
| DFN-A-15A | Blue | 15A |
| DFN-A-20A | Yellow | 20A |
6.Product Dimension:
Question: Are your products independently developed and produced?
Answer: All our products are developed and designed by our R&D team
