Product Details:
|
| Metiral: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 5A-200A | Rated Voltage: | 32VDC/58VDC/80VDC |
| Breaking Capacity: | DC1500A | Certificate Number: | E496054 |
| Keyword: | Automotive Low Voltage Fuse | Application: | Automotive EV Battery |
| High Light: | low voltage ceramic auto fuses,dc32v ceramic auto fuses,dc32v ceramic car fuses |
||

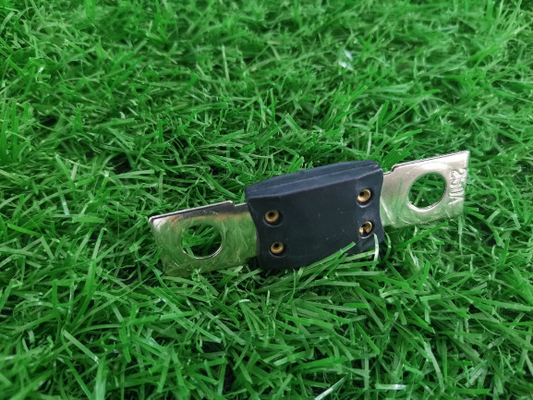

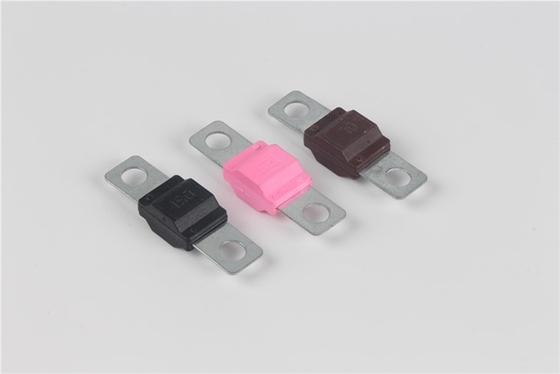

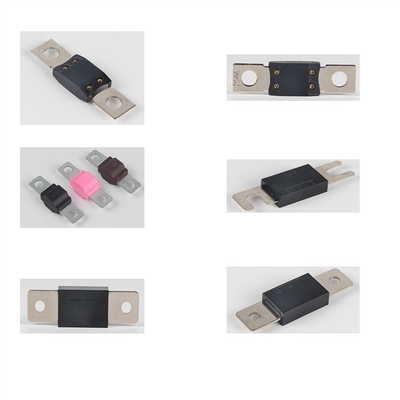

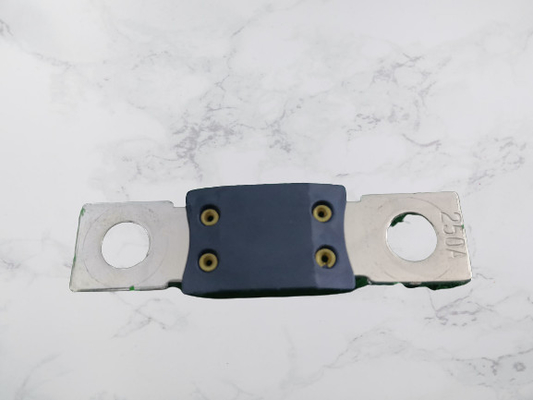

Car Mini Fuse Bolt Ceramic Fuse ANS Low Voltage Fuse
1.Product Basic Information:
Rated Voltage:32VDC/58VDC/80VDC
Rated Current:10A-500A
Type Protection:aR
Certificate Standard:Comply with UL248,GB13539,IEC60269,GB31465
Certificate Number:E496054
Product Application:Applicable for electric vehicle drive power system,Energy storage and power batteries,Energy storage capacitor,Frequency conversion controller,charger, wire and other automotive parts and equipment’s short circuit, overload and backup protection.
2.Product Material:
|
Component name |
Material |
|
Contact the foot |
Kirsite Copper alloy |
|
Noumenon |
Ceramics |
3. Product Type:
|
Model |
Rated current |
Rated voltage |
Rated voltage |
| DNQ-A | 5A～200A | 32Vdc | 1.5KA |
| DNQ-X | 5A～200A | 58Vdc | 1.5KA |
| DNQ-H | 5A～200A | 80Vdc | 1.5KA |
| DNM-A | 5A～200A | 32Vdc | 1.5KA |
| DNM-X | 5A～200A | 58Vdc | 1.5KA |
| DNM-H | 5A～200A | 80Vdc | 1.5KA |
4.Product Dimension:
Product equipment:
Test equipment:
Certificate:
