Product Details:
|
| Rated Current: | 1A-100A | Rated Voltage: | 80VDC-1000VDC |
|---|---|---|---|
| Breaking Capacity: | DC33KA | Material: | Ceramic |
| Color: | White | Certificate Requirement: | UL、TUV |
| Application: | Solar PV Module | Keyword: | Solar PV Fuse |
| High Light: | 10*38mm cartridge hrc fuse,solar pv cartridge hrc fuse,ceramic cylindrical type hrc cartridge fuse |
||

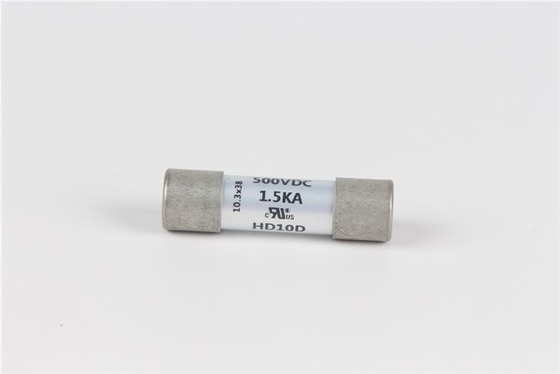

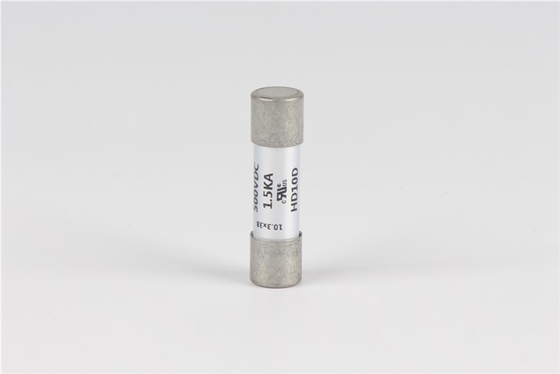

10*38mm Solar Pv Ceramic Fuse Hrc Cartridge Cylindrical Type Gg Fuse
Product material:
|
Component |
Material |
Quantity |
|
Wire |
Silver-copper alloy |
1 |
|
Cap |
Tin plated copper alloy |
2 |
|
Body |
Ceramic tube |
1 |
|
Filler |
Fuse sand |
Amount |
Packing details:
1.Packing Quantity
A:10pcs per inner small box,10pcs small box per inner big box.
B:10 inner big box per.
C:Each small box with 1 small packaging label,Each box with 1 packaging label,Each box with 1 Outgoing inspection report.
Note: this package is for reference only, and the actual packing is the criterion.
2.Packing shall be so carried out that the products will not absorb moisture or be damaged during transportation or storage.
Product model:
| Model |
Rated current |
Rated voltage
|
Breaking capacity
|
| HD10PV | 1A～40A | 1000Vac | 1.5KA |
| 1A～20A | 1000Vdc | 33KA | |
| 1A～40A | 1000Vdc | 1.5KA | |
| HD10P | 1A～20A | 750Vac/dc | 33KA |
| HD10P | 1A～40A | 750Vdc | 1.5KA |
| HD10V | 1A～50A | 700Vdc | 6KA |
| HD10DX | 1A～20A | 500Vac/dc | 33KA |
| HD10X | 1A～20A | 500Vac | 33KA |
| 30A～100A | 500Vac | 1.5KA | |
| HD10D | 1A～20A | 500Vdc | 33KA |
| HD10D | 1A～50A | 500Vdc | 6KA |
| HD10MN | 1A～20A | 690Vac/dc | 33KA |
| HD10N | 1A～20A | 690Vac | |
| HD10M | 1A～20A | 690Vdc | |
| HD10G | 1A～20A | 600Vdc | 6KA |
| HD10H | 1A～20A | 600Vac | |
| HD10C | 30A～100A | 400Vdc | 1.5KA |
| HD10F | 1A～20A | 400Vac | 6KA |
| HD10A | 1A～20A | 250Vac | |
| HD10L | 60A | 80VDC |
Product dimension:
Product equipment:
Test equipment:
Certificate:
