Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 1000VDC | Rated Current: | 150/250/550/600A |
| Breaking Capacity: | DC20KA | Standard: | UL248、GB13539、IEC60269、GB31456 |
| High Light: | ul248 ceramic automotive fuses,charging pile ceramic automotive fuses,dc1000v ceramic car fuses |
||

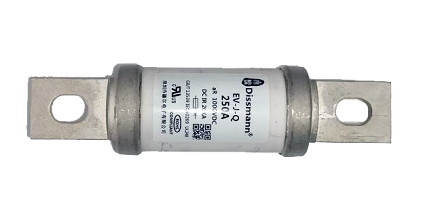

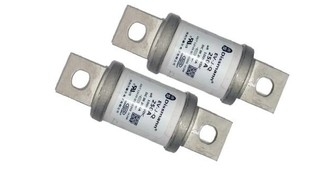

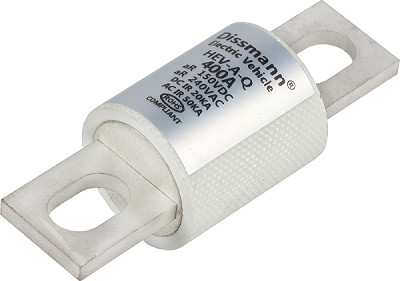

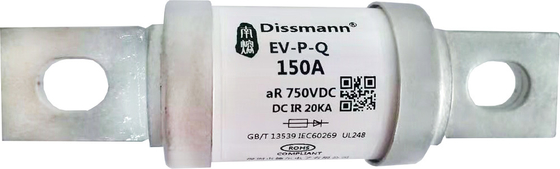

Dissmann Fuse EV-J-Q series Fuse conform to l GB13539,IEC60269,UL248
Product basic information:
1.EV-J-Q series fuse,dimension and performance conform:GB13539,IEC60269,UL248
2.Rated Voltage: DC1000V or lower
3.Rated Current:150/250/550/600A
4.Breaking Capacity:DC20kA
5.Compliance with EU and China RoHS directive
6.Compliance with the standard of UL248,GB13539,IEC60269,GB31456
Product application:
This series of products EV-J-Q are ceramic bolt-connected fuses, which have the characteristics of small size, and high reliability. Applicable to a wide temperature range, can withstand high-intensity mechanical vibration and shock, temperature shock and strong chemical load, suitable for road vehicle industry applications, can be used as electric vehicle drive power system, power conversion system, energy storage and power battery, energy storage Short-circuit and backup protection for capacitors, inverter controllers, chargers, wires, and other automotive components and equipment.Short circuit protection fuses especially for pure electric vehicles and hybrid electric vehicles
Product Characteristics:
| Model | Rated current | Size code | Installation |
| EV-J-Q-150 | 150 | VJ1 |
Install Bolt M8, Recommend Torque: 11N.m |
| EV-J-Q-250 | 250 | VJ2 |
Install Bolt M10, Recommend Torque: 20N.m |
| EV-J-Q-550 | 550 | VJ3-1 |
Install Bolt M12, Recommend Torque: 28N.m |
| EV-J-Q-600 | 600 |
Ceramic Automotive Fuse Product material:
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
Product dimension:
| Model | Size code | A±3 | B±1.5 | C±2 | D±2.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-J-Q | VJ1 | 116.5 | 30.4 | 75 | 96.5 | 9 | 25 | 4 | 13 |
| VJ2 | 140 | 37.3 | 77 | 109.5 | 11 | 25 | 6 | 15 | |
| VJ3-1 | 148 | 53.5 | 90 | 118 | 12.5 | 40 | 8 | 20 |
Current Temperature Characteristic Curve
Product type
| Model | Rated current | I²t(A²s) | Power consumption | Size Code | Install | |
| EV-J-Q-30 | 30 | 120 | 850 | 5 | VJ1 | Mounting Bolt M8 recommended torque 11N·m |
| EV-J-Q-40 | 40 | 300 | 1700 | 7.5 | ||
| EV-J-Q-50 | 50 | 450 | 2500 | 10 | ||
| EV-J-Q-60 | 60 | 620 | 3600 | 12.5 | ||
| EV-J-Q-70 | 70 | 850 | 5600 | 14 | ||
| EV-J-Q-80 | 80 | 1100 | 6600 | 15.5 | ||
| EV-J-Q-90 | 90 | 1850 | 10600 | 17 | ||
| EV-J-Q-100 | 100 | 2300 | 12000 | 18 | ||
| EV-J-Q-125 | 125 | 3400 | 21000 | 20 | ||
| EV-J-Q-150 | 150 | 4800 | 25000 | 25 | ||
| EV-J-Q-175 | 175 | 9200 | 40000 | 30 | VJ2 | Mounting Bolt M10 recommended torque 20N·m |
| EV-J-Q-200 | 200 | 15000 | 60000 | 34 | ||
| EV-J-Q-225 | 225 | 19000 | 105000 | 40 | ||
| EV-J-Q-250 | 250 | 23500 | 113000 | 43 | ||
| EV-J-Q-275 | 275 | 24800 | 128000 | 48 | ||
| EV-J-Q-300 | 300 | 26000 | 155000 | 52 | ||
| EV-J-Q-325 | 325 | 32700 | 175000 | 56 | ||
| EV-J-Q-350 | 350 | 40000 | 223000 | 60 | VJ3-1 | Mounting Bolt M12 recommended torque 28N·m |
| EV-J-Q-400 | 400 | 56000 | 290000 | 65 | ||
| EV-J-Q-450 | 450 | 78000 | 390000 | 80 | ||
| EV-J-Q-500 | 500 | 105000 | 490000 | 90 | ||
| EV-J-Q-600 | 600 | 165000 | 560000 | 105 | VJ3-2 | |
| EV-J-Q-800 | 800 | 420000 | 870000 | 175 | ||
