Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 200VDC | Rated Current: | 10A |
| Breaking Capacity: | 1.5KA | Standard: | IEC60269﹑GB/T31465﹑ UL248﹑ROHS |
| Usage: | Automotive | Keyword: | Automotive Fuse |
| High Light: | 10 Amp Automotive Blade Fuses,Ceramic Automotive Blade Fuses,10 amp automotive fuse |
||

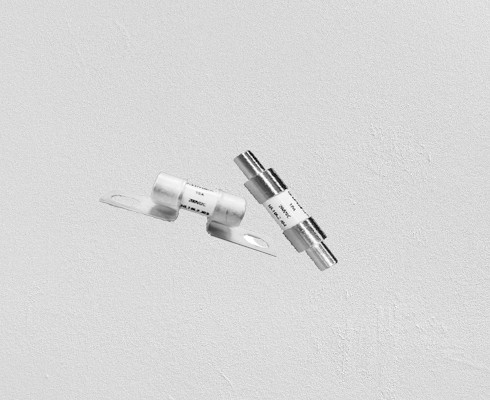

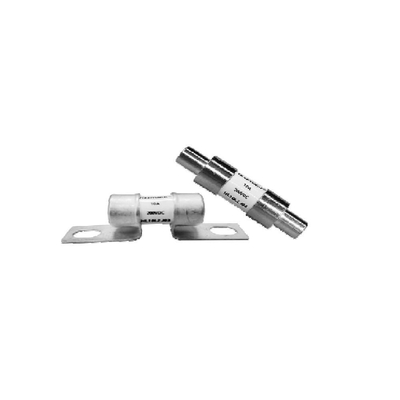

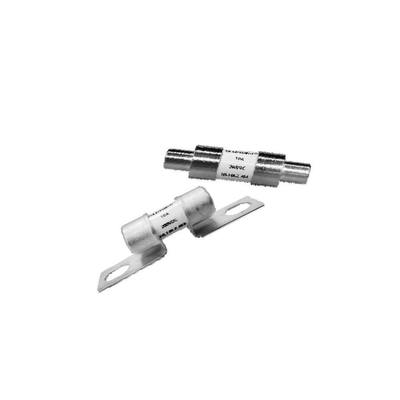

Low Current Automotive Blade Fuses 10*25 Fuse Low Breaking Capacity Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation:
Rated Voltage | 80VDC/100VDC/200VDC | Characteristic | aR |
Rated Current | 10A-80A | Breaking Capacity | 1.5KA |
Meet the Requirement | IEC60269﹑GB/T31465﹑UL248﹑ | Remarks | UL,TUV |
Overall dimensions of the product(mm)
HL10L.J01/HL10L1.J01/HL10L2.J01
HL10L.J04/HL10L1.J04/HL10L2.J04
Product type
| Model | Rated current(A) | Rated voltage (V) | Breaking capacity | |
| HL10L.J01/HL10L.J02/HL10L.J04 | 10A～80A | 80VDC | 1.5KA | |
| HL10L1.J01/HL10L1.J02/HL10L1.J04 | 10A～80A | 100Vdc | 1.5KA | |
| HL10L2.J01/HL10L2.J02/HL10L2.J04 | 10A～80A | 200Vdc | 1.5KA |
