Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL
Model Number: HEV-A-Q
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs

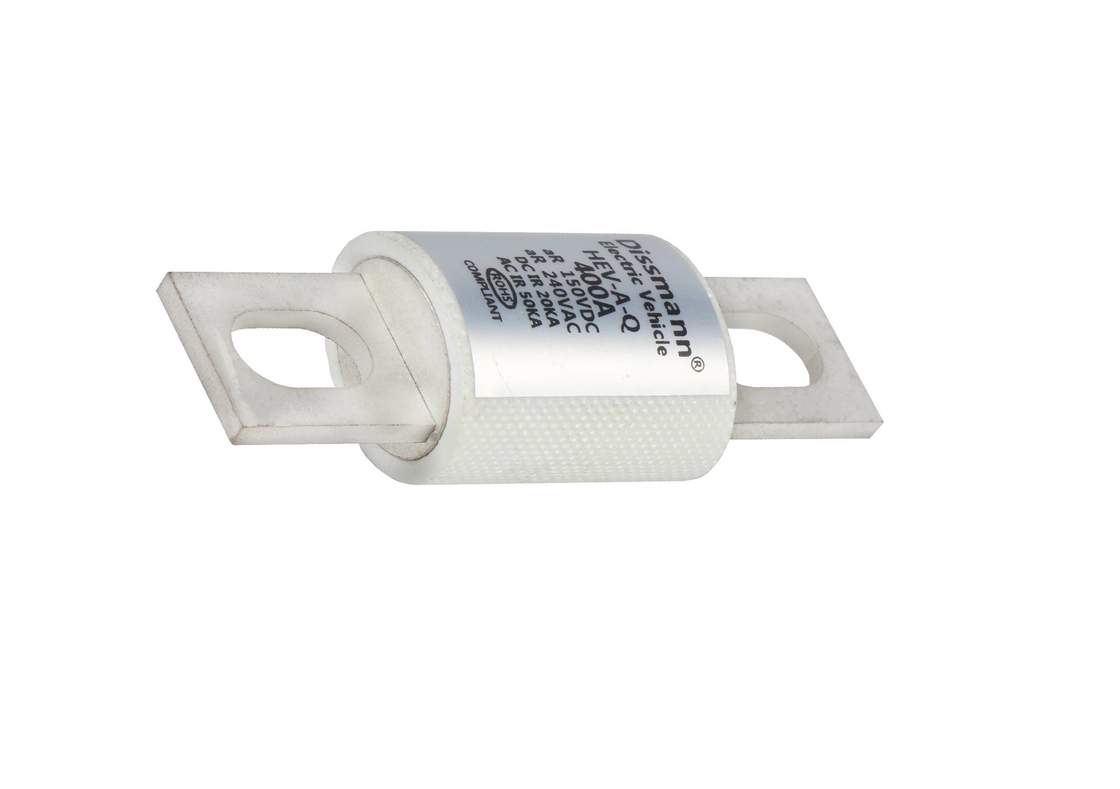

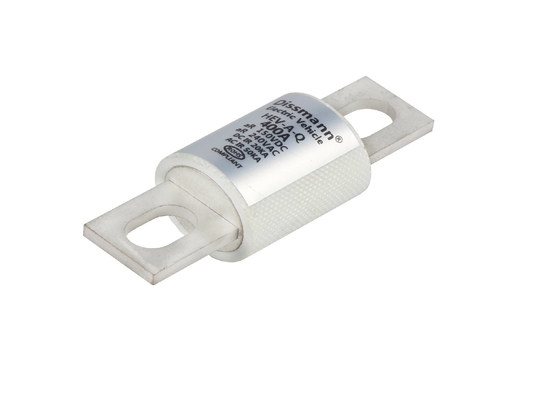

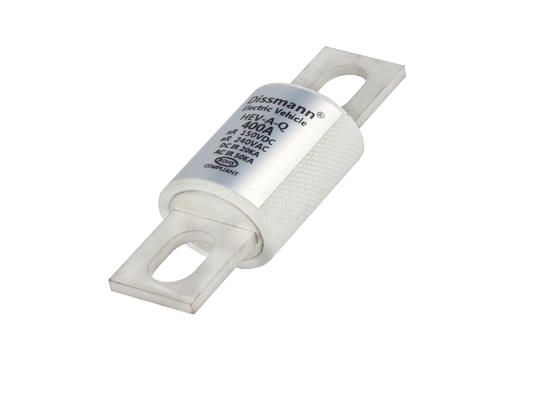

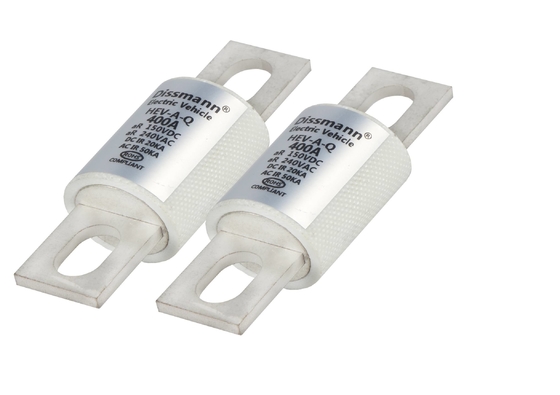

150VDC High Current Automotive Fuses , ROHS 400 Amp Dc Fuse

Description
Material: Ceramic Colour: White
Rated Voltage: 150VDC Rated Current: 400A
Breaking Capacity: DC20KA/AC50KA Standard: UL248-20、ISO8820、 JASO-D622、ROHS
Usage: Energy Storage System,PV,inverter Keyword: Charging Pile Fuse
High Light:

150VDC High Current Automotive Fuses

,

ROHS High Current Automotive Fuses

,

400 amp dc fuse

High Breaking Capacity Fuse EV Series Fuse 400amp Fuse Charging Pile Fuse



Material:
Noumenon: Ceramic
Pins: Copper alloy



Product Presentation:



Rated Voltage

额定电压

AC250V/DC150V

Type Protection

保护类别

aR
Rated Current 额定电流 5A-800A

Breaking Capacity

分断能力

DC20KA

(时间常数≤15ms)

Meet the Requirement

符合要求

UL248-20,ISO8820,JASO-D622,

欧盟和RoHS 指令

Remarks

备注

gR数据另版提供



熔断体外形及安装尺寸/Shape and mounting dimensions of fuses



150VDC High Current Automotive Fuses , ROHS 400 Amp Dc Fuse 0



尺寸代码 A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HW1 68.2 25 29 44 53 9 18 3.3 13.5
HW2 94 38 38 54 74.5 10.5 25 6 20.7


允通电流曲线/ Allowable current curve



150VDC High Current Automotive Fuses , ROHS 400 Amp Dc Fuse 1



产品型号/Product type



Model

型号

Rated Current

额定电流A

I2t(A2s)

Power dissipation

功耗W

Size code

尺寸代码

Install

安装

弧前
HEV-A-Q-70 70A 460 3920 6.8 HW1

Mounting Bolt M8 recommended torque 11N·m

安装螺栓M8推荐扭矩11N·m

HEV-A-Q-80 80A 665 5850 7.5
HEV-A-Q-100 100A 1120 11100 8.8
HEV-A-Q-125 125A 1840 17600 11.0
HEV-A-Q-150 150A 2650 25400 12.8
HEV-A-Q-200 200A 4750 44000 17.5
HEV-A-Q-250 250A 7420 68500 22.5
HEV-A-Q-300 300A 11000 99000 26.5
HEV-A-Q-350 350A 14800 139000 30.4
HEV-A-Q-400 400A 18800 180000 34.8
HEV-A-Q-500 500A 36000 110000 34.5 HW2

Mounting Bolt M10 recommended torque 20N·m

安装螺栓M10推荐扭矩20N·m

HEV-A-Q-600 600A 43500 125000 45.6
HEV-A-Q-700 700A 68000 198000 48.5
HEV-A-Q-800 800A 86000 255000 57.0
HEV-A-Q-1000 1000A 152000 470000 59.5



Test equipment

150VDC High Current Automotive Fuses , ROHS 400 Amp Dc Fuse 2

Production equipment

150VDC High Current Automotive Fuses , ROHS 400 Amp Dc Fuse 3
150VDC High Current Automotive Fuses , ROHS 400 Amp Dc Fuse 4

Our Certificates

150VDC High Current Automotive Fuses , ROHS 400 Amp Dc Fuse 5
