Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 500VAC/440VDC | Rated Current: | 250A |
| Breaking Capacity: | DC50KA/AC120KA | Standard: | UL248-13、 IEC60269.4、ROHS |
| Usage: | Charging Pile,PDU,UPS,energy Storage System | Keyword: | Energy Storage System Fuse |
| High Light: | MNH High Current Automotive Fuses,440volt High Current Automotive Fuses,High Breaking Capacity auto cartridge fuse |
||

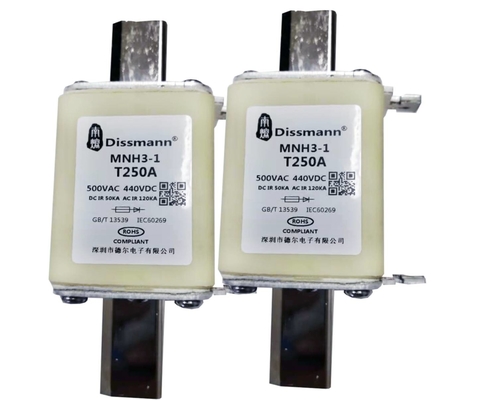

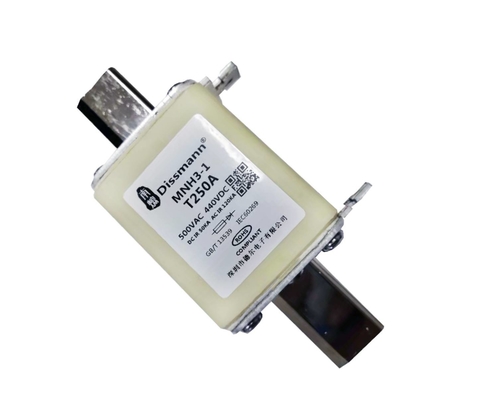

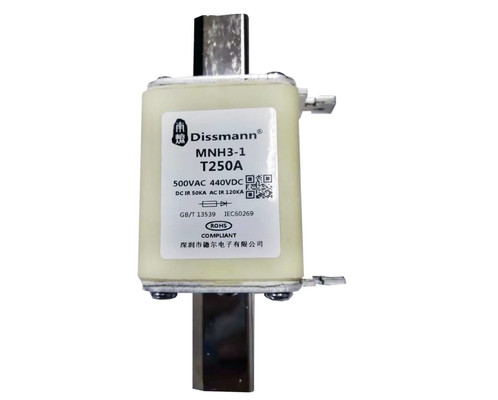

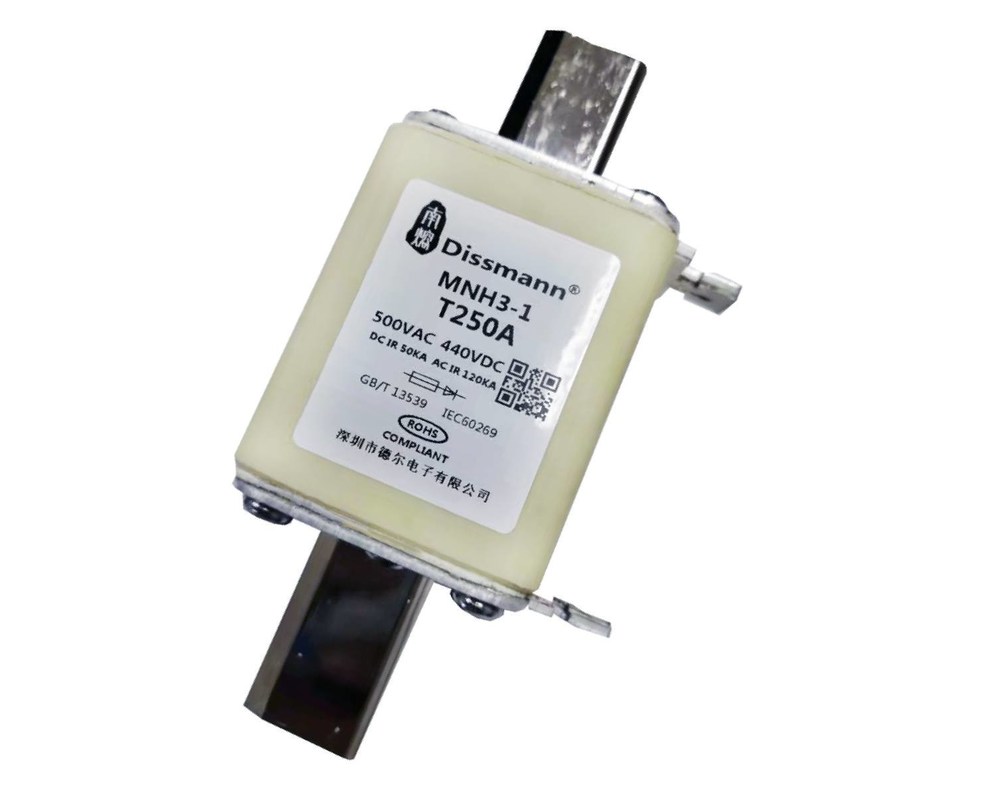

High Breaking Capacity Fuse 440volt DC Fsue MNH Series Fuse Cartridge Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
MNH Series Fuse
Many kinds of MNH Series Fuse
Current rating:250A
Voltage rating:500VAC/440VDC
Breaking capacity:DC50KA/AC120KA
Product Presentation:
|
Rated Voltage
|
AC500V/DC440V or lower |
Type Protection |
aR |
| Rated Current | 6A-630A |
Breaking Capacity
|
AC500V/120kA DC440V/50kA (time constant15-20ms) |
|
Meet the Requirement
|
UL248-13,IEC60269.4 EU and Rosh Directive |
Remarks
|
Overall dimensions of the product(mm)
| MNH3-00 | MNH3-1 | MNH3-2 | MNH3-3 | |
| a1 | 7.85±1.5 | 135±2.5 | 150±2.5 | 150±2.5 |
| a20-5 | 54 | 72 | 72 | 72 |
| a3 | 45±1.5 | 62±2.5 | 62±2.5 | 62±2.5 |
| f(Max) | 15 | 15 | 15 | 18 |
| b±0.2 | 15 | 20 | 25 | 32 |
| e1±3 | 57 | 62 | 72 | 82 |
| e2 | 29±1 | 48±2 | 58±2 | 67±3 |
Product type
| Model | Rated Current | I2t(A2s) | Power dissipation | Size code | |
| Pre-arc | Total | ||||
| MNH3-00-T6A | 6 | 14 | 137 | 1.7 | 0 |
| MNH3-00-T10A | 10 | 60 | 280 | 2 | |
| MNH3-00-T16A | 16 | 280 | 960 | 3.1 | |
| MNH3-00-T20A | 20 | 580 | 2200 | 3.3 | |
| MNH3-00-T25A | 25 | 1050 | 3900 | 3.5 | |
| MNH3-00-T32A | 32 | 2050 | 5900 | 4.1 | |
| MNH3-00-T40A | 40 | 3800 | 9700 | 4.9 | |
| MNH3-00-T50A | 50 | 5200 | 13500 | 5.3 | |
| MNH3-00-T63A | 63 | 6600 | 20500 | 6.3 | |
| MNH3-00-T80A | 80 | 10500 | 30500 | 6.9 | |
| MNH3-00-T100A | 100 | 19500 | 59000 | 8.5 | |
| MNH3-00-T125A | 125 | 39500 | 119000 | 9.5 | |
| MNH3-00-T160A | 160 | 72000 | 192000 | 11.5 | |
| MNH3-1-T80A | 80 | 9900 | 29800 | 7.8 | 1 |
| MNH3-1-T100A | 100 | 19000 | 55000 | 9.6 | |
| MNH3-1-T125A | 125 | 39000 | 11800 | 11.5 | |
| MNH3-1-T160A | 160 | 69000 | 185000 | 12.8 | |
| MNH3-1-T200A | 200 | 119000 | 260000 | 15 | |
| MNH3-1-T224A | 224 | 169000 | 390000 | 17 | |
| MNH3-1-T250A | *250 | 240000 | 498000 | 20 | |
| MNH3-2-T125A | 125 | 39000 | 118000 | 12 | 2 |
| MNH3-2-T160A | 160 | 68000 | 175000 | 13.5 | |
| MNH3-2-T200A | 200 | 99000 | 250000 | 16 | |
| MNH3-2-T224A | 224 | 155000 | 380000 | 17.5 | |
| MNH3-2-T250A | *250 | 220000 | 485000 | 21 | |
| MNH3-2-T300A | 300 | 340000 | 750000 | 24 | |
| MNH3-2-T315A | 315 | 380000 | 860000 | 25 | |
| MNH3-2-T355A | 355 | 525000 | 1170000 | 28 | |
| MNH3-3-T400A | 400 | 720000 | 1550000 | 31 | |
| MNH3-3-T315A | 315 | 380000 | 860000 | 25 | 3 |
| MNH3-3-T355A | 355 | 510000 | 1150000 | 29 | |
| MNH3-3-T400A | *400 | 720000 | 1650000 | 31 | |
| MNH3-3-T425A | 425 | 885000 | 1980000 | 34 | |
| MNH3-3-T500A | *500 | 1240000 | 2950000 | 38 | |
| MNH3-3-T630A | 630 | 1820000 | 5300000 | 44 | |
Product Applications
