Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 80VDC | Rated Current: | 150A |
| Breaking Capacity: | DC2700A | Standard: | UL248-13、ISO8820、 JASO-D622、ROHS |
| Usage: | Automotive,Charging Pile | Keyword: | Automotive Fuse |
| High Light: | DNN Low Breaking Capacity Fuse,Charging Pile Ceramic Automotive Fuse,UL248-13 Low Breaking Capacity Fuse |
||

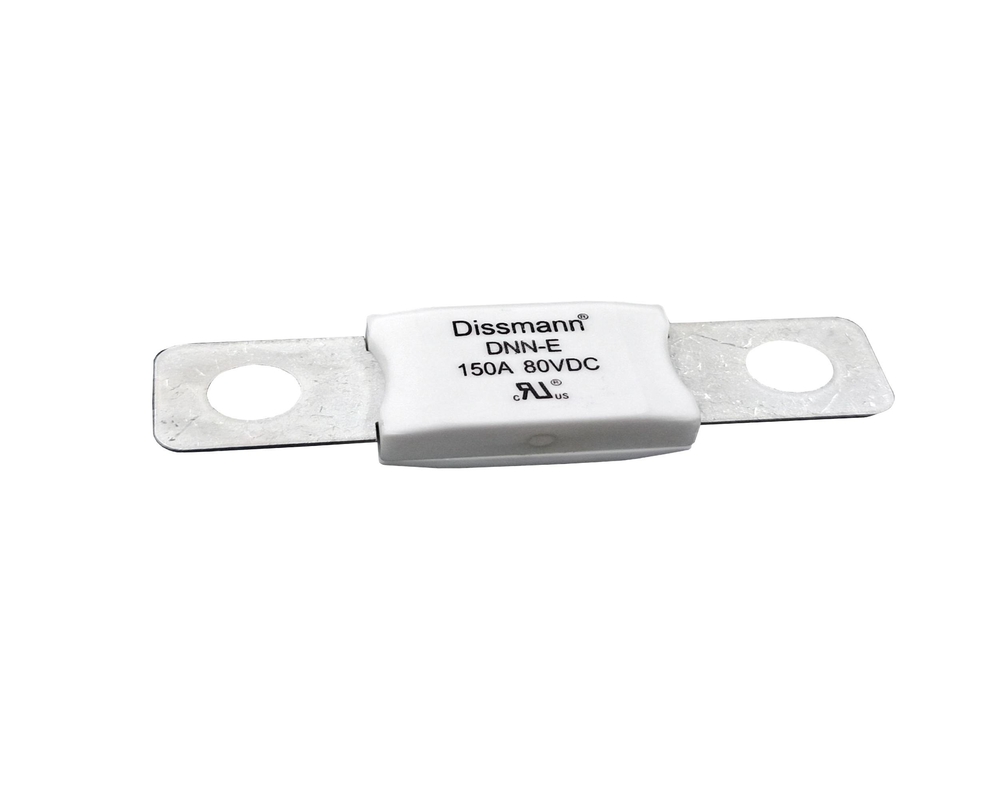

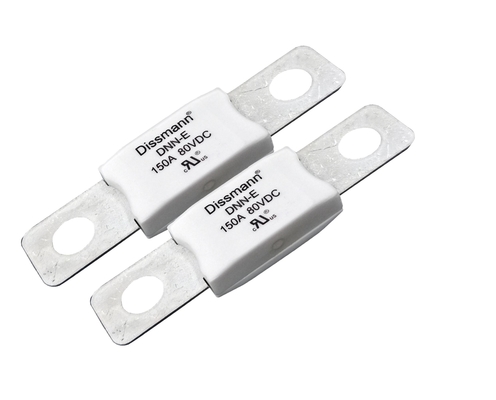

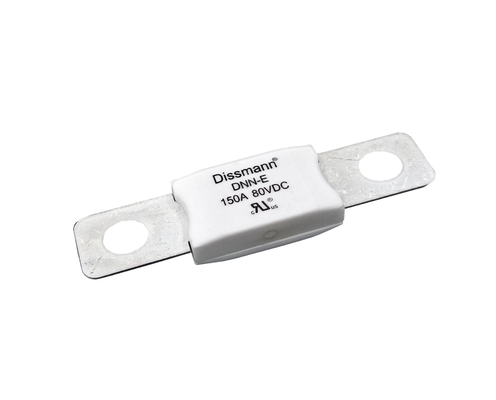

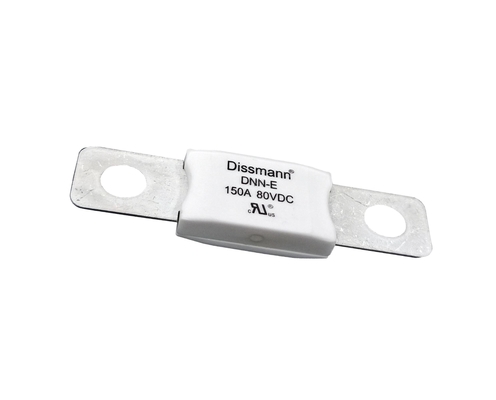

DNN Series Fuse Ceramic Automotive Fuse Low Breaking Capacity Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
Ceramic Automotive Fuse
Many kinds of Ceramic Automotive Fuse
Current rating:150A
Voltage rating:80VDC
Breaking capacity:DC2700A
Product Presentation:
|
Rated Voltage |
32VDC/58VDC/80VDC |
Type Protection |
Time-lag |
| Rated Current | 10A-500A |
Breaking Capacity
|
DC2700A |
|
Meet the Requirement |
UL248-13,ISO8820,JASO-D622,EU and Rosh Directive |
Remarks |
UL |
Overall dimensions of the product(mm)
Manufacturing material
|
Component name |
Material |
|
Contact the foot |
copper alloy |
|
Noumenon |
Ceramics |
Product type of Charging Pile
|
Rated current |
Rated voltage |
Rated voltage |
| 10A～500A | 32Vdc | 2700A |
| 10A～500A | 58Vdc | 2700A |
| 10A～500A | 80Vdc | 2700A |
UL Certificate
