Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Usage:: | Semiconductor,power Supply,energy Storage | Breaking Capacity:: | DC20KA |
| Rated Voltage:: | AC250V/DC150V | Keyword:: | Semiconductor Fuse |
| Rated Current: | 5A-800A | ||
| High Light: | Ceramic square automotive fuses,DC10KA battery pack fuse,Semiconductor battery pack fuse |
||

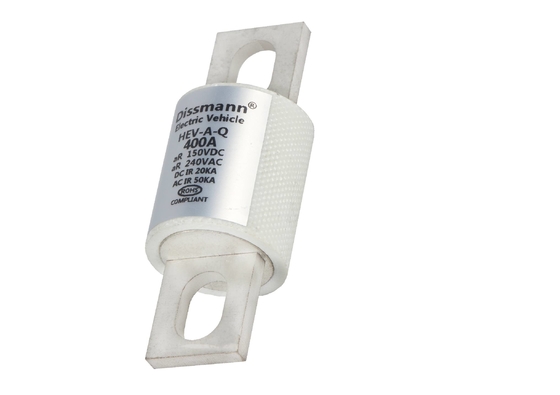

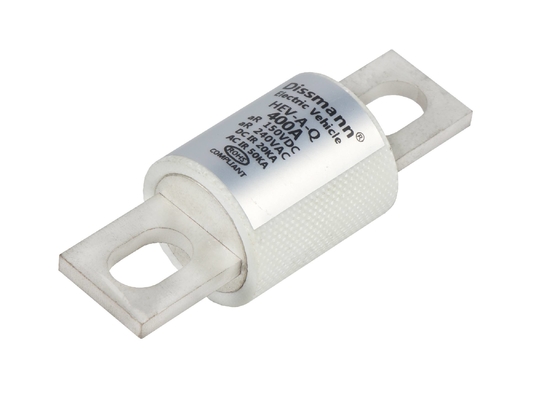

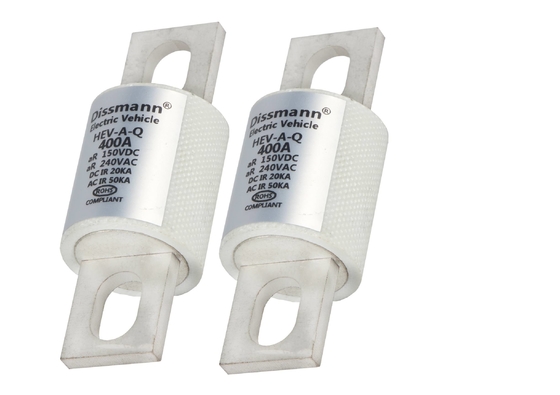

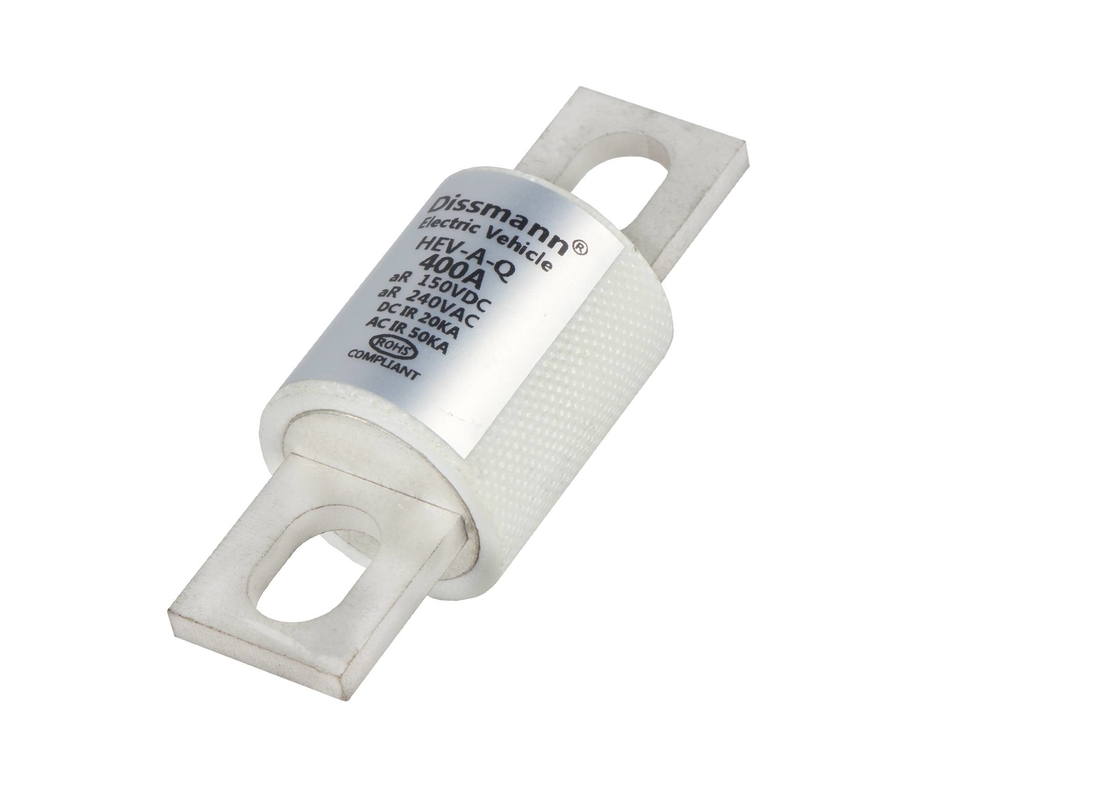

High Current Automotive Fuse European Square Fuse Battery Pack Fuse
Material:
Noumenon:Ceramic
Pins: Alloy
Features:
Battery Pack Fuse
Many kinds of Battery Pack Fuse
Current rating: 400A
Voltage rating: AC250V/DC150V
Breaking capacity:DC20KA
Product Presentation:
|
Rated Voltage |
AC250V/DC150V |
Type Protection |
aR |
| Rated Current | 5A-800A |
Breaking Capacity |
DC20KA (time constant≤15ms) |
|
Meet the Requirement |
UL248-20,ISO8820,JASO-D622, EU and Rosh Directive |
Remarks |
gR |
Shape and mounting dimensions of fuses
| 尺寸代码 | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HW1 | 68.2 | 25 | 29 | 44 | 53 | 9 | 18 | 3.3 | 13.5 |
| HW2 | 94 | 38 | 38 | 54 | 74.5 | 10.5 | 25 | 6 | 20.7 |
Product type
| Model | Rated Current | I2t(A2s) | Power dissipation | Size code | Install | |
| Pre-arc | Total | |||||
| HEV-A-Q-70 | 70A | 460 | 3920 | 6.8 | HW1 | Mounting Bolt M8 recommended torque 11N·m |
| HEV-A-Q-80 | 80A | 665 | 5850 | 7.5 | ||
| HEV-A-Q-100 | 100A | 1120 | 11100 | 8.8 | ||
| HEV-A-Q-125 | 125A | 1840 | 17600 | 11 | ||
| HEV-A-Q-150 | 150A | 2650 | 25400 | 12.8 | ||
| HEV-A-Q-200 | 200A | 4750 | 44000 | 17.5 | ||
| HEV-A-Q-250 | 250A | 7420 | 68500 | 22.5 | ||
| HEV-A-Q-300 | 300A | 11000 | 99000 | 26.5 | ||
| HEV-A-Q-350 | 350A | 14800 | 139000 | 30.4 | ||
| HEV-A-Q-400 | 400A | 18800 | 180000 | 34.8 | ||
| HEV-A-Q-500 | 500A | 36000 | 110000 | 34.5 | HW2 | Mounting Bolt M10 recommended torque 20N·m |
| HEV-A-Q-600 | 600A | 43500 | 125000 | 45.6 | ||
| HEV-A-Q-700 | 700A | 68000 | 198000 | 48.5 | ||
| HEV-A-Q-800 | 800A | 86000 | 255000 | 57 | ||
| HEV-A-Q-1000 | 1000A | 152000 | 470000 | 59.5 | ||
150V(70-1000)A
Product anatomy:
