Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 58VDC | Rated Current: | 1A-40A |
| Breaking Capacity: | DC1000A | Standard: | UL248、ISO8820、ROHS |
| Usage: | Automotive,Charging Pile | Keyword: | Automotive Fuse |
| High Light: | Ceramic NH Type HRC Fuse,DC1000A NH Type HRC Fuse,hrc indicating cartridge fuse |
||

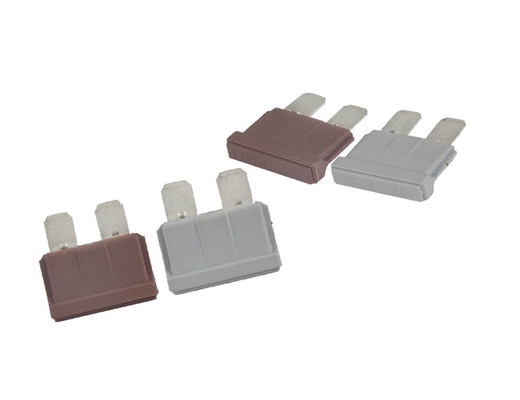

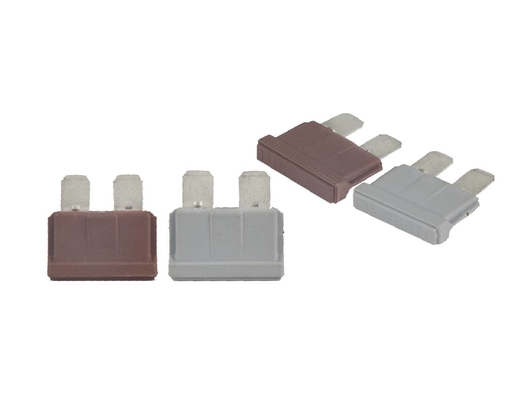

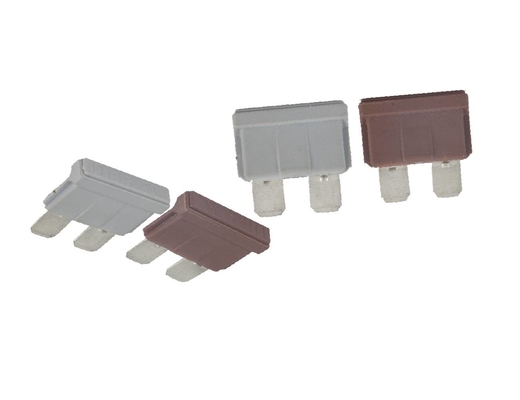

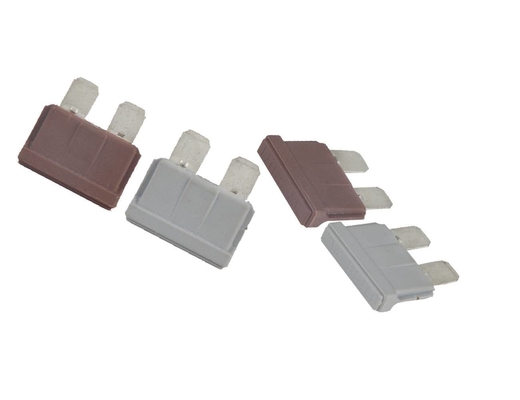

Low Voltage Automotive Fuse Low Breaking Capacity Fuse NH Type HRC Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
Low Voltage Automotive Fuse
Many kinds of Low Voltage Automotive Fuse
Current rating:1A-40A
Voltage rating: 58VDC
Breaking capacity:DC1KA
Product Presentation:
|
Rated Voltage
|
58VDC |
Characteristic
|
Fast Blowing |
| Rated Current | 1A-40A |
Breaking Capacity |
DC1000A |
|
Meet the Requirement
|
UL248,ISO8820, EU and Rosh Directive |
Remarks
|
UL |
Overall dimensions of the product of Ceramic HRC Fuse(mm)
Product type of DC 1000A Car
|
Model |
Product code |
Rated current |
I²t (A²Sec) |
Voltage drop |
Pigment |
| DFN-X | DFN-X-1 | 1 | 0.4 | 174 | (Black) |
| DFN-X-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-X-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-X-4 | 4 | 13 | 135 | (Pink) | |
| DFN-X-5 | 5 | 25 | 125 | (Tan) | |
| DFN-X-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-X-10 | 10 | 110 | 110 | (Red) | |
| DFN-X-15 | 15 | 295 | 102 | (Blue) | |
| DFN-X-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-X-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-X-30 | 30 | 1460 | 86 | (Green) | |
| DFN-X-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-X-40 | 40 | 3200 | 95 | (Orange) |
Performance criteria
| Test current item(A) | Current | Minimum time(s) | Maximum time(s) |
| 110% | 1A-40A | 3600 | ∞ |
| 150% | 1A-40A | 0.5 | 300 |
| 200% | 1A-40A | 0.15 | 20 |
| 350% | 1A-40A | 0.04 | 0.5 |
| 600% | 1A-40A | 0.02 | 0.1 |
