Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Rated Voltage: | 500VDC | Rated Current: | 2000A |
| Breaking Capacity: | DC10KA | Standard: | UL248-13、ISO8820、 JASO-D622、IEC60269、ROHS |
| Usage: | PV Junction Box,inverter,solar Battery | Keyword: | High Current Fuse |
| High Light: | European high current automotive fuses,500volt high current automotive fuses,square automotive fuses |
||

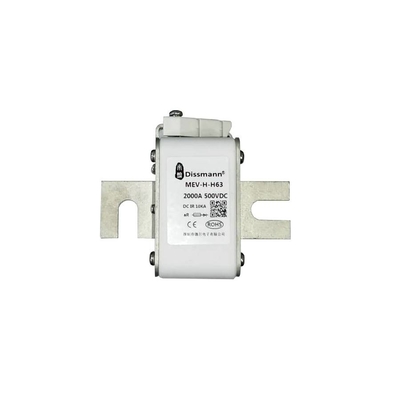

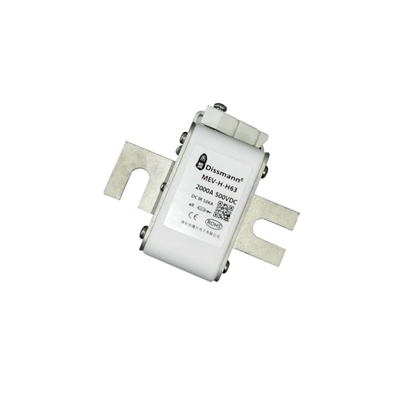

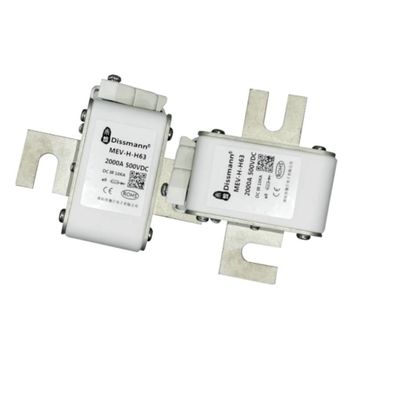

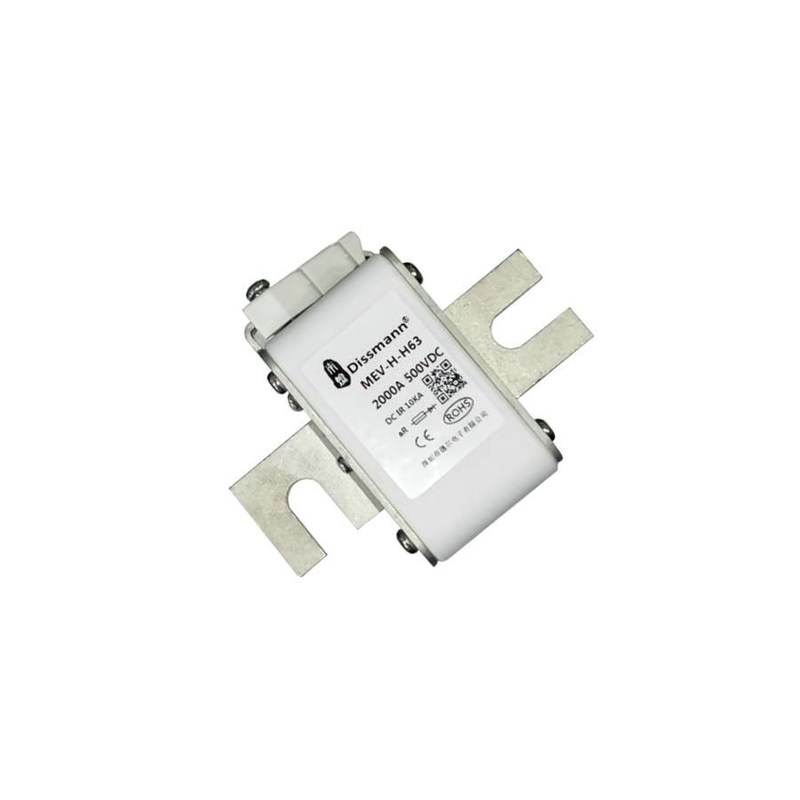

How Current Fuse 500volt DC Fuse European Square Fuse Automotive Fuse
Material:
Ceramic
Pins: Copper alloy
Product Presentation:
|
Rated Voltage
|
DC500V,AC690V or lower |
Type Protection
|
aR |
| Rated Current | 800A-1800A |
Breaking Capacity
|
DC10KA (time constant ≤10ms) |
|
Meet the Requirement |
UL248-13,ISO8820,JASO-D622,IEC60269 Europe and RoHs Directive |
Remarks 备注 |
UL248-13,ISO8820, JASO-D622,IEC60269,ROHS |
Overall dimensions of the product(mm)
Product type
| Model | Product code |
Rated current (A) |
I²t(A²Sec) |
Power consumption ( W) |
|
| Pre-Arc | After-Arc | ||||
| MEV-H-H63 | MEV-H-H63-800 | 800A | 69200 | 465000 | 115 |
| MEV-H-H63-900 | 900A | 100000 | 670000 | 120 | |
| MEV-H-H63-1000 | 1000A | 140000 | 945000 | 125 | |
| MEV-H-H63-1100 | 1100A | 190000 | 1300000 | 130 | |
| MEV-H-H63-1250 | 1250A | 280000 | 1900000 | 140 | |
| MEV-H-H63-1400 | 1400A | 370000 | 2450000 | 155 | |
| MEV-H-H63-1500 | 1500A | 460000 | 3100000 | 160 | |
| MEV-H-H63-1600 | 1600A | 580000 | 3900000 | 160 | |
| MEV-H-H63-1800 | 1800A | 880000 | 5200000 | 16 | |
Our Certificate
Test Equipment
Production Equipment
