Product Details:
|
| Material:: | Electric Wood Shell | Colour:: | Black |
|---|---|---|---|
| Rated Voltage:: | 80VDC/125VAC | Rated Current:: | 200A |
| Breaking Capacity:: | DC2700A | Standard:: | UL248-13、ISO8820、 JASO-D622、ROHS |
| Usage:: | Automobile | Keyword:: | Automobile Fuse |
| High Light: | Wood Shell NH Type HRC Fuse,Electric NH Type HRC Fuse,Electric 200 amp cartridge fuse |
||

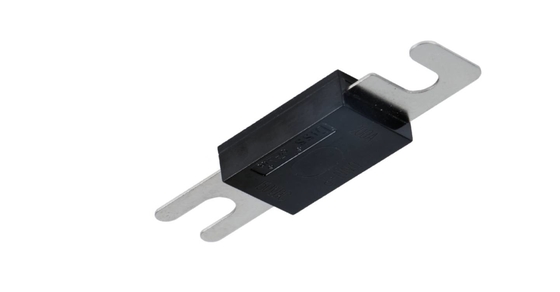

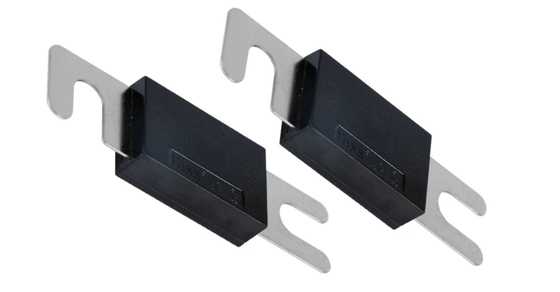

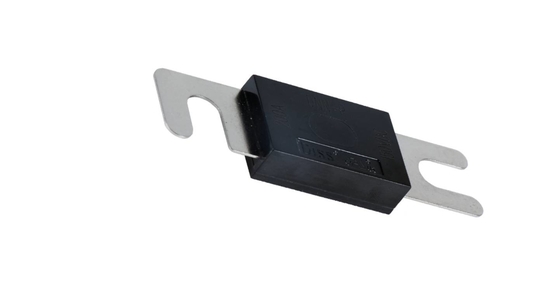

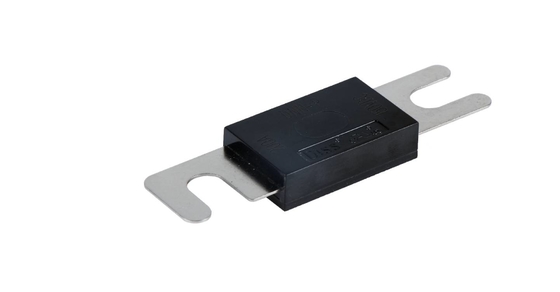

Low Voltage Automotive Fuse Cartridge Fuse Time Lag Fuse UL Fuse
Material:
Noumenon: Electric wood shell
Pins:Copper alloy
Product Presentation:
|
Rated Voltage 额定电压 |
80VDC/125VAC |
Type Protection 保护类别 |
Time-lag |
| Rated Current 额定电流 | 10A-500A |
Breaking Capacity 分断能力 |
DC2700A |
|
Meet the Requirement 符合要求 |
UL248-13,ISO8820,JASO-D622, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
制造材料/Manufacturing material
|
Component name 部件名称 |
Material 材料 |
|
Contact the foot 接触脚 |
Copper alloy 铜合金 |
|
Noumenon 本体 |
Electric wood shell 电木壳 |
性能标准/Performance criteria
| Load(测试电流) | Opening time(熔断时间) | |
| 10A～500A | ||
| 最小时间 min | 最大时间 max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(200A及以下) | 0 | 100 |
| 200%(200A以上) | 0 | 300 |
| 250%(200A及以下) | 0 | 60 |
| 250%(200A以上) | 0.8 | 120 |
| 600% | 0.02 | 10 |
|
电流特性曲线图/
Current characteristic curve
UL Certificate:
