Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Usage:: | PV,charging Pile，semiconductor Protection | Breaking Capacity:: | DC100KA |
| Rated Voltage:: | 500VAC | Rated Current:: | 630A |
| Keyword：: | Photovoltage Fuse | Size:: | 8mm |
| High Light: | Semiconductor Automotive Bolt Down Fuse,500VAC Automotive Bolt Down Fuse,Semiconductor High Breaking Capacity Fuse |
||

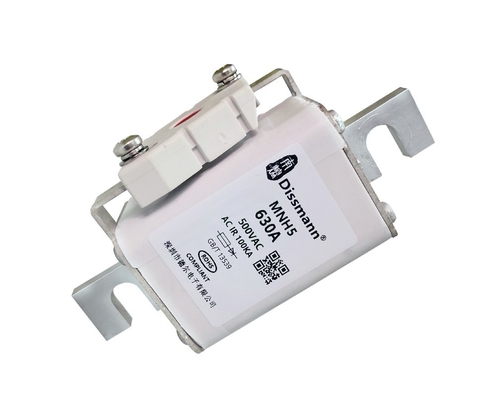

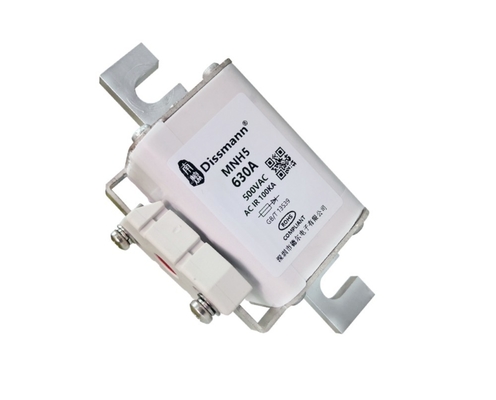

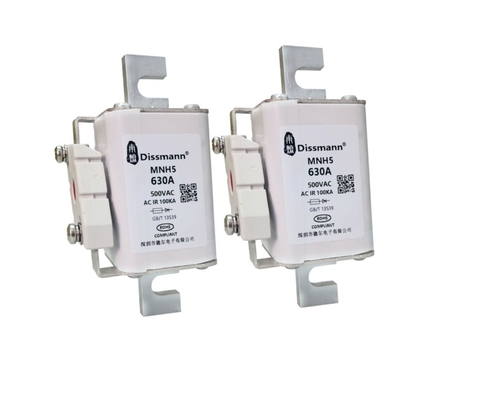

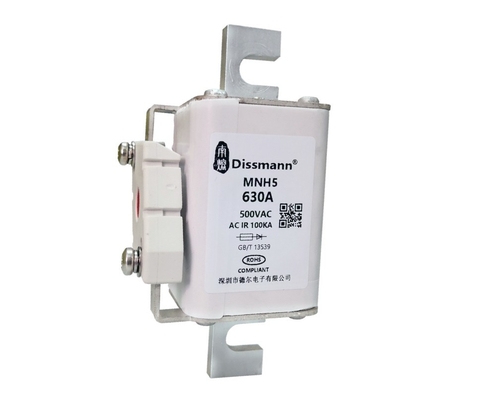

Automotive Bolt Down Fuse Semiconductor Fuse High Breaking Capacity Fuse
Material:
Noumenon: Ceramics
Pins: Zinc Alloy
Product Presentation:
|
Rated Voltage 额定电压 |
AC690V/DC440V 或低于 |
Type Protection 保护类别 |
aR |
| Rated Current 额定电流 | 500A-1250A |
Breaking Capacity 分断能力 |
AC690V/100kA DC440V/50kA (时间常数15-20ms) |
|
Meet the Requirement 符合要求 |
UL248-13,IEC60269.4 欧盟和RoHS 指令 |
Remarks 备注 |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
| 尺码 | A(Max) | B±2.5 | C±1.5 | D±1.5 | E(Max) | F(Max) | K | H±0.2 | G±0.5 |
| 4 | 90 | 150 | 100 | 100 | 120 | 25 | 62±2.5 | 8 | 16 |
| 4a(500-1250A) | 90 | - | 100 | 100 | 120 | 30 | 84±3 | 6 | - |
产品型号/Product type
|
Model 型号 |
Rated Current 额定电流A |
I2t(A2s) |
Power dissipation 功耗W |
Size code 尺寸代码 |
|
| 弧前 | 总 | ||||
| MNH5-G500A | 500 | 975 | 2250 | 60 |
4
|
| MNH5-G630A | 630 | 1732 | 4520 | 70 | |
| MNH5-G800A | 800 | 3150 | 8725 | 90 | |
| MNH5-G1000A | 1000 | 5665 | 15700 | 100 | |
| MNH5-G1250A | 1250 | 12100 | 28300 | 110 | |
| MNH5-AG500A | 500 | 975 | 2250 | 60 |
4a |
| MNH5-AG630A | 630 | 1732 | 4520 | 70 | |
| MNH5-AG800A | 800 | 3150 | 8725 | 90 | |
| MNH5-AG1000A | 1000 | 5665 | 15700 | 100 | |
| MNH5-AG1250A | 1250 | 12100 | 28300 | 110 | |
