Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Usage:: | Automotive,charging Pile,battery System | Rated Voltage:: | 58VDC |
| Current Rating:: | 100A | Breaking Capacity:: | DC1500A |
| Certification:: | UL, CCC, RoHS | Keyword:: | Automotive Blade Fuses |
| High Light: | Charging System Automotive Blade Fuses,CCC Automotive Blade Fuses,100a automotive fuse |
||

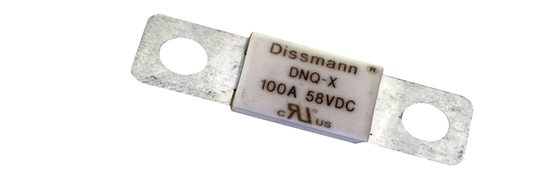

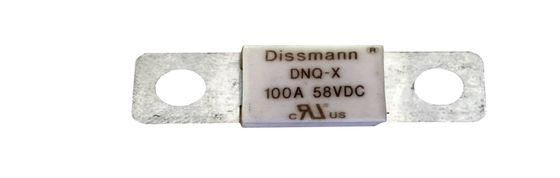

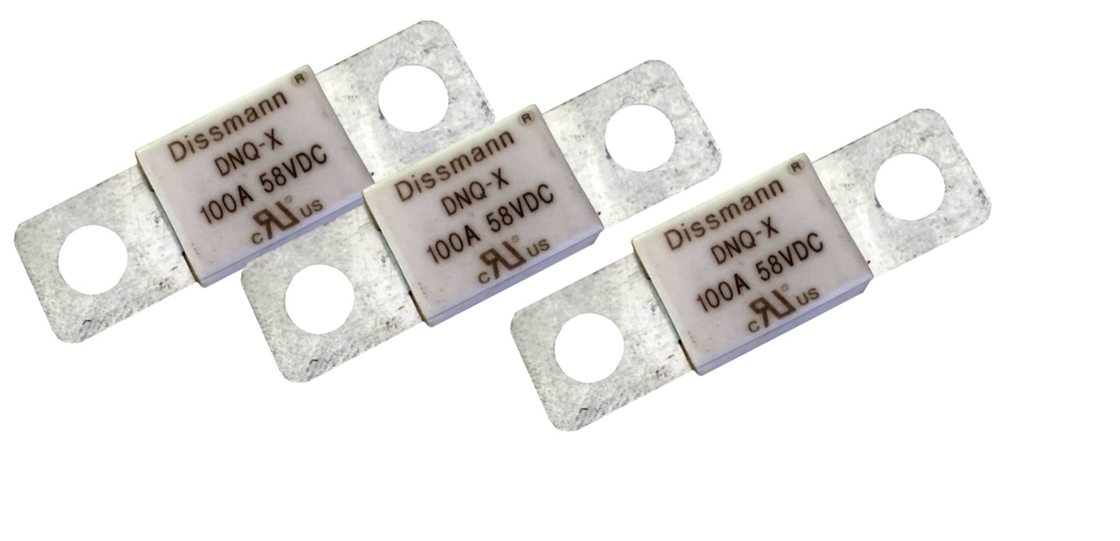

Automotive Fuse Low Voltage Fuse Charging System Fuse Bolt Down Fuse
Product detailed:
Mounting Bolt, optional for other installation
Comply RoHS directive
Rated Current:- 100A
Rated Voltage:- 58V DC
Breaking Capacity:DC2700A
Product presentation
|
Rated Voltage 额定电压 |
32VDC/58VDC/80VDC |
Type Protection 保护类别 |
Time-lag慢断 |
| Rated Current 额定电流 | 5A-200A |
Breaking Capacity 分断能力 |
DC1500A |
|
Meet the Requirement 符合要求 |
UL248-20,ISO8820,JASO-D622, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
制造材料/Manufacturing material
|
Component name 部件名称 |
Material 材料 |
|
Contact the foot 接触脚 |
Kirsite 锌合金/ Copper alloy 铜合金 |
|
Noumenon 本体 |
Ceramics 陶瓷 |
产品型号/Product type
|
Model 型号 |
Rated current 额定电流 |
Rated voltage 额定电压 |
Rated voltage 分断能力 |
| DNQ-A | 5A～200A | 32Vdc | 1.5KA |
| DNQ-X | 5A～200A | 58Vdc | 1.5KA |
| DNQ-H | 5A～200A | 80Vdc | 1.5KA |
| DNM-A | 5A～200A | 32Vdc | 1.5KA |
| DNM-X | 5A～200A | 58Vdc | 1.5KA |
| DNM-H | 5A～200A | 80Vdc | 1.5KA |
UL Certificate:
Product Applications
Test Equipment
Our Certificates
