Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 32VDC | Current Rating:: | 300A |
| Breaking Capacity: | DC2700A | Keyword:: | Mini Car Fuse |
| High Light: | 300A micro fuses for cars,32V micro fuses for cars,Ceramic mini car fuse |
||

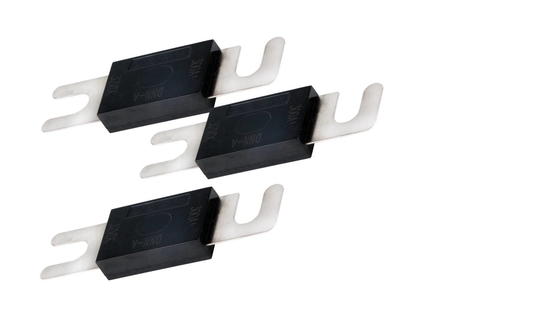

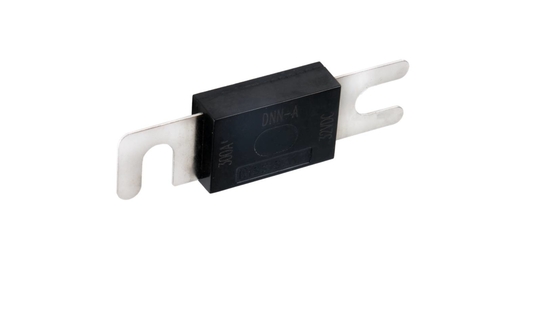

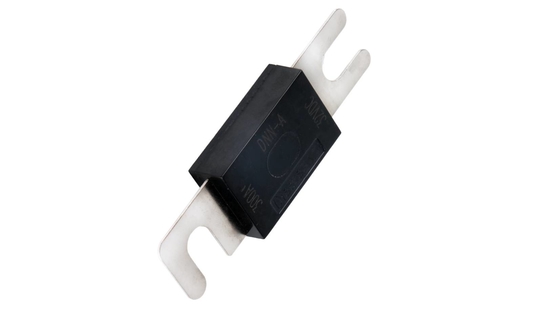

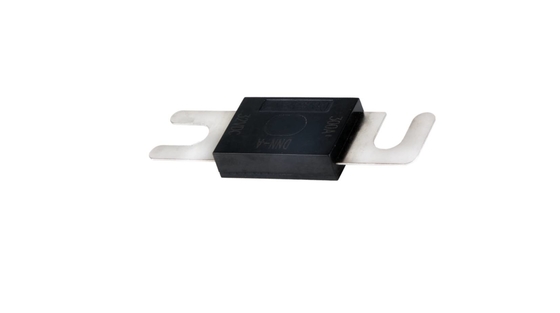

automotive fuse low voltage fuse Mini car fuse low voltage fuse
Product detailed:
Mounting Bolt, optional for other installation
Comply RoHS directive
Rated Current:- 300A
Rated Voltage:- 32V DC
Breaking Capacity:DC2700A
Packing:
20pieces/Tray(32.45*19.4*27cm)
100pcs/Inner Box(34*20*7cm)
500pcs/Carton(36*22*37cm)
Product presentation
|
Rated Voltage |
32VDC |
Type Protection |
Time-lag |
| Rated Current | 10A-500A |
Breaking Capacity |
DC2700A |
|
Meet the Requirement
|
UL248-13,ISO8820,JASO-D622, EU and RoHS Directive
|
Remarks |
UL |
Overall dimensions of the product(mm)
Manufacturing material
|
Component name |
Material |
|
Contact the foot |
Copper alloy |
|
Noumenon |
Electric wood shell |
Performance criteria
| Load | Opening time | |
| 10A～500A | ||
| Minimum time | maximum time | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(200A or lower) | 0 | 100 |
| 200%(200A above) | 0 | 300 |
| 250%(200A or lower) | 0 | 60 |
| 250%(200A above) | 0.8 | 120 |
| 600% | 0.02 | 10 |
Product type
|
Model |
Product cod |
Rated current (A) |
Installation requirement |
| DNN-A | DNN-A-35 | 35 |
Install bolt M8, recommended torque 10N·m ±1 N·m
|
| DNN-A-40 | 40 | ||
| DNN-A-50 | 50 | ||
| DNN-A-60 | 60 | ||
| DNN-A-80 | 80 | ||
| DNN-A-100 | 100 | ||
| DNN-A-125 | 125 | ||
| DNN-A-130 | 130 | ||
| DNN-A-150 | 150 | ||
| DNN-A-175 | 175 | ||
| DNN-A-200 | 200 | ||
| DNN-A-225 | 225 | ||
| DNN-A-250 | 250 | ||
| DNN-A-275 | 275 | ||
| DNN-A-300 | 300 | ||
| DNN-A-325 | 325 | ||
| DNN-A-350 | 350 | ||
| DNN-A-400 | 400 | ||
| DNN-A-425 | 425 | ||
| DNN-A-450 | 450 | ||
| DNN-A-500 | 500 |
