Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Usage:: | BDU,PDU,battery,electric Control | Rated Voltage:: | 500VDC |
| Current Rating:: | 150A | Keyword: | Automotive Fuse |
| High Light: | PDU fuse high breaking capacity,500VDC fuse high breaking capacity,150A ceramic electric fuse |
||

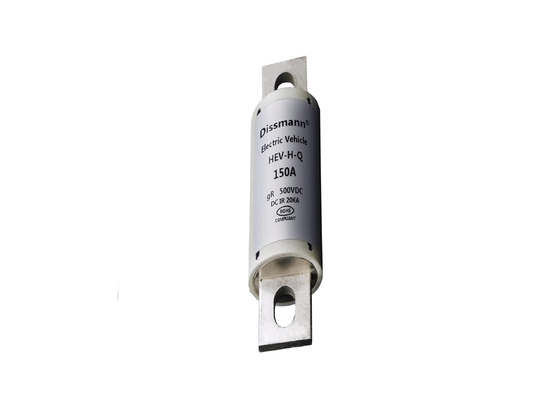

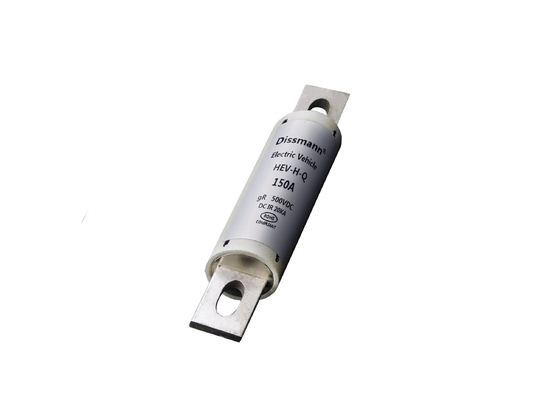

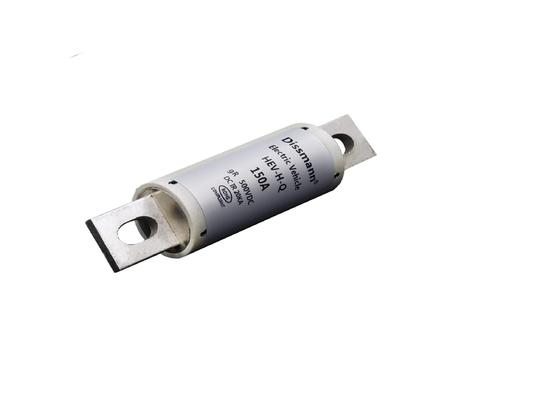

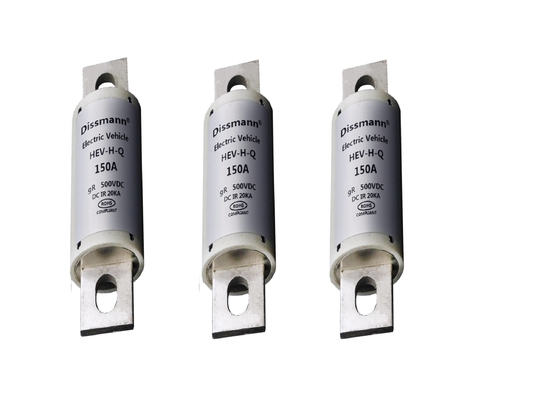

New Energy Electricle Fuse Automotive Fuse Power Electronic Fuse
Product detailed:
Mounting Bolt, optional for other installation
Comply RoHS directive
Rated Current:- 150A
Rated Voltage:- 500V DC
Breaking Capacity:20KA
Packing:
Piece Weight: 246±5g
Carton Dimension: L.274*W.225*H.230mm
Inner Box Dimension: L.225*W.140*H.50mm
Net Weight/Carton: 12.3kg
Gross Weight/Carton: 13.5kg
Carton Dimension:14180cm3
Product presentation
|
Rated Voltage |
AC/DC500V or lower |
Type Protection |
aR |
| Rated Current | 5A-800A |
Breaking Capacity
|
AC100KA,DC50KA (time constant≤15ms) |
|
Meet the Requirement |
UL248-20,ISO8820,JASO-D622, EU and RoHS Directive |
Remarks
|
— |
Overall dimensions of the product(mm)
|
Size code |
A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HZ1 | 81 | 22 | 40 | 55 | 66.5 | 9 | 15 | 3.3 | 14.75 |
| HZ2 | 92.2 | 25 | 53 | 68 | 77 | 9 | 18 | 3.2 | 13.5 |
| HZ3 | 92.2 | 33 | 53 | 68 | 75 | 9 | 22 | 5 | 12.5 |
| HZ4 | 109 | 38 | 53 | 69 | 89.5 | 10.5 | 25 | 6 | 20.7 |
| HZ5 | 110 | 50 | 53 | 70.5 | 90 | 10.5 | 38 | 6 | 20.7 |
| HZ6 | 161 | 63 | 53 | 87 | 126 | 13.5 | 50 | 10 | 34 |
| HZ7 | 177 | 76 | 81.5 | 113.5 | 139 | 16 | 60 | 10 | 28.4 |
Current characteristic curve
Product type
|
Model |
Rated Current ( A ) |
I2t(A2s) |
Power dissipation (W) |
Size code |
Install |
|
| Pre-Arc | After-Arc | |||||
| HEV-H-Q-35 | 35A | 33 | 145 | 8.5 | HZ1 |
Mounting Bolt M8 recommended torque 11N·m |
| HEV-H-Q-40 | 40A | 74 | 315 | 8 | ||
| HEV-H-Q-45 | 45A | 100 | 430 | 8 | ||
| HEV-H-Q-50 | 50A | 130 | 650 | 8.5 | ||
| HEV-H-Q-60 | 60A | 200 | 880 | 10 | ||
| HEV-H-Q-70 | 70A | 210 | 900 | 10.5 | HZ2 | |
| HEV-H-Q-80 | 80A | 300 | 1360 | 12.5 | ||
| HEV-H-Q-90 | 90A | 350 | 1500 | 15.5 | ||
| HEV-H-Q-100 | 100A | 460 | 1950 | 17.5 | ||
| HEV-H-Q-125 | 125A | 750 | 3430 | 26 | HZ3 | |
| HEV-H-Q-150 | 150A | 1000 | 4450 | 31 | ||
| HEV-H-Q-175 | 175A | 1400 | 6100 | 36 | ||
| HEV-H-Q-200 | 200A | 1800 | 8300 | 41 | ||
| HEV-H-Q-225 | 225A | 4600 | 23000 | 39 | HZ4 |
Mounting Bolt M10 recommended torque 20N·m |
| HEV-H-Q-250 | 250A | 6250 | 32100 | 41 | ||
| HEV-H-Q-275 | 275A | 7800 | 40000 | 46 | ||
| HEV-H-Q-300 | 300A | 9600 | 49000 | 52 | ||
| HEV-H-Q-325 | 325A | 13500 | 63000 | 54 | ||
| HEV-H-Q-350 | 350A | 14000 | 72000 | 59 | ||
| HEV-H-Q-400 | 400A | 18500 | 95500 | 66 | ||
| HEV-H-Q-450 | 450A | 24000 | 125000 | 75 | HZ5 | |
| HEV-H-Q-500 | 500A | 28500 | 147000 | 84 | ||
| HEV-H-Q-600 | 600A | 40500 | 203000 | 108 | ||
| HEV-H-Q-700 | 700A | 54000 | 295000 | 122 | HZ6 |
Mounting bolt M12 recommended torque 28N·m
|
| HEV-H-Q-800 | 800A | 75000 | 406000 | 130 | ||
| HEV-H-Q-1000 | 1000A | 90000 | 430000 | 146 | HZ7 | |
| HEV-H-Q-1200 | 1200A | 120000 | 590000 | 180 | ||
