Product Details:
|
| Material:: | Ceramic | Keyword:: | Ceramic Fuse |
|---|---|---|---|
| Colour:: | White | Usage:: | Electric Motor,automotive Car |
| Rated Voltage:: | 750VDC | Current Rating:: | 150A |
| Keyword: | Ceramic 150amp Fuse | ||
| High Light: | Fast Acting Ceramic Automotive Fuses,750VDC Ceramic Automotive Fuses,Stud Mount 150 amp automotive fuse |
||

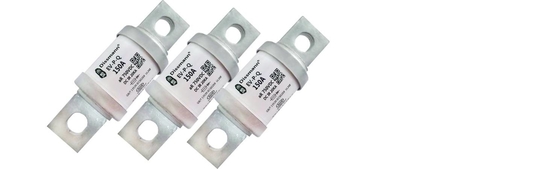

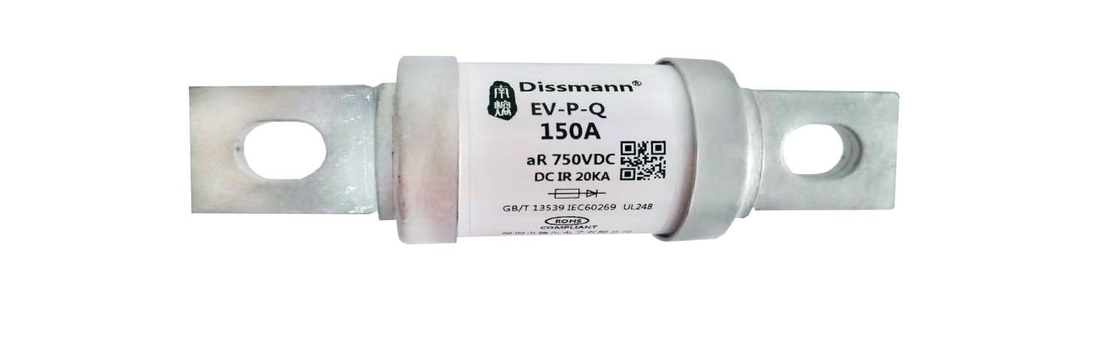

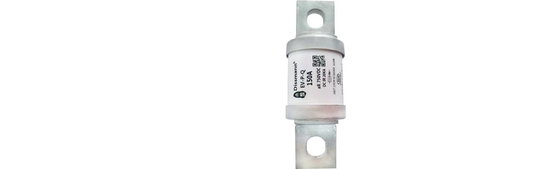

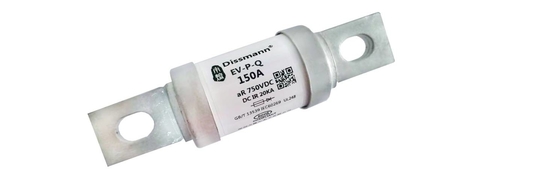

Fast acting automotive fuses 150amp automotive fuse ceramic car fuse
Material:
Noumenon: Ceramic
Pins:Copper alloy
Product presentation
| Rated Voltage | AC690/DC750V | Type Protection | aR |
| Rated Current | 10A-500A | Breaking Capacity | AC100KA,DC20KA |
| Meet the Requirement |
UL248-20,ISO8820,JASO-D622, Europe and RoHs Directive |
Remarks | UL |
Overall dimensions of the product(mm)
| Model |
Dimension code
|
A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-P-Q | VP1 | 109 | 30.4 | 68.5 | 90 | 9 | 25 | 4 | 13 |
| VP2 | 129.5 | 37.3 | 65.5 | 98.5 | 11 | 25 | 6 | 15 | |
| VP3 | 155.5 | 53.5 | 91.2 | 125.3 | 12.5 | 40 | 6 | 20 |
Product type
| Model |
Rated current (A) |
I²t(A²s) |
Power consumption ( W) |
Size Code | Install | |
| Pre-Arc | After-Arc | |||||
| EV-P-Q-30 | 30 | 450 | 950 | 9 | VP1 | Mounting Bolt M8 recommended torque 11N·m |
| EV-P-Q-40 | 40 | 750 | 1800 | 11 | ||
| EV-P-Q-50 | 50 | 1250 | 2800 | 13 | ||
| EV-P-Q-60 | 60 | 1800 | 4700 | 15 | ||
| EV-P-Q-70 | 70 | 2400 | 6300 | 17 | ||
| EV-P-Q-80 | 80 | 3000 | 8500 | 20 | ||
| EV-P-Q-100 | 100 | 4800 | 12000 | 22 | ||
| EV-P-Q-125 | 125 | 1300 | 23800 | 22 | VP2 | Mounting Bolt M10 recommended torque 20N·m |
| EV-P-Q-150 | 150 | 1550 | 34000 | 25 | ||
| EV-P-Q-175 | 175 | 1800 | 46500 | 30 | ||
| EV-P-Q-200 | 200 | 2450 | 55000 | 34 | ||
| EV-P-Q-250 | 250 | 4300 | 95000 | 42 | ||
| EV-P-Q-300 | 300 | 6200 | 142000 | 50 | ||
| EV-P-Q-350 | 350 | 9150 | 200000 | 60 | ||
| EV-P-Q-400 | 400 | 12300 | 260000 | 69 | ||
| EV-P-Q-350 | 350 | 59000 | 158000 | 65 | ||
| EV-P-Q-400 | 400 | 77000 | 205000 | 80 | ||
| EV-P-Q-450 | 450 | 96000 | 269000 | 95 | VP3 | Mounting Bolt M12 recommended torque 28N·m |
| EV-P-Q-500 | 500 | 118000 | 328000 | 110 | ||
| EV-P-Q-600 | 600 | 175000 | 471000 | 115 | ||
| EV-P-Q-800 | 800 | 302000 | 800000 | 140 |
