EV Battery High Voltage Fuse , ESS Fuse For Commercial Truck Customer

EV Battery High Voltage Fuse , ESS Fuse For Commercial Truck Customer
EV Battery High Voltage Fuse , ESS Fuse For Commercial Truck Customer EV Battery High Voltage Fuse , ESS Fuse For Commercial Truck Customer

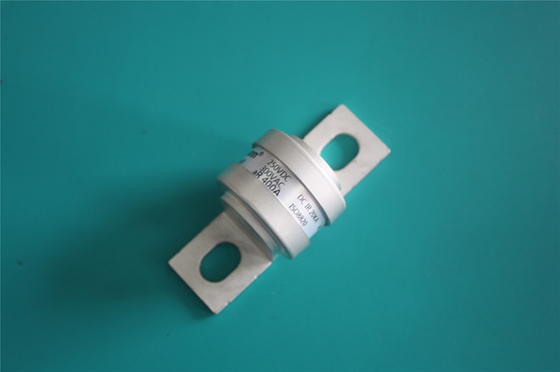

Large Image :  EV Battery High Voltage Fuse , ESS Fuse For Commercial Truck Customer

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL
Model Number: BS88-HBD
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8days
Payment Terms: L/C/TT
Supply Ability: 1,000,000pcs

EV Battery High Voltage Fuse , ESS Fuse For Commercial Truck Customer

Description
Material: Ceramic Color: White
Type Of Category: AR Installation: Bolt On
Rated Current: 6A-700A Rated Voltage: DC750V
Breaking Capacity: DC20KA Application: Electric Vehicle Drive Power System, Power Conversion System, Energy Storage And Power Battery
High Light:

DC750V High Voltage Fuse

,

ESS High Voltage Fuse

,

Commercial Truck ESS Fuse

China EV battery fuse supplier

Basic information of the EV battery fuse

Bolted fast fuse,dimension and performance conform:GB13539,IEC60269,UL248

Rated Voltage: DC750V or lower

Rated Current:16A/20A/32A/40A

Class of Protection:aR

Breaking Capacity:DC20kA

Compliance with EU and China RoHS directives

Compliance with the requirements of QC/T413,ISO8820,JASOD622

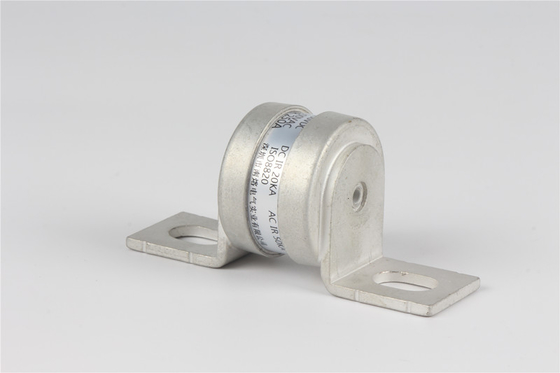

EV Battery High Voltage Fuse , ESS Fuse For Commercial Truck Customer 0



Dimension of the EV battery fuse

EV Battery High Voltage Fuse , ESS Fuse For Commercial Truck Customer 1



Application of the EV battery fuse

This series of products are round-tube bolt-connected fast fuses, which have the characteristics of small size, and high reliability. Applicable to a wide temperature range, can withstand high-intensity mechanical vibration and shock, temperature shock and strong chemical load, suitable for road vehicle industry applications, can be used as electric vehicle drive power system, power conversion system, energy storage and power battery, energy storage Short-circuit and backup protection for capacitors, inverter controllers, chargers, wires, and other automotive components and equipment.Short circuit protection fuses especially for pure electric vehicles and hybrid electric vehicles



Electrical parameters of EV battery fuse

Model Code

Rated Current

A

100% voltage drop

mV

HBD-EPL HBD-16EPL 16 266.6
HBD-EPL HBD-20EPL 20 317.4
HBD-EPL HBD-32EPL 32 253.5
HBD-EPL HBD-40EPL 40 224.4



FAQ

Question:What are the advantages of your BS88 series fuse product compared with the Sinofuse?

Answer:Our BS88 series fuse product can reach a maximum current of 700 amperes, has UL certification, and has a more favorable price and cost.
