Product Details:
|
| Material:: | Fiber Pipe | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 750VDC | Rated Current:: | 150A |
| Breaking Capacity:: | DC20KA | Standard:: | UL248-20、ISO8820、 JASO-D622、ROHs |
| Usage:: | Automotive,Charging Pile,industrial Power Distribution Cabinet | Keyword：: | Automotive Fuse |
| High Light: | 750VDC Electric Vehicle Fuses,ROHs Electric Vehicle Fuses,150A Low Current Fuse |
||

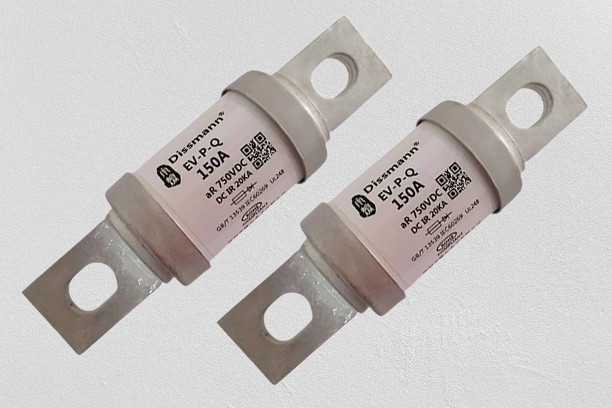

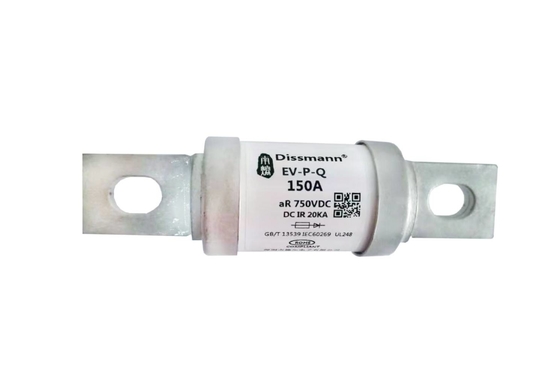

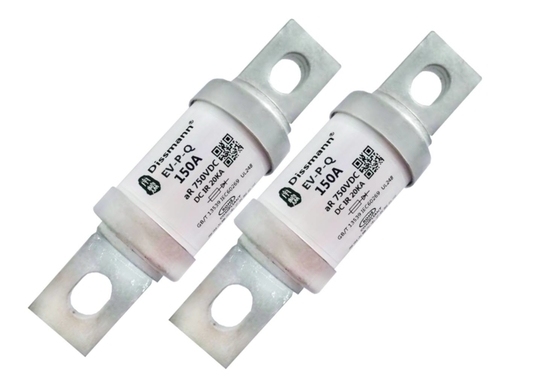

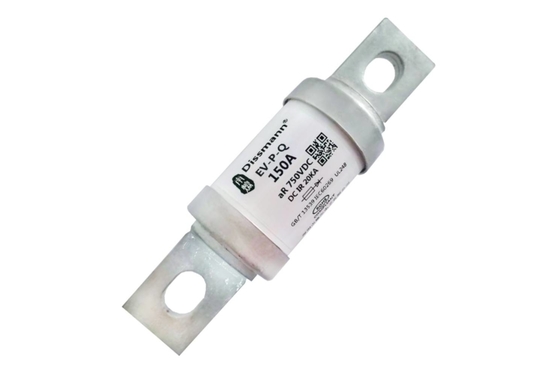

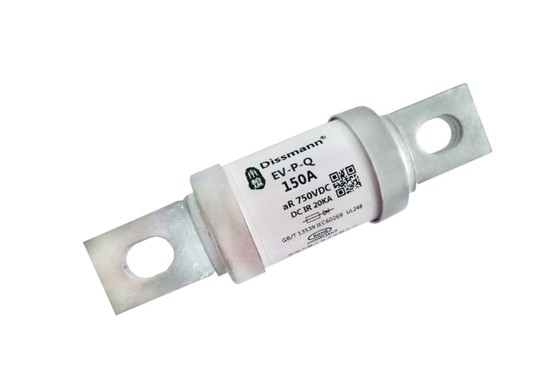

Low Current Fuse 750volt DC Fuse Low Voltage Electric Vehicle Fuse
Material:
Noumenon: fiber pipe
Pins: Alloy
Product Presentation:
|
Rated Voltage 额定电压 |
AC690/DC750V |
Type Protection 保护类别 |
aR |
| Rated Current 额定电流 | 10A-500A |
Breaking Capacity 分断能力 |
AC100KA,DC20KA |
|
Meet the Requirement 符合要求 |
UL248-20,ISO8820,JASO-D622, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
| 型号 | 尺寸代码 | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-P-Q | VP1 | 109 | 30.4 | 68.5 | 90 | 9 | 25 | 4 | 13 |
| VP2 | 129.5 | 37.3 | 65.5 | 98.5 | 11 | 25 | 6 | 15 | |
| VP3 | 155.5 | 53.5 | 91.2 | 125.3 | 12.5 | 40 | 6 |
20 |
产品型号/Product type
| Model型号 |
Rated current 额定电流A |
I²t(A²s) |
Power consumption 功率损耗 W |
Size Code 尺寸代码 |
Install安装 | |
| 弧前 | 熔断 | |||||
| EV-P-Q-30 | 30 | 450 | 950 | 9 | VP1 |
Mounting Bolt M8 recommended torque 11N·m 安装螺栓M8推荐扭矩11N·m |
| EV-P-Q-40 | 40 | 750 | 1800 | 11 | ||
| EV-P-Q-50 | 50 | 1250 | 2800 | 13 | ||
| EV-P-Q-60 | 60 | 1800 | 4700 | 15 | ||
| EV-P-Q-70 | 70 | 2400 | 6300 | 17 | ||
| EV-P-Q-80 | 80 | 3000 | 8500 | 20 | ||
| EV-P-Q-100 | 100 | 4800 | 12000 | 22 | ||
| EV-P-Q-125 | 125 | 1300 | 23800 | 22 | VP2 |
Mounting Bolt M10 recommended torque 20N·m 安装螺栓M10推荐扭矩20N·m
|
| EV-P-Q-150 | 150 | 1550 | 34000 | 25 | ||
| EV-P-Q-175 | 175 | 1800 | 46500 | 30 | ||
| EV-P-Q-200 | 200 | 2450 | 55000 | 34 | ||
| EV-P-Q-250 | 250 | 4300 | 95000 | 42 | ||
| EV-P-Q-300 | 300 | 6200 | 142000 | 50 | ||
| EV-P-Q-350 | 350 | 9150 | 200000 | 60 | ||
| EV-P-Q-400 | 400 | 12300 | 260000 | 69 | ||
| EV-P-Q-350 | 350 | 59000 | 158000 | 65 | ||
| EV-P-Q-400 | 400 | 77000 | 205000 | 80 | ||
| EV-P-Q-450 | 450 | 96000 | 269000 | 95 | VP3 |
Mounting Bolt M12 recommended torque 28N·m 安装螺栓M12推荐扭矩28N·m |
| EV-P-Q-500 | 500 | 118000 | 328000 | 110 | ||
| EV-P-Q-600 | 600 | 175000 | 471000 | 115 | ||
| EV-P-Q-800 | 800 | 302000 | 800000 | 140 |
