Low Speed Electric Vehicle Fuses , Commercial Vehicle DC750V Automotive Fuses

DC750V BS88 series commercial vehicle fuse supplier in China

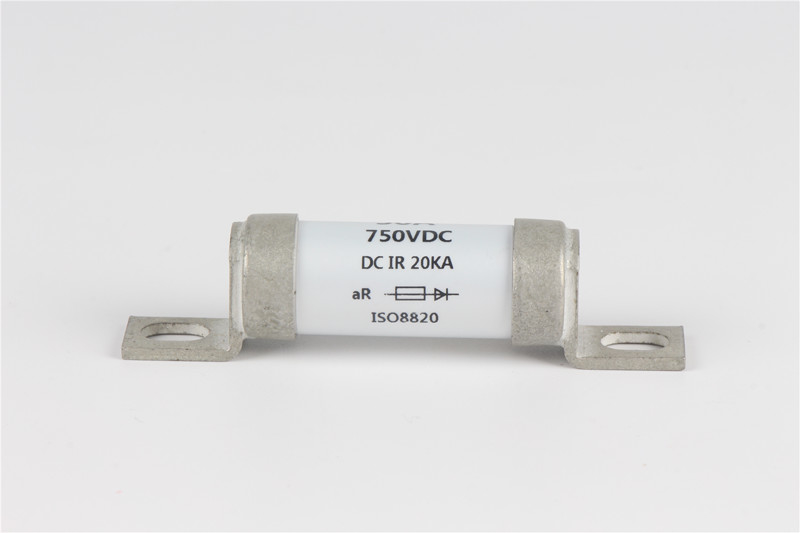

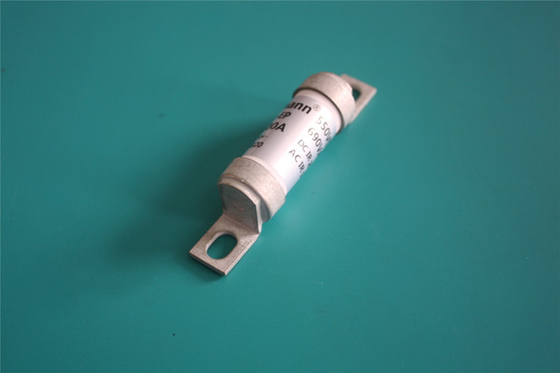

Description of the DC750V BS88 series fuse

This BS88 series fuse general design for EV/HEV, are round-tube bolt-connected fast fuses, which have the characteristics of small size, and high reliability.The dimension and performance conform to UL248-20,ISO8820,JASO-D622,GB/T13539,RoHS compliant.They are suitable line in DC750V,rated current at 6A-700A,breaking capacity of DC20KA.

Dimension of the DC750V BS88 series fuse

Installation conditions

Installation requirements: EPL mounting bolts M6, recommended torque 4N·m

Normal working conditions

a) The fuse is installed separately in natural air without ventilation. Except for the connecting wires, there are no other heat-generating parts or heat-dissipating parts within 1m.

b) The fuse connection terminal should ensure stable and reliable electrical contact. The contact resistance should not significantly affect the operation of the fuse.

c) The fuse can be installed vertically, horizontally or obliquely. If you rely on spring pressure to ensure the electrical connection of the fuse, you should choose a suitable location during installation to avoid the adverse effects of gravity and vibration on the electrical connection.

FAQ

Question:What are the advantages of your BS88 series fuse product compared with the Sinofuse?

Answer:Our BS88 series fuse product can reach a maximum current of 700 amperes, has UL certification, and has a more favorable price and cost.
