Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-800A | Rated Voltage: | AC/DC1000V |
| Breaking Capacity: | AC100KA/DC20KA | Type Protection: | AR |
| Keyword: | EVC Fuse | Application: | Charging Pile、Charging Pile Module |
| High Light: | Bussmann Electric Vehicle Fuses,EVC AC DC Fuse |
||

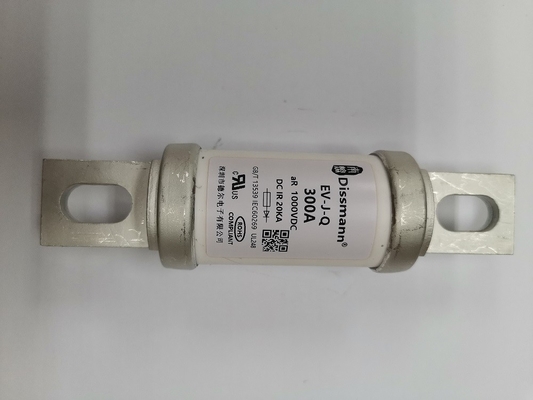

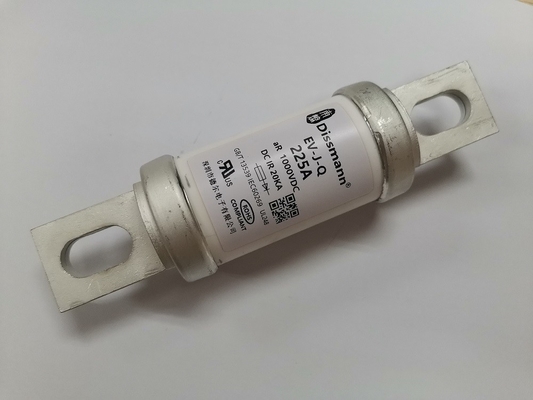

1000VDC ceramic bolt type EV fuse design for EVC AC DC
Product details of the 1000VDC EV fuse
This EV fuse can be in line with the circuit of 1000VDC,rated current at 10A-800A,breaking capacity up to AC100KA or DC20KA.The dimension and performance conform to UL248,GB13539,IEC60268, GB31465.
Application
This series products EV-J-Q are Ceramic Bolt Fuse; Applicable for road vehicle. with small size, High Breaking capacity, Temperature shock resistance,Current surge, Mechanical vibration and shock, and Strong chemical load. Applicable for electric vehicle drive power system,Energy storage and power batteries,Energy storage capacitor,Frequency conversion controller,charger, wire and other automotive parts and equipment’s short circuit, overload and backup protection.
Material
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
Dimension(mm)
FAQ
Question:What is your fast production delivery?
Answer:We usually need 5-7 workiing days for delivery time if have materials,but if you have any special or urgent order,i will try help to apply for a top urgent order with faster delivery time for you.
