Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-800A | Rated Voltage: | AC/DC1000V |
| Keyword: | 1000VDC EV Fuses | Breaking Capacity: | DC20KA |
| Installation: | Bolt On | Application: | Overload And Backup Protection |
| High Light: | 800A Ceramic Fuses,Ceramic Ess Fuse,Bolted EV Fuses |
||
Any datasheet&specification,pls feel free to contact by email:holly@delfuse.com or whatsapp me:+8618813915908

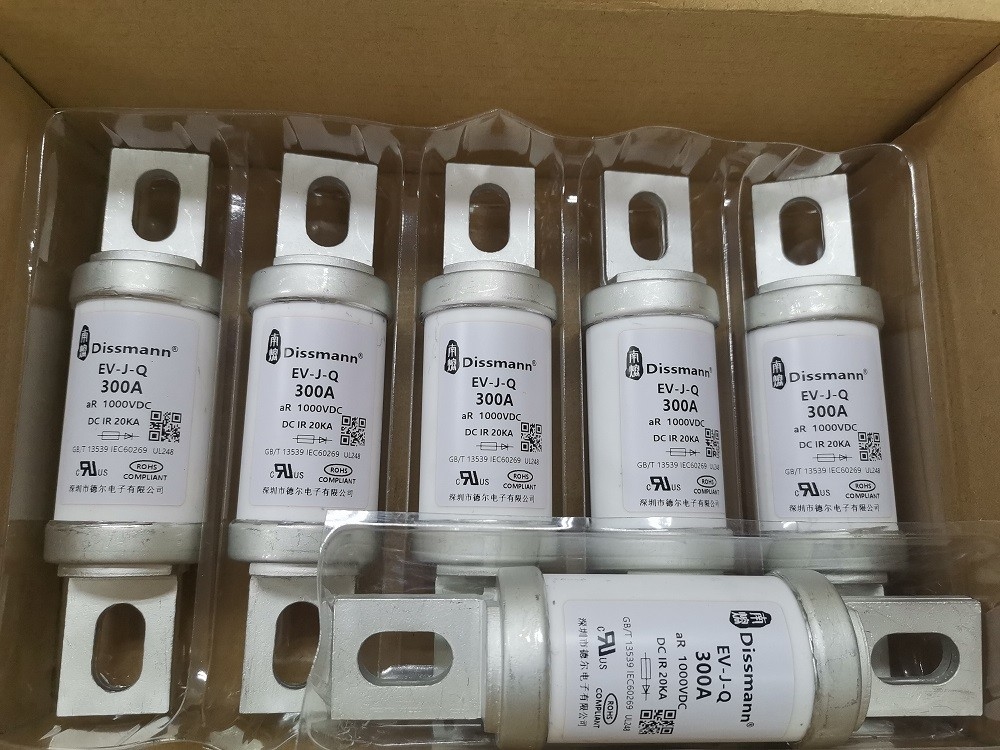

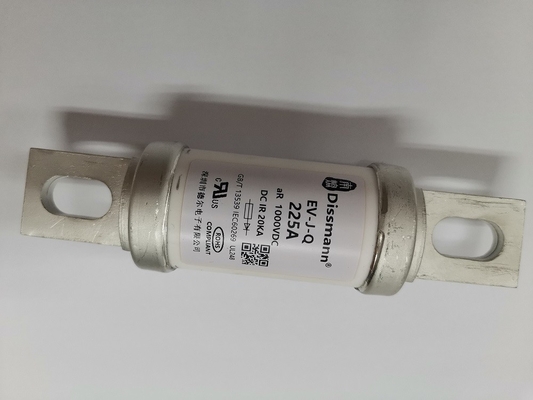

Electric vehicle ceramic fuses bolted connection
Details of the EV ceramic fuse
The dimension and performance conform to UL248,GB13539,IEC60268, GB31465.The rated current range at 10A-800A,rated voltage of DC/AC1000V,breaking capacity of DC20KA.This series products EV-J-Q are Ceramic Bolt Fuse; Applicable for road vehicle. with small size, High Breaking capacity, Temperature shock resistance,Current surge, Mechanical vibration and shock, and Strong chemical load.
Applicable of the EV ceramic fuse
Applicable for electric vehicle drive power system,Energy storage and power batteries,Energy storage capacitor,Frequency conversion controller,charger, wire and other automotive parts and equipment’s short circuit, overload and backup protection.
Dimension of the EV ceramic fuse
| Model | Size Code | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-J-Q | VJ1 | 116 | 30.4 | 75.5 | 97 | 9 | 25 | 4 | 13 |
| VJ2 | 139.75 | 37.3 | 75.75 | 108.75 | 11 | 25 | 6 | 15 | |
| VJ3-1 | 148 | 53.5 | 90.1 | 117.9 | 12.5 | 40 | 8 | 20 | |
| VJ3-2 | 173 | 53.5 | 114.7 | 143 | 12.5 | 40 | 6 | 20 |
Manufacturing material
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
UL certificate of the Mini size fuse
