Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 5A-800A | Rated Voltage: | 1000VDC |
| Breaking Capacity: | DC30KA | Category: | AR |
| Keyword: | Electric Vehicle Fuse | Application: | Pure Electric Vehicles And Hybrid Electric Vehicles |
| High Light: | HEV High Voltage Automotive Fuse,DC30KA Bolt On Fuses,300 Amp HEV Fuses |
||
Any datasheet&specification,pls feel free to contact by email:holly@delfuse.com or whatsapp me:+8618813915908
DC1000V HEV series high breaking capacity fuses supplier

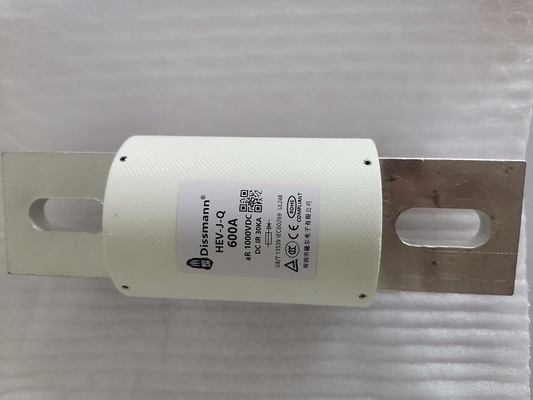

Product details of the HEV series fuse
This HEV series fuse is round tube bolt-connected fuses,can be line in circuit of DC1000V,rated current range of 5A-800A,breaking capacity up to DC30KA.Its tube material is different from the EV series. HEV is made of glass fiber and EV is ceramic material,which have the characteristics of small size, fast blowing, low I2t, and high reliability.
Application of the HEV series fuse
It is suitable for applications in vibration environments such as rail transit and motor vehicles.
Short circuit protection fuses especially for pure electric vehicles and hybrid electric vehicles.
1000V DC fuse specially designed for pure electric vehicle and hybrid vehicle power battery.
Provide fuse bases specially customized for harsh automotive environments.
Product dimension of the HEV series fuse
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HF1 | 124 | 25 | 78 | 100 | 109 | 9 | 18 | 4 | 13.5 |
| HF2 | 117 | 33 | 78 | 93 | 100 | 9 | 22 | 5 | 12.5 |
| HF3 | 139.5 | 38 | 83.5 | 99.5 | 120 | 10.5 | 25 | 6 | 20.7 |
| HF4 | 146.5 | 50 | 89.5 | 106 | 126.5 | 10.5 | 38 | 6 | 20.7 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 33 |
Current characteristic curve
FAQ
Question:Does this 1000VDC Fuse have a base?
Answer:Now this 1000VDC fuse has no base, only 250A has a base.
