Product Details:
|
| Protection Type: | AR | Materials: | Ceramic |
|---|---|---|---|
| Breaking Capacity: | DC50KA | Certifications: | TUV |
| Highlight: | MEV Series Square Fuses,Charging Pile Square Fuses,Dissmann Ceramic Automotive Fuses |
||

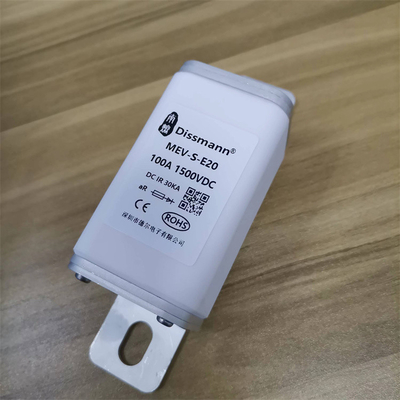

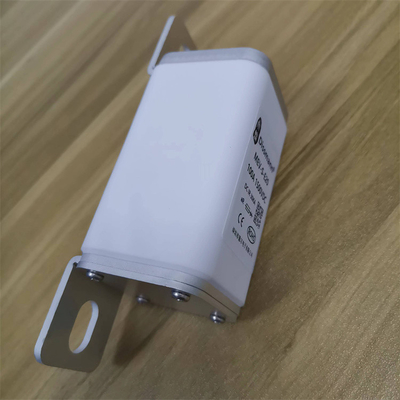

Dissmann Fuse MEV-S-E20 1500VDC 100A
Basic information of the MEV series square ceramic fuse:
1.MEV-J C20/D20/D23 series Rated Voltage:1000VDC,Rated Current:50A-500A,Breaking capacity:DC50KA, TUV certification:B 113737 0001 ;
| MEV-J 1000VDC | ||||
| Product Code | Rated Current A |
I²t(A²Sec) | Power Dissipation | |
| Pre-arc | Total | W | ||
| MEV-J-C20 MEV-J-D23 |
50 | 140 | 680 | 13 |
| 63 | 250 | 1300 | 15 | |
| 80 | 510 | 2550 | 20 | |
| 100 | 1100 | 5200 | 28 | |
| 125 | 2000 | 9800 | 32 | |
| 160 | 4100 | 20000 | 38 | |
| 200 | 8500 | 42000 | 44 | |
| 250 | 13000 | 60000 | 48 | |
| 300 | 18000 | 90000 | 53 | |
| 315 | 23000 | 110000 | 60 | |
| MEV-J-D20 MEV-J-D23 |
350 | 24000 | 125000 | 70 |
| 400 | 38000 | 190000 | 80 | |
| 450 | 53000 | 260000 | 85 | |
| 500 | 69500 | 340000 | 95 | |
2.MEV-J E00/E03/E60/E63/E70/E73 series Rated Voltage:1000VDC,Rated Current:32A-400A,Breaking capacity:DC50KA;
| MEV-J 1000VDC | ||||
| Product Code | Rated Current A |
I²t(A²Sec) | Power Dissipation | |
| Pre-arc | Total | W | ||
| MEV-J-F00 MEV-J-F03 MEV-J-F60 MEV-J-F63 MEV-J-F70 MEV-J-F73 |
160 | 2800 | 19000 | 50 |
| 200 | 5000 | 31500 | 60 | |
| 250 | 9000 | 60000 | 68 | |
| 315 | 16000 | 107000 | 81 | |
| 350 | 22000 | 145500 | 86 | |
| 400 | 32000 | 214500 | 92 | |
| 450 | 44500 | 297000 | 9 | |
| 500 | 62000 | 414000 | 103 | |
| 550 | 82000 | 548000 | 109 | |
