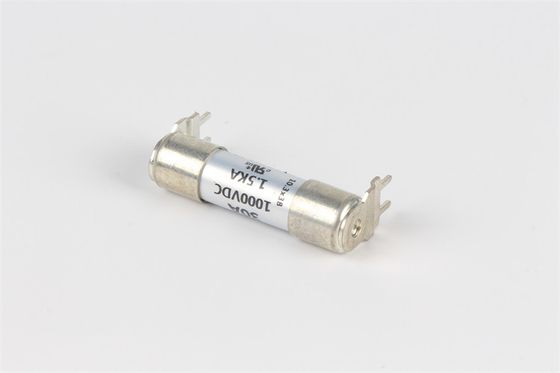

10x38mm Ceramic Fuse High Voltage HD10D.J03 Solder Plate Mount Fuse UL Certified Made in China

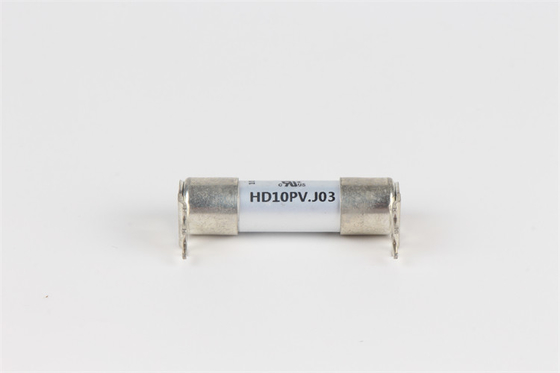

10*38mm HD10PV.J03 1000VDC 30A ceramic fuse

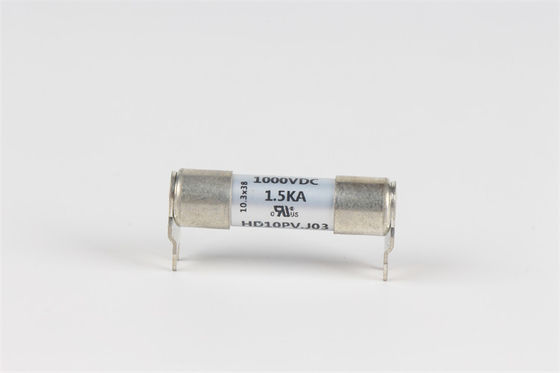

Dimensions drawing of the HD10D.J03 series fuse

Basic information of the 10*38 ceramic fuse:

Executive standard:

• UL248/
• GB13593/
• IEC60268/
• GB31465

Breaking capacity:

• HD10D 500VDC       10-20A 33KA 25-50A 6KA；
• HD10V 700VDC       10-20A 33KA 25-50A 6KA；
• HD10P 750VDC       10-20A 33KA 25-50A 6KA；
• HD10PV 1000VDC   10-40A 1.5KA；

UL Certificate No.:

• JDYX2.E343461
• JDYX8.E343461

Rated Voltage and Rated Current:

• HD10D 500VDC     10-50A；
• HD10V 700VDC     10-50A；
• HD10P 750VDC     10-50A；
• HD10PV 1000VDC 10-40A ；

Service conditions:

• The fuse operates under the following normal conditions of use, without additional correction.
• When the normal use conditions are exceeded, if they are within the allowable use conditions, some parameters may need to be corrected or consulted. If the scope of allowable use conditions is exceeded, our company should be consulted and the work adaptability evaluation and test of the conditions should be carried out.
• It is recommended that the current value of long-term current flow should not be greater than 80% of the rated current.
• Please refer to the temperature evaluation curve for the use of overtemperature.
• Ambient air temperature
• Normal use conditions: - 5 ° C~40 ° C.
• Allowable use conditions: - 40 ° C~85 ° C.

Transportation and storage:

1.Product storage temperature:

• -40°C~105°C.
• The relative humidity is not more than 70% at 40 ° C;
• The relative humidity at 30 ° C is not more than 80%;
• Under 20 ° C, the relative humidity is not more than 90%.

2.Packaging storage temperature:

• -40°C~70°C.
• The relative humidity is not more than 40% at 40 ° C;
• The relative humidity is not more than 50% at 30 ° C;
• Under 20 ° C, the relative humidity is not more than 90%, and there is no condensation.
