Product Details:
|
| Rated Voltage: | 1500VDC | Rate Current: | 1A~40A |
|---|---|---|---|
| Safety Standard: | UL248, IEC60269, RoHS | Breaking Capacity: | DC 10kA |
| Certificates: | UL, TUV | Size: | 10x85mm |
| High Light: | 1500VDC Solar PV Fuses,10x85 Solar PV Fuses,Surge Protection photovoltaic fuse |
||

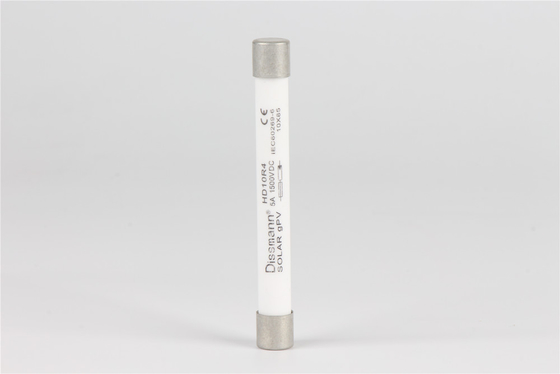

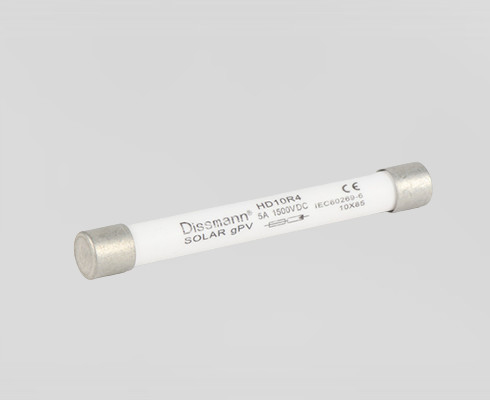

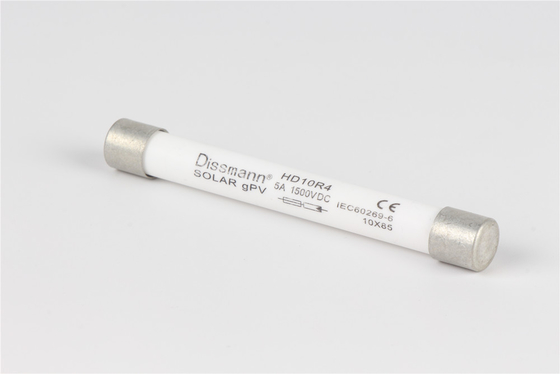

Surge Protection Solar PV Fuses 10x85 Size 1500VDC PV Photovoltaic
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
Surge Protection Solar PV Fuses
Many kinds of Surge Protection Solar PV Fuses
Current rating: 15A
Voltage rating: 1500VDC
Breaking capacity:DC 10kA
Product Presentation:
|
Rated Voltage
|
DC1500V |
Characteristic
|
gPV/aR |
| Rated Current | 1A-40A |
Breaking Capacity
|
DC10KA |
|
Meet the Requirement
|
UL248-13,IEC60269.6, EU and Rosh Directive |
Remarks
|
UL,TUV |
Overall dimensions of the product(mm)
Performance criteria
| Blowing current | Fusing time |
| 200% | ＜4min |
| 135% | ＜1h |
| 113% | ＞1h |
| 100% | ＞4h |
Current characteristic curve
Product type
| Model |
Rated current
|
Rated voltage
|
Breaking capacity
|
| HD10R4/HD10W4 | 1A～20A | 1500Vdc | 10KA |
| HD10R4.J03/HD10W4.J03 | 1A～40A | 1500Vdc | 10KA |

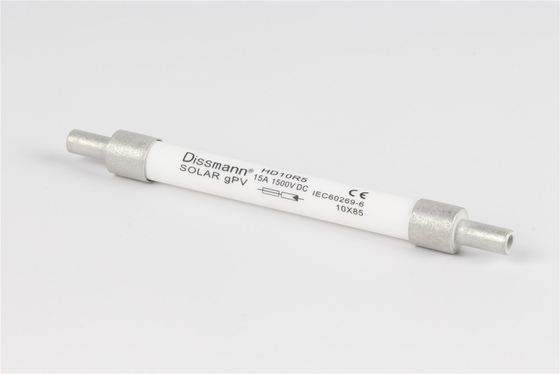

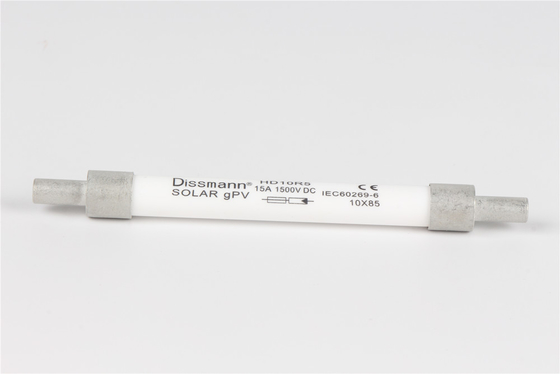

| HD10R5 | 1A～20A | 1500Vdc | 10KA |
| HD14R6 | 20A～40A | 1500Vdc | 10KA |
| HDPV5 | 40A | 1500Vdc | 10KA |
