Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-800A | Rated Voltage: | DC1000V |
| Breaking Capacity: | DC20KA | Category: | AR |
| Executive Standard: | UL248-20、ISO8820、JASO-D622、GB/T13539、RoHS Compliant | Appliaction: | Energy Storage And Power Batteries |
| High Light: | DC20KA High Voltage Automotive Fuse,DC1000V EV Fuses,UL Certified Truck Fuses |
||

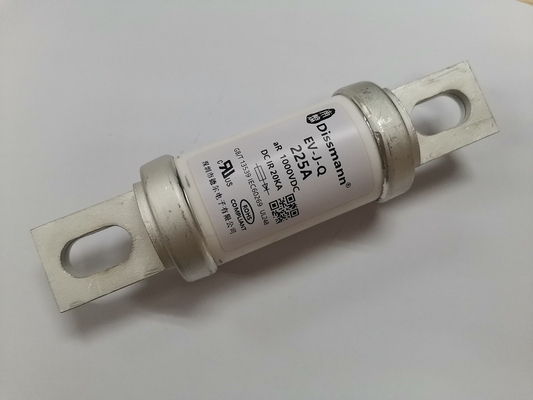

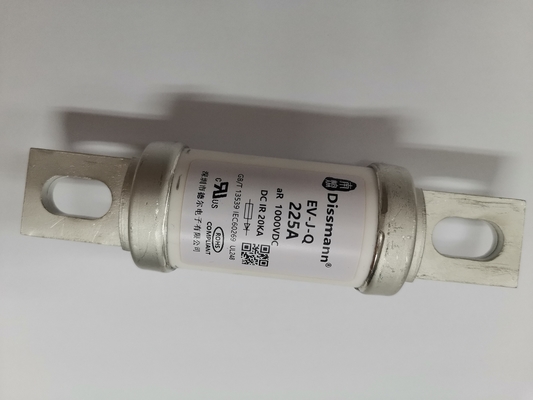

China DC1000V EV series ceramic fuses aR protection
Product description of DC1000V EV fuse
We are Dissmann Fuse was founded in 2000, focusing on the fuse and the surrounding product development, production, all products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.This EV series fuses have good protection on many charging piles. The customers of the famous charging piles include:Star Charge,Sinexcel,Winlin,Charge Core etc.
Structure of the EV series fuse
The fuse tubes of electric vehicles are made of high temperature resistant ceramic materials, which have high fire resistance and solid hardness.
The melt is sealed in a smelting tube so that 99.99% of the pure silver becomes a variable cross section melt. The smelting pipe is filled with chemically treated high purity quartz sand and specially treated chemical materials for arc to extinguish agglomeration.
Dimension of the EV series fuse
| Model | Size Code | A±3 | B±1.5 | C±2 | D±2.5 | F±1 | G±1 | H±0.5 | J±1 |
| EV-J-Q | VJ2 | 140 | 37.3 | 77 | 109.5 | 11 | 25 | 6 | 20 |
Product characteristic
| Model |
Rated Current (A) |
100%--1 hour Voltage Drop mV |
Size Code | Installation |
| EV-J-Q-250 | 250 | 134 | VJ2 | Install Bolt M10, Recommend Torque: 20Nm |
Packing method, shipping, storage
Avoid rain and snow and mechanical damage during packaging and transportation.
Storage temperature
Products storage temperature: -40℃～105℃. The relative humidity is not more than 70% when 40℃. The relative humidity is not more than 80% when 30℃. The relative humidity is not more than 90% below 20℃.
Packaging storage temperature: -40℃～70℃. The relative humidity is not more than 40% when 40℃. The relative humidity is not more than 50% when 30℃. The relative humidity is not more than 90% below 20℃, no condensation.
Fuses can be stored for average 1 year when the relative humidity ≦75%.
Not in the open air, fuses can be stored at most 30 days when the relative humidity 95%.
The number of stacking layers of the outer packaging carton does not exceed 5 layers; the total stacking height does not exceed 1.5m, and should take measures to prevent collapse.
Fireproof, waterproof, and avoid contact with liquid, prevent sharp objects from penetrating, damage the cabinet, avoid contact with corrosive substances and gases.
FAQ
Answer:What certification requirement are met with your BS88 series products?
Question:The BS88 series fuse dimension and performance conform to GB13539,IEC60269,UL248.
