Product Details:
|
| Rated Voltage: | 240VAC/150VDC | Rated Current: | 6-900A |
|---|---|---|---|
| Protection Type: | AR | Breaking Capacity: | DC20KA/AC100KA |
| Certification: | UL/CCC | Meet The Requirements: | GB13539/IEC60269/UL248 |
| High Light: | DC150V BS88 Fuse,AC240V BS88 Fuse,CCC Dissmann Fuse |
||

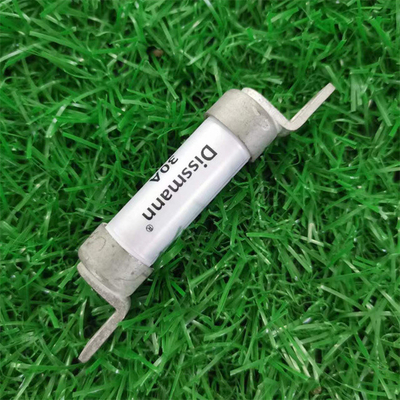

British Standard BS88 fuse
Basic informations of the BS88 series fuse:
<
| BS88-HBD | 240VAC/150VDC (6A-900A) | Equal to the SinoFuse | Equal to the Bussman fuse | ||||
| Size code | Rated current A | I²t(A²Sec) | Power dissipation | Mode | |||
| Pre-arc | total | W | |||||
| HBD-25LEP/HBD-25LET | 25 | 17.60 | 246.0 | 3.96 | LEP/LET | RS308-HG-2G25A | 25LET |
| HBD-32LEP/HBD-32LET | 32 | 31.20 | 442.0 | 4.75 | RS308-HG-2G32A | 32LET | |
| HBD-35LEP/HBD-35LET | 35 | 49.30 | 590.0 | 4.90 | RS308-HG-2G35A | 35LET | |
| HBD-50LEP/HBD-50LET | 50 | 97.60 | 136.5 | 6.80 | RS308-HG-2G50A | 50LET | |
| HBD-63LEP/HBD-63LET | 63 | 176.00 | 2120.0 | 8.95 | RS308-HG-2G63A | 63LET | |
| HBD-80LEP/HBD-80LET | 80 | 293.00 | 3695.0 | 9.70 | RS308-HG-2G80A | 80LET | |
| HBD-100LEP/HBD-100LET | 100 | 580.00 | 7300.0 | 10.20 | RS308-HG-2G100A | 100LET | |
| HBD-125LEP/HBD-125LET | 125 | 597.00 | 7380.0 | 15.80 | RS308-HG-2G125A | 125LET | |
| HBD-160LEP/HBD-160LET | 160 | 1060.00 | 15440.0 | 19.00 | RS308-HG-2G160A | 160LET | |
| HBD-180LEP/HBD-180LET | 180 | 1540.00 | 27950.0 | 21.00 | RS308-HG-2G180A | 180LET | |
Dimensions drawing of the LEP/LET mode BS88 DC150V fuse:
Different types of British Standard BS88 fuse,different size,different voltage and current:
Application of the BS88 fuse:
Used for the Li-ion battery pack for protection
Other fuses and fuse holders you can choose from our factory:
The products list showed as below:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders
