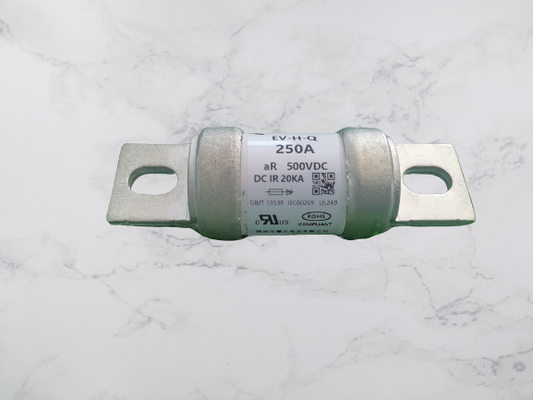

Power Battery Automotive Fuse , Ceramic Bolt Type ESS Fuse

EV battery fuse supplier famous in China

Product basic information EV battery fuse

This EV-H-Q fuse suitable line in rated voltage of DC500V, rated current range of 10A-500A,breaking capacity of AC100KA/DC20KA. Implementation standards are UL248, IEC60268,Compliance with EU and China RoHS Directives.It is suitable for short circuit and backup protection of electric vehicle driving power system, energy storage and power batteries, energy storage capacitors, power conversion systems, frequency conversion controllers,chargers,wires and other vehicle devices and equipment.

Dimension of the EV battery fuse(mm)

Product system code of the EV battery fuse

Conditions of use

Normal use conditions and parameter correction

The fuse works under the normal use conditions described below and does not require additional modification.

When it exceeds the normal use conditions, if it is within the allowable use conditions, it may be necessary to modify some parameters or consult. If it exceeds the range of allowable use conditions, you should consult our company, and conduct work suitability assessment and testing of the conditions.

It is recommended that the current value of long-term flow is not more than 80% of the rated current. Please refer to the above-mentioned temperature evaluation curve for over-temperature use.

Altitude: The altitude of the installation site does not exceed 2000m. If the altitude exceeds 2000m, the rated voltage needs to be reduced. 2000~4000m, the rated voltage is reduced by 90% for every 1000m increase.

Ambient air temperature

Normal use conditions: -5℃～60℃.

Allowable use conditions: -55℃～120℃.
