Product Details:
|
| Material: | Ceramic | Rated Current: | 350A-500A |
|---|---|---|---|
| Rated Voltage: | 1000VDC | Breaking Capacity: | DC50KA |
| Type Of Protection: | AR | Application: | Electric Vehicle Drive Power System, Power Conversion System |
| Keyword: | Storage System Fuse | Executive Standard: | GB13539、IEC60269、UL248 |
| High Light: | Ceramic UL 248 Fuses,AR Category UL 248 Fuses,Semiconductor Fuses TUV Approved |
||

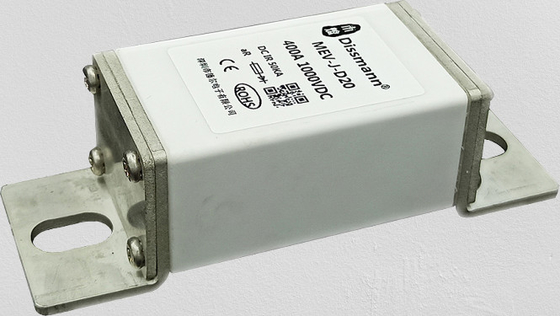

Chinese High voltage DC fuse Dissmann Fuse MEV series suitable apply for charging pile system
Product introduction of the MEV fuse
The MEV series fuse are square tube bolt-mounted quick fuses with small size and high breaking capacity.Become one of our company's hot products,most customer choose it for energy storage system,charging pile,High -voltage cabinet,transformer etc.They can used for rated current of 350A to 500A,rated voltage of AC/DC1000V,breaking capacity up to DC50KA(time constant ≤10ms).
Executive standard of the MEV fuse
The MEV series fuse performance and dimension conform to GB13539,IEC60269,UL248.
Dimension of the MEV fuse
Nomal working conditions
Normal using conditions: -5°C ~ 40°C.
Permitted conditions: -40℃～85℃.
FAQ
Question :What factors affect the life of the fuse?
Answer:Generally speaking, the ambient temperature of the fuse installation place and the impact current in the circuit will affect the life of the fuse. Therefore, we generally consider the pulse current of the customer to select the fuse with the appropriate current.
